The HD Pico is small in size but huge on performance and incorporates a 150 minute lithium ion battery, 20,000 hour LEDs

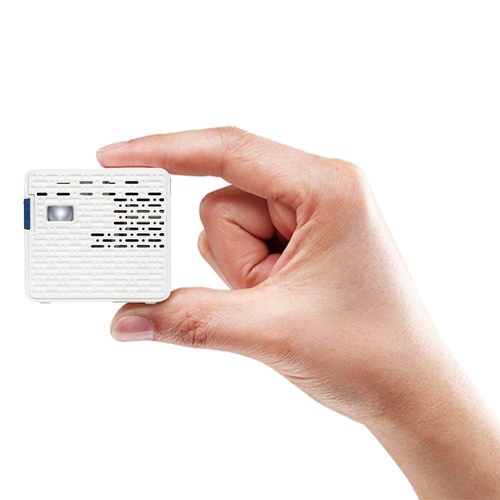

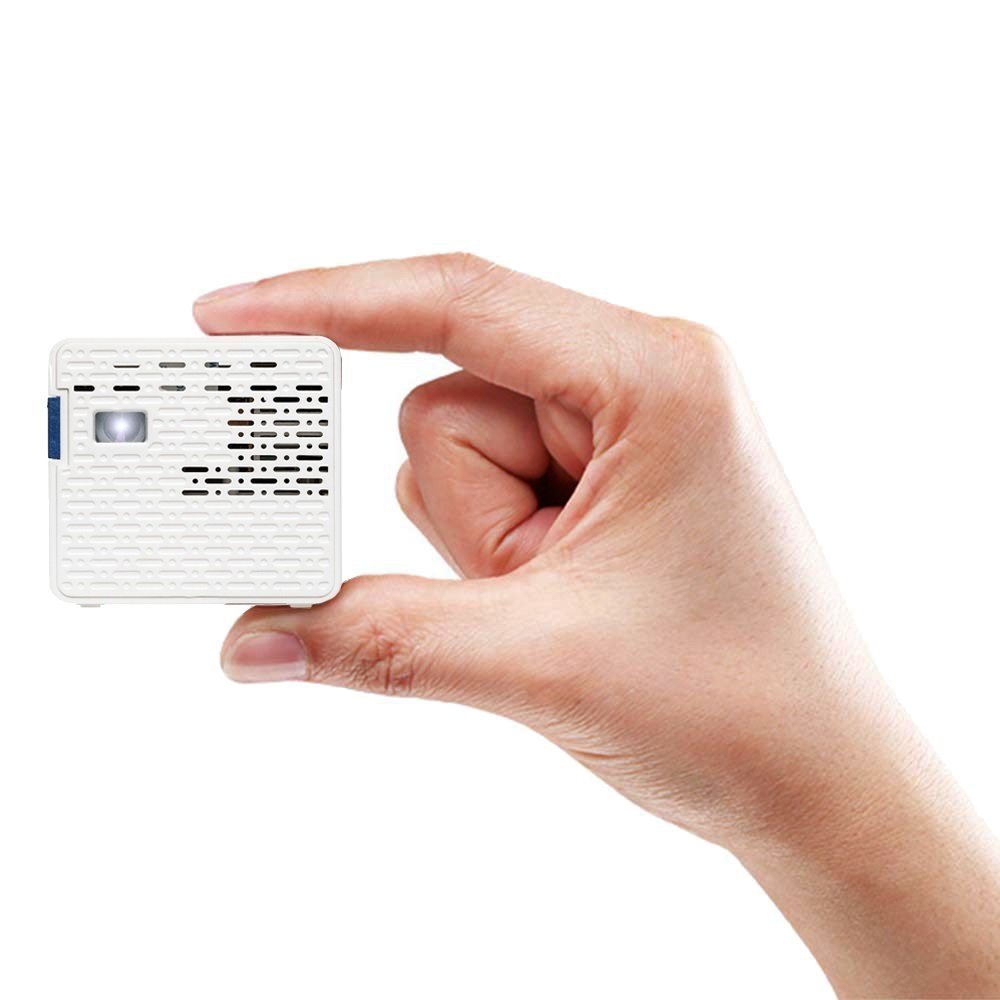

Ultra Small & Portable

The HD Pico integrates an advanced 0.25” 6 micron per pixel imager mated to the latest generation high-efficacy 1mm LEDs that produce an amazing 50 lumens @ 5 watts (lightsource not on screen lumens). The combination of these two technologies coupled with advances in polarized light processing and optical recycling enables the creation of a powerful high-definition optical engine that is not much larger than two quarters stacked together.

20,000 Hour LED Optical Engine

The HD Pico employs high performance LEDs capable of 20,000 hours of operation. The HD Pico can operate for 8 hours per day for almost 7 years before needing a new light source.

Onboard Media Player

The HD Pico is true mobile projection solution. In addition to its digital and composite inputs, the HD Pico includes an onboard media player and digital picture playback capabilities. The powerful onboard media player decodes files directly off a USB stick or Micro SD Card and is capable of handling high resolution videos, movies, and high mega-pixel pictures. This feature allows user to watch movies and view pictures anytime, anywhere.

150 Minute Onboard Lithium Ion Battery

The HD Pico employs a premium 150+ minute lithium ion battery (eco mode) capable of maintaining high capacity even after 1000 charge cycles. The onboard battery means true “Anytime, Anywhere” operation.

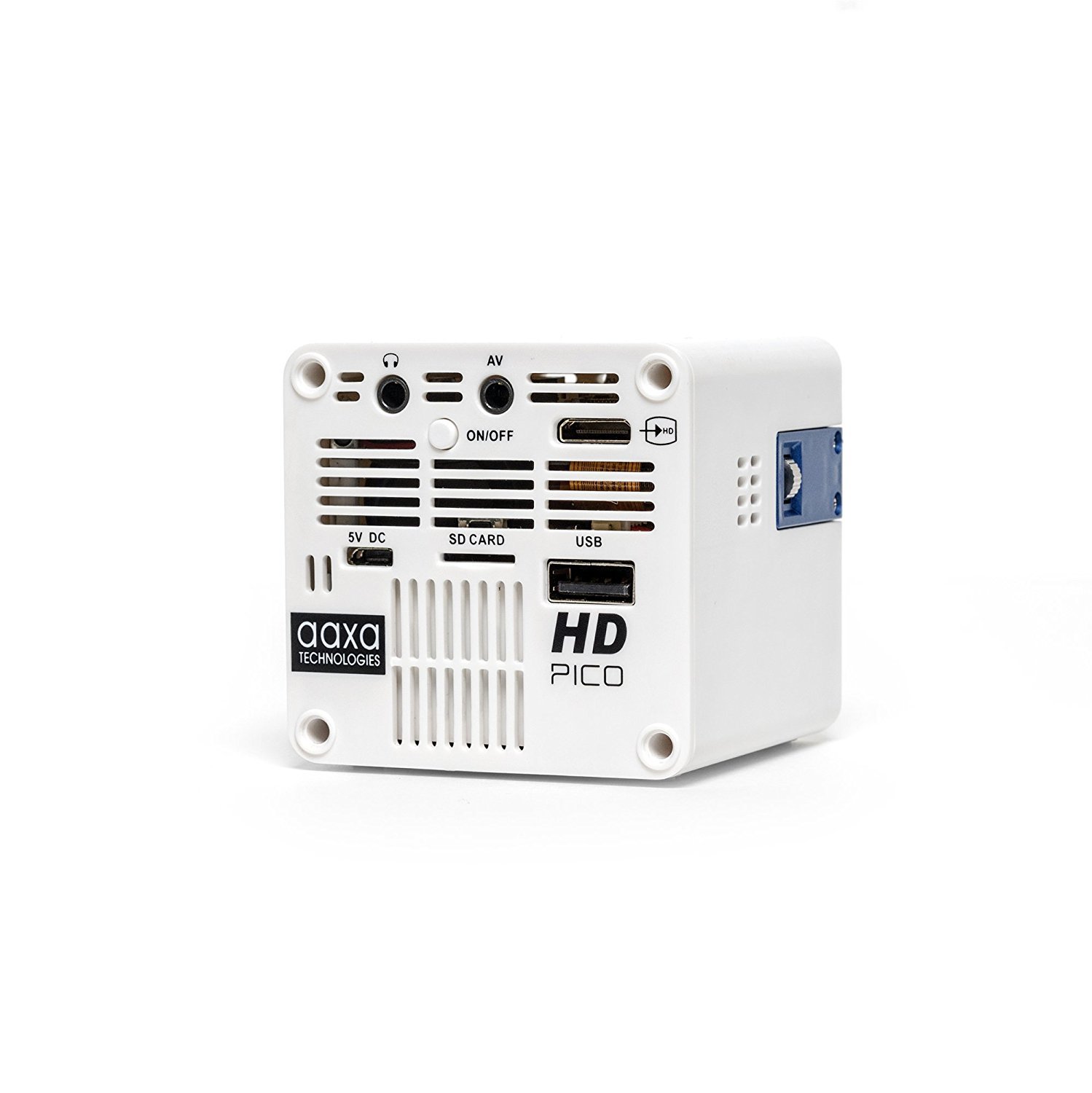

Multiple Connectivity Options

The AAXA HD Pico Projector features an array of inputs including HDMI and Composite video which enables users to connect an array of data sources, including smart-phones, directly to the projector. With the AAXA HD Pico, professional users can deliver presentations, play videos, and watch digital TV all from a single self-powered device.


12 month warranty

Max Input Resolution: 1920 x 1080 (1080P)
Native Resolution: 1280 x 720 (720p HD)
Brightness (Peak): 50 Lumens
Throw Ratio: 1.9:1
Contrast Ratio: 2000:1
Noise: 30dB
Projection Lens: Manual Focus
Projection Image: 10 - 80 inches
Aspect Ratio: 16:9
Light Source: Triple RGB LEDs with Vibrant Color Technology
Life 20,000hrs

Battery Runtime Approximately 150 Minutes
Audio Output 1W Stereo speaker / headphone mini-jack
Color: White
File Playback: USB Memory Stick reader
Micro SD/TF Card, microSD Card Reader (up to 16GB)
Menu Language: English, Spanish, French, German, Chinese
Aspect Ratio Control: 16:9
Dimensions: 2.25" x 2.35" x 2.35"
Weight: 6 oz
Power Consumption: 10W
Supported Formats MP3 / WMA / OGG / WAV / AVI
Conformances: CE, FCC Class A

Video In: Mini-HDMI
Composite A/V (3.5mm Jack)
Audio Out: 3.5mm Stereo Headphone Jack
USB: Full Sized USB 2.0
Memory Card: MicroSD

In the Box: Remote Control
Composite AV Cable
USB Charging Cable
User Manual

Model # KP-102-01
Barcode # 864589000161
Brand Aaxa
Shipping Weight 0.4000kg
Shipping Width 0.125m
Shipping Height 0.075m
Shipping Length 0.100m
Shipping Cubic 0.000937000m3
Unit Of Measure each
Assembled Length 0.080m
Assembled Height 0.080m
Assembled Width 0.080m


By: on 8 October 2017
A bit difficult to operate with a surface pro, but all sorted after guidance from Projectors Australia. Thanks

Very happy with the projector overall

By: on 19 September 2017
Hi! Very happy with the projector overall. Color reproduction isn't great but that's ok wasn't expecting it to be gorgeous given the price point. Size and functionality are �� Lots of fun to use :)

Aaxa HD Pico

By: on 31 July 2017
Cracking little projector - works exactly as described. Service was outstanding. Ordered late Wednesday from Sydney and arrived Friday, right on time for Movie Night at home.
