Producing 900 LED Lumens in "Bright" mode and 500 Lumens in battery mode, the M5 can project up to a 70” screen size in moderately lit rooms and more than a 10 foot screen size in rooms with controlled lighting


Received the Top Ten Review's Silver Award
900 Lumen 4th Gen DLP Optical Engine
Ultra Portable at 6” x 6” x 1.8”
1280x800 Native HD Resolution
20,000 Hour LED Light Source
70 Minute Lithium Ion Battery
Onboard Media Player
Up to 150” Screen Anytime, Anywhere (in low-light conditions)

High Brightness 900 Lumen Optical Engine

The AAXA M5 features an ultra-high efficiency 4th generation solid-state optical engine. At the heart of this engine is AAXA's vibrant color light-emitting-diode technology mated to Texas Instruments DLP imager. The AAXA M5's optical engine produces an amazing 900 LED lumens at peak power.

HD WXGA Resolution

The M5 features the highest in-class native resolution at WXGA (1280x800), otherwise known as "High Definition," and is the base resolution for Blu-Ray movies. Unlike competitors that claim high resolution through digital scaling, the M5's native resolution is 1280x800 pixels and is capable of scaling resolutions up to 1080P.

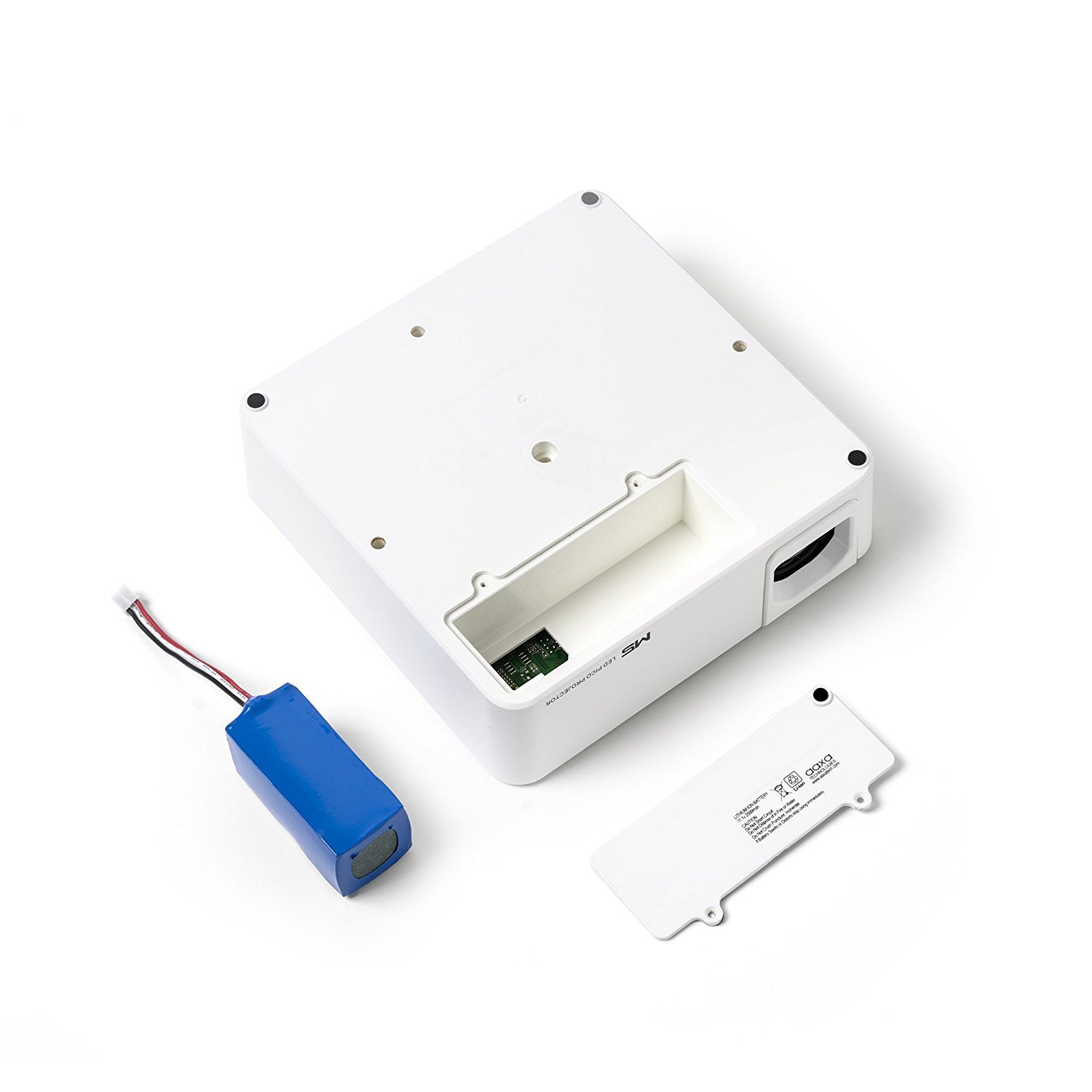

70 Minute Onboard Lithium Ion Battery

The AAXA M5 revolutionizes mobile projection with its onboard lithium ion battery that enables anywhere-anytime projection. Powering this system is a 28-watt lithium ion battery that supports a 70 minute operating time (in eco brightness mode)* and produces over 3 times the brightness of other battery powered projectors. This onboard battery is known as a "premium grade" battery that is designed to retain 85% of its charge over 1000 charge cycles. The AAXA M5 mobile projector now gives anyone the ability to deliver presentations without cords!

All-In-One Media Projector

The AAXA M5 is the ultimate portable projector for business and professional users. It is an all-in-one projection solution that, in addition to its wide array of inputs, includes an onboard media player and digital picture playback capabilities. The powerful onboard media player decodes files directly off a USB stick or Micro SD Card and is capable of handling high resolution videos, movies, and high mega-pixel pictures. This feature allows users to leave the laptop and power cords at home by delivering presentations and videos directly from the projector while fully cordless.

20,000 Hour LEDs

The M5 employs a solid-state LED light-source. Unlike conventional projector lamps, solid-state LEDs last 5-10x longer (up to 20,000 hours), create more vivid colors and are more durable than conventional projector lamps.


12 month warranty

Max Input Resolution: 1920 x 1080 (1080P)
Native Resolution: 1280 x 800 (WXGA)
Brightness (DC): 900 Lumens
Brightness (Battery): 500 Lumens
Throw Ratio: 1.2:1
Contrast Ratio: 2000:1
Noise: 30dB
Projection Lens: Manual Focus
Projection Image: 10 - 150 inches
Aspect Ratio: 16:9
Light Source: Triple RGB LEDs with Vibrant Color Technology
Life 20,000hrs

Battery Runtime Approximately 70 Minutes
Audio Output 2W (x1) Stereo speaker / headphone mini-jack
Color: White/Black
File Playback: USB Memory Stick reader
Micro SD/TF Card, microSD Card Reader (up to 16GB)
Menu Language: English, Spanish, French, German, Chinese
Aspect Ratio Control: 16:9
Dimensions: 6" x 6" x 1.8"
Weight: 1.95 lbs
Power Consumption: 65W
Supported Formats MP3 / WMA / OGG / WAV / AVI
Conformances: CE, FCC Class A

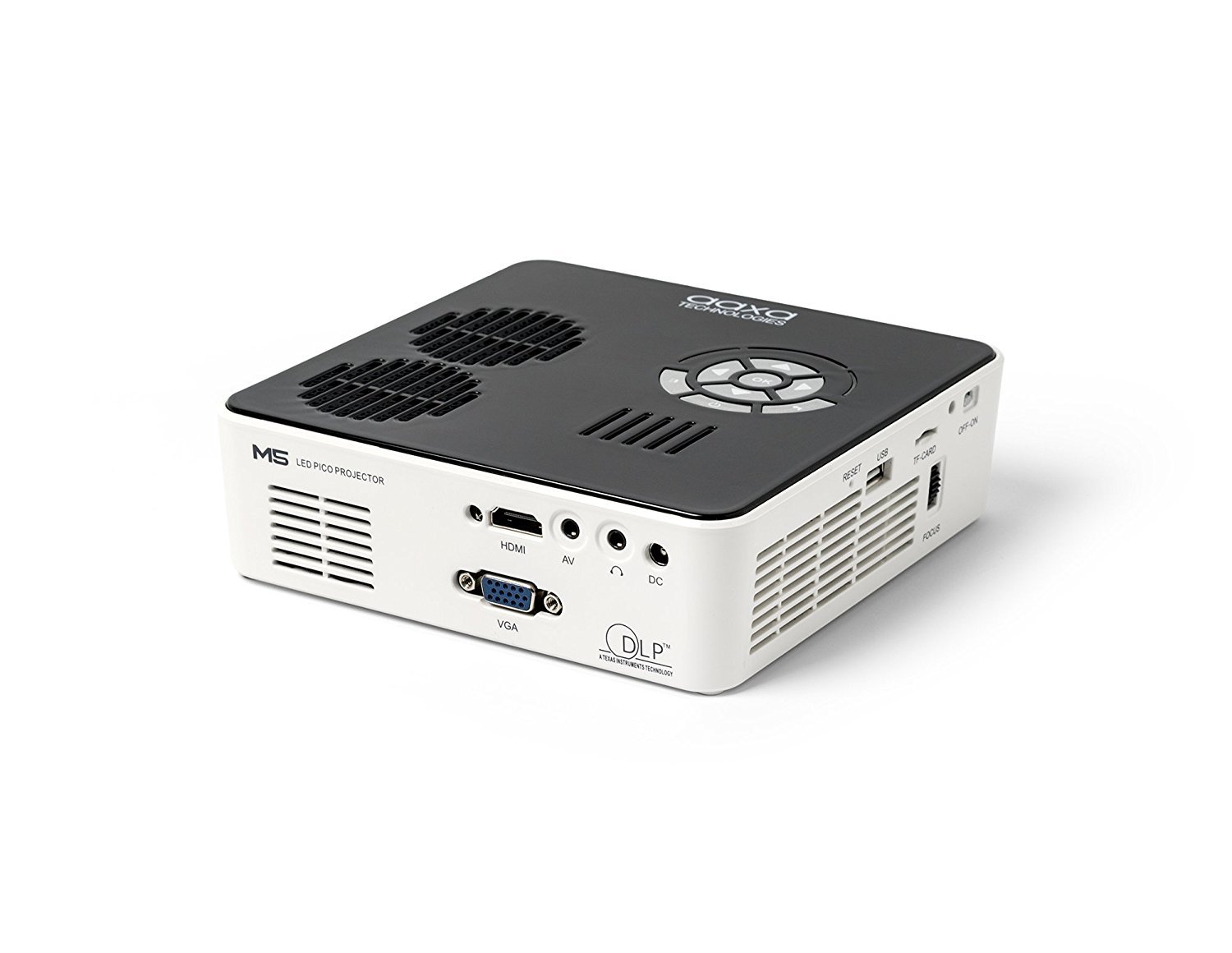

Video In: HDMI
Composite A/V (3.5mm Jack)
Audio Out: 3.5mm Stereo Headphone Jack
USB: Full Sized USB 2.0
Memory Card: MicroSD

In the Box: Carrying Case
Remote Control
Composite AV Cable
Power Adapter
User Manual

Model # MP-500-01
Barcode # 864589000154
Brand Aaxa
Shipping Weight 1.6000kg
Shipping Width 0.340m
Shipping Height 0.070m
Shipping Length 0.235m
Shipping Cubic 0.005593000m3
Unit Of Measure each
Assembled Length 0.210m
Assembled Height 0.080m
Assembled Width 0.130m

Aaxa M5.

By: on 5 March 2019
I don't own a TV, and have used an Epson EB-X31 as a TV and all media player for the past few years, love portability in visual entertainment. I thought the Epson would be in a different league as the M5 to be honest, but the M5 is almost as bright! M5 is very easy to use, and super portable. Battery is okay, but wouldn't plan on no power outlets too much, can plug it into a car using inverter or portable battery. Quality isn't quite what the Epson can do, contrast can be a little high and image tends to be stretched vertically a little bit. Other than that, I love it, use it for parties and camping. Didn't think it would have been this bright, could have gotten away with the M300!

Just what I needed

By: on 5 March 2019
Used for my training staff, easy to carry and great fine image quality. Starts quickly and the battery lasts for enough to finish my presentation. not too heavy, small and still able to carry around easily. Maybe the only downside is that it has no Bluetooth but I ended up connecting my speakers with the cables so still good.

The AAXA is a sturdy pico projector

By: on 2 November 2018
the M5 proved a reliable performer. Thanks in part to the projector’s low throw ratio we could make out details very clear
