BenQ LK936ST 4K Short-Throw BlueCore Laser Projector
The Ultimate Golf Simulation Projector
The Ultimate Golf Simulation Projector
TRUE 4K UHD RESOLUTION - 8.3 million pixels enable you to see every subtle detail on any image
AMAZING COLOR ACCURACY: 92% color accuracy to Rec 709 for home theater level color accuracy on movies and games
5100 ANSI LASER LUMENS: For large images in rooms with ambient light
SHORT-THROW LENS: Fill a 14-foot wide screen from less than 12 feet away
MAINTENANCE-FREE LASER: Dustproof sealed laser engine with 20,000 hours of life at full power
Fixed Short Throw Ratio with Zoom to Prevent Glare and Shadows
With an innovative 0.8 short throw ratio and 1.1x zoom capability, BenQ LK936ST are able to produce larger-than-life images in tight spaces. When installed 14 to 15 feet from the screen, it can project images nearly 10 feet tall. This allows the projector to be placed above and behind the hitting area without creating unsightly shadows and glare. No visual distractions means your practice will be more productive than ever.
Large H/V Lens Shift for Convenient Installation
Sometimes, due to obstruction or obstacles, a projector needs to be mounted off-center. In cases like these the LK936ST lens shift feature can be used to properly align the image, shifting it up to 60% vertically and 23% horizontally relative to the size of the screen. After shifting, 3D keystone correction can be applied to achieve a flawless projected image.
3D Keystone and Corner Fit for Ideal Projection Alignment
To counteract the trapezoid effect that can occur when a projector is installed off-center, BenQ LK936ST offers a three-dimensional keystone correction range up to ±40° on both the horizontal and vertical axes, and that can rotate the projected image clockwise or counterclockwise. Corner Fit control can adjust each corner respectively, for perfectly aligned image geometry.
360° and Portrait Projection Accommodate Different Spaces
BenQ laser technology guarantees reliable projection from any angle. Dynamic installation options such as 360° rotation and portrait applications, allows projection onto ceiling, walls, floors or angled signage.
Digital Shrink and Shift without Distortion
LK936ST’s digital image shrinking and shift lets installers shrink the image to 75% of the original size in 0.5% increments via OSD menu. The image can also be shifted, so installers do not have to reinstall or adjust the projector physically in case the image is not precisely aligned on the desired frame and space.
S/PDIF for 5.1 audio channel surround sound output
LK936ST is equipped with a S/PDIF port that is able to support 5.1 channel surround sound output. The High-definition audio upgrade transforms your projector into a home theater system that offers immersive entertainment experience of home golf, movies, music, gaming, and more.
Integration with Home Automation Control System
LK936ST can be connected to the home automation control system, allowing you to manage and control your projector through your smartphone, tablet or personal computer.
HDBaseT for Uncompressed Transmission Up to 100m and Control
LK936ST is equipped with groundbreaking HDBaseT connectivity combines video, audio, RS-232 and LAN signal control signals from multiple sources including: PCs, laptops, document cameras, Blu-ray and DVDs onto a single RJ-45 cable. This ensures seamless transmissions up to 100 meters.
Revolutionary Laser Technology
BenQ, the world’s No.1 DLP brand, introduces a full line of innovative projectors featuring proprietary DLP high brightness laser technology for large venue applications. Combining high brightness, excellent image quality, installation flexibility and a maintenance-free laser light source, BenQ Laser Projectors enable immersive public displays and innovative visual communication in ways never before possible.
Zero-deviation alignment of laser diodes boosts luminous flux into the light tunnel, improving light efficacy.
Dual synchronized color wheels utilize an additive yellow segment, stimulating precise RGBY spectra for optimal chromatic performance.
Comprising over two million micromirrors that reflect pure light through the color wheel, the DLP chip is hermetically sealed to resist heat for over 20,000 hours without degradation.
4K UHD Image Quality for Flawless Presentation with Subtle Details
LK936ST produces 4K UHD 3840 x 2160 resolution with 8.3 million distinct pixels for each frame to achieve CTA’s standard, and it utilizes the revolutionary 0.47” single-DMD DLP technology to maximize the projector’s sleek, compact profile for immersive environment. With four times the resolution of Full HD 1080p, 4K UHD delivers awe-inspiring clarity and crisply defined details.
Optimize Image Quality with 4K Image Upscaling Technology
To ensure the best image quality, LK936ST adopts the cutting-edge 4K Image Upscaling Technology to further enhance the quality of projected images. LK936ST automatically upgrades the resolution of all projected images to 4K, guaranteeing superb image details.
Cinematic Grade 92% Rec.709 Color Coverage for Optimal Color Performance
LK936ST’s powerful laser projection utilizes a dual color wheel system that covers an unparalleled 92% of Rec.709, the industry-wide standard for color reproduction in HD video and movies. Enjoy golf, movies, and games in perfect color, knowing that what you’re seeing on screen is exactly what the director intended. In Addition, the increased color ratios and pure laser-generated RGBY hues dramatically enhance color saturation and guarantee superior projected image quality compared to lamp projectors.
Exclusive Golf Mode for Vivid Greens and Blues
Up to 5,100 lumens of brightness, LK936ST perfectly reproduce the lush greens and vivid blues of the golf course at home. In some laser projections, color aberration can cause excess blues and purples where they are not intended. To eradicate this issue, BenQ teamed up with color experts to develop and exclusive Golf Mode. A quick setting option, Golf Mode corrects purple fringing using the blue and green colors from popular golf software and allows golfers to immerse themselves in pleasantly natural reproductions of blue sky and green grass.
Brightness (ANSI lumens) 5100
Native Resolution 4K UHD (3840×2160)
Native Aspect Ratio 16:9
Contrast Ratio (FOFO) 3,000,000:1
Display Color 30-bit (1.07 billion colors)
Light Source Laser
Light Source Life a. Normal 20000 hrs
Throw Ratio 0.81 ~0.89
Zoom Ratio 1.1x
Lens F/# =1.83 ~ 1.86 f= 8.6 ~ 9.4
Projection Offset (Full-Height) 0%
Keystone Adjustment 3D, Vertical ± 40 degrees; Horizontal ± 40 degrees; Rotation ± 40 degrees
Lens Shift Vertical -60%~ +60%
Lens Shift Horizontal -23%~ +23%
Rec. 709 Coverage
Picture Modes 3D, Bright, DICOM SIM, Golf, Infographic, Presentation, sRGB, User 1, User 2, Video
Input Lag 33.4 ms (1080p@60Hz)
Resolution Support VGA (640 x 480) to 4K UHD (3840 x 2160)
Horizontal Frequency 15K~135KHz
Vertical Scan Rate 23~240Hz

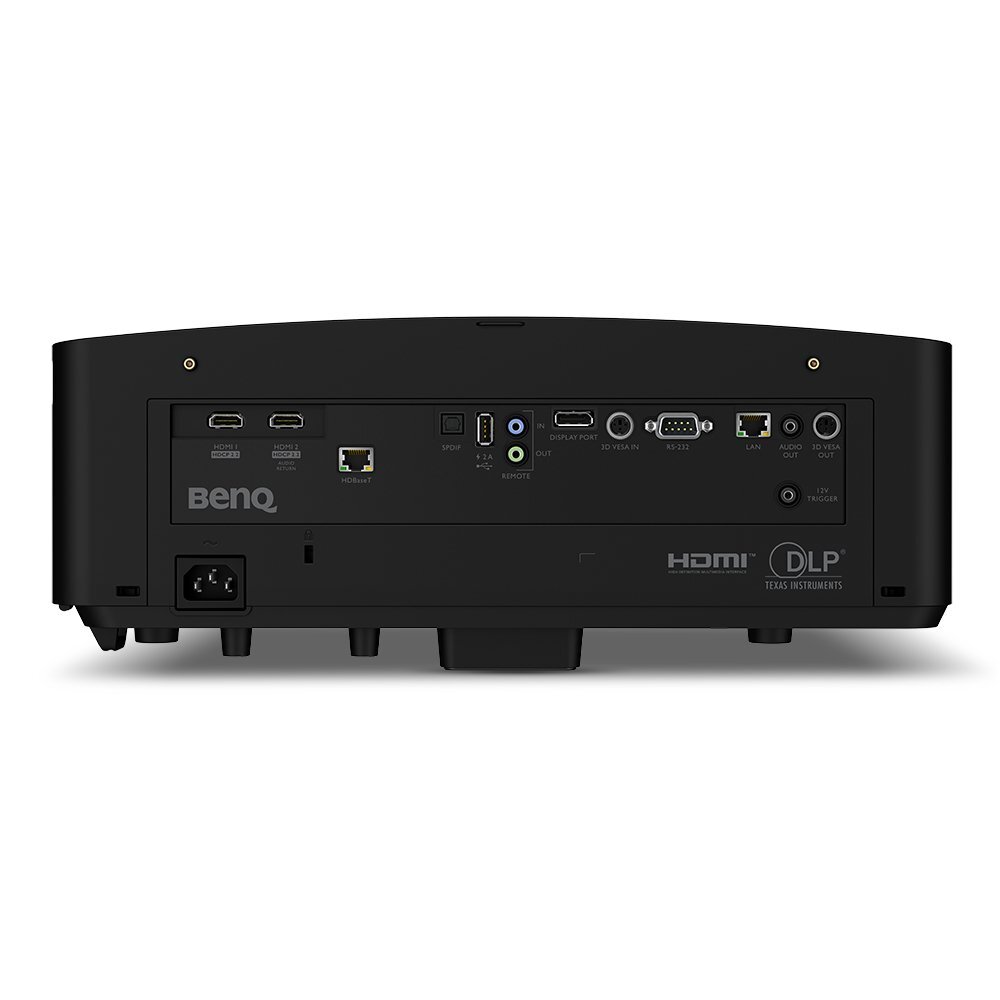

HDMI in (x2), HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2)
Display Port (x1)
LAN (RJ45) (x1)
HDBaseT (RJ45) (x1), Video/Audio
3D Sync in (x1), VESA
3D Sync out (x1), VESA
USB Type A (x1), USB Type A-1 (2.0/Power Supply2.0A)
RS232 in (DB-9pin) (x1)
Wired Remote in (3.5mm Mini Jack) (x1)
Wired Remote out (3.5mm Mini Jack) (x1)
DC 12V Trigger (3.5mm Jack) (x1)
Speaker (x1), 10W
Audio out (3.5mm Mini Jack) (x1)
HDMI Audio Return Yes, ARC, 5.1 channel
S/PDIF Multi-Channel, RAW
Operating Temperature 0~40℃
Power Supply AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V) 440W
Stand-by Power Consumption <0.5W
Network Stand-by Power Consumption <2W
Acoustic Noise (Typ./Eco.)(dB) 40/33
Remote Control w/ Battery RCA011
Power Cord (by region) (Standard), x1 (1.8M)
HDMI cable (Standard), 1.8m
3D Glasses (Optional), DGD5
Installation Guide 1 (8L)
Warranty Card (by region) Yes
Universal Ceiling Mount (Optional), CM00G3
Dimension & Weight
Dimensions (WxHxD) (mm) 416x166x351
Net Weight (kg) 7
Projection System DLP
