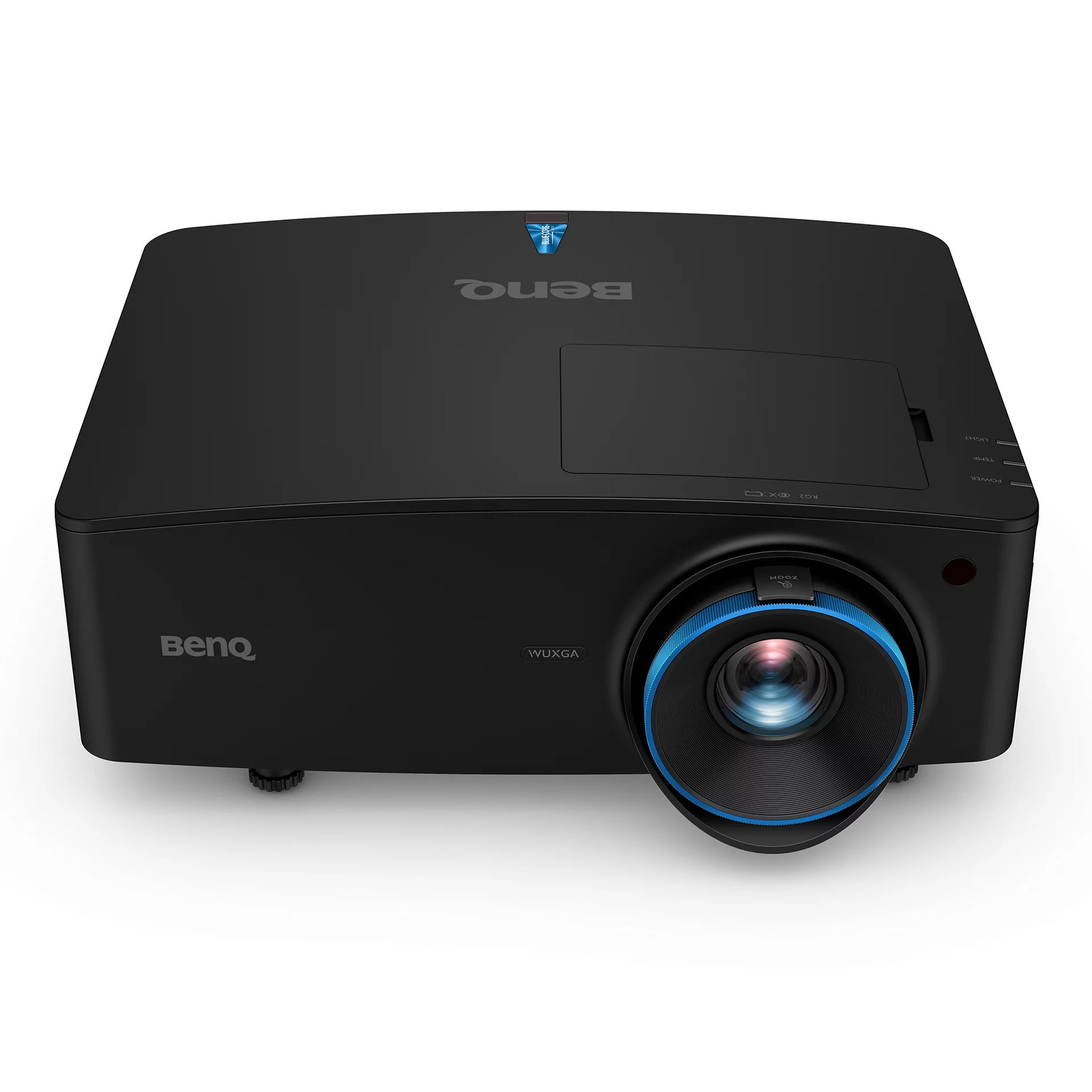

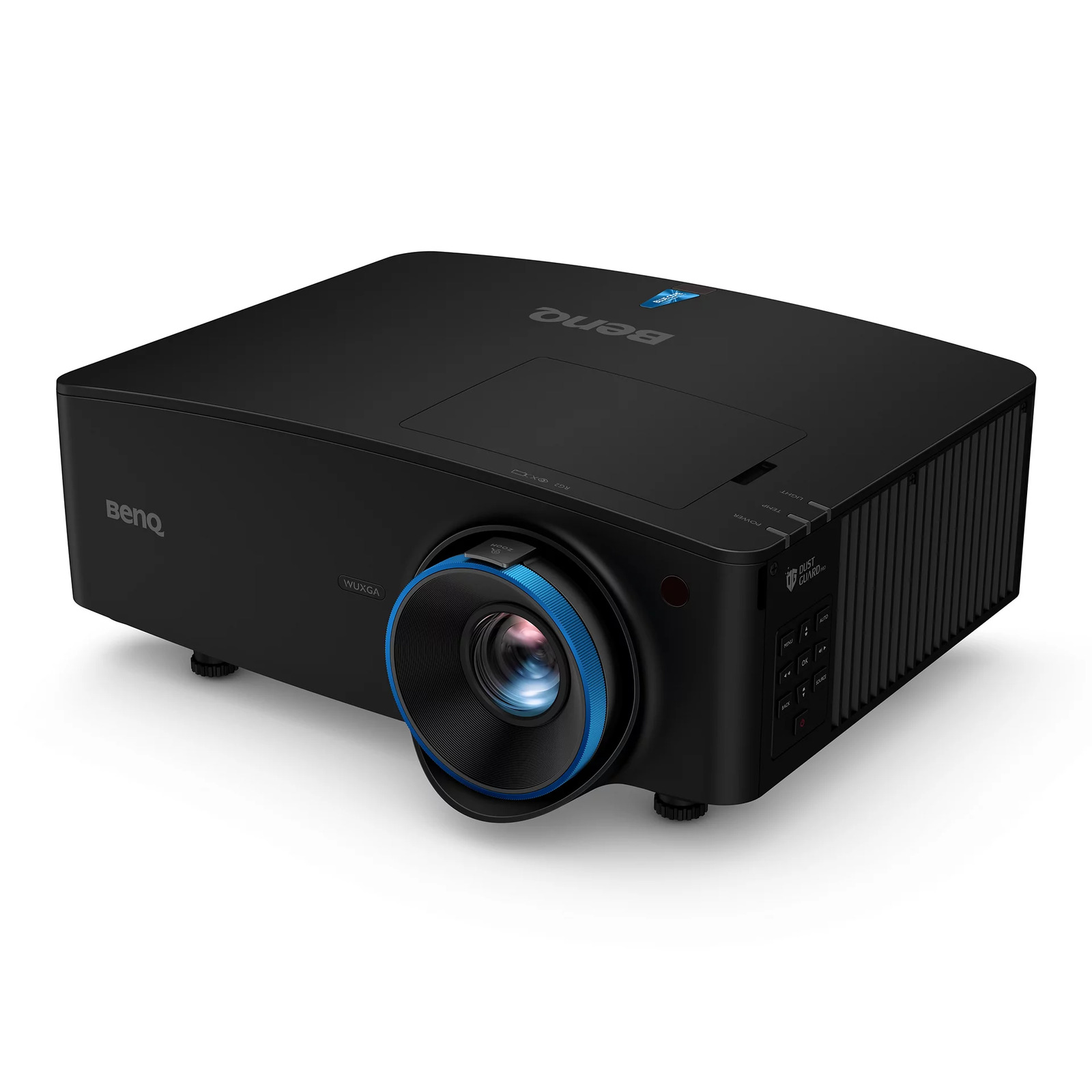

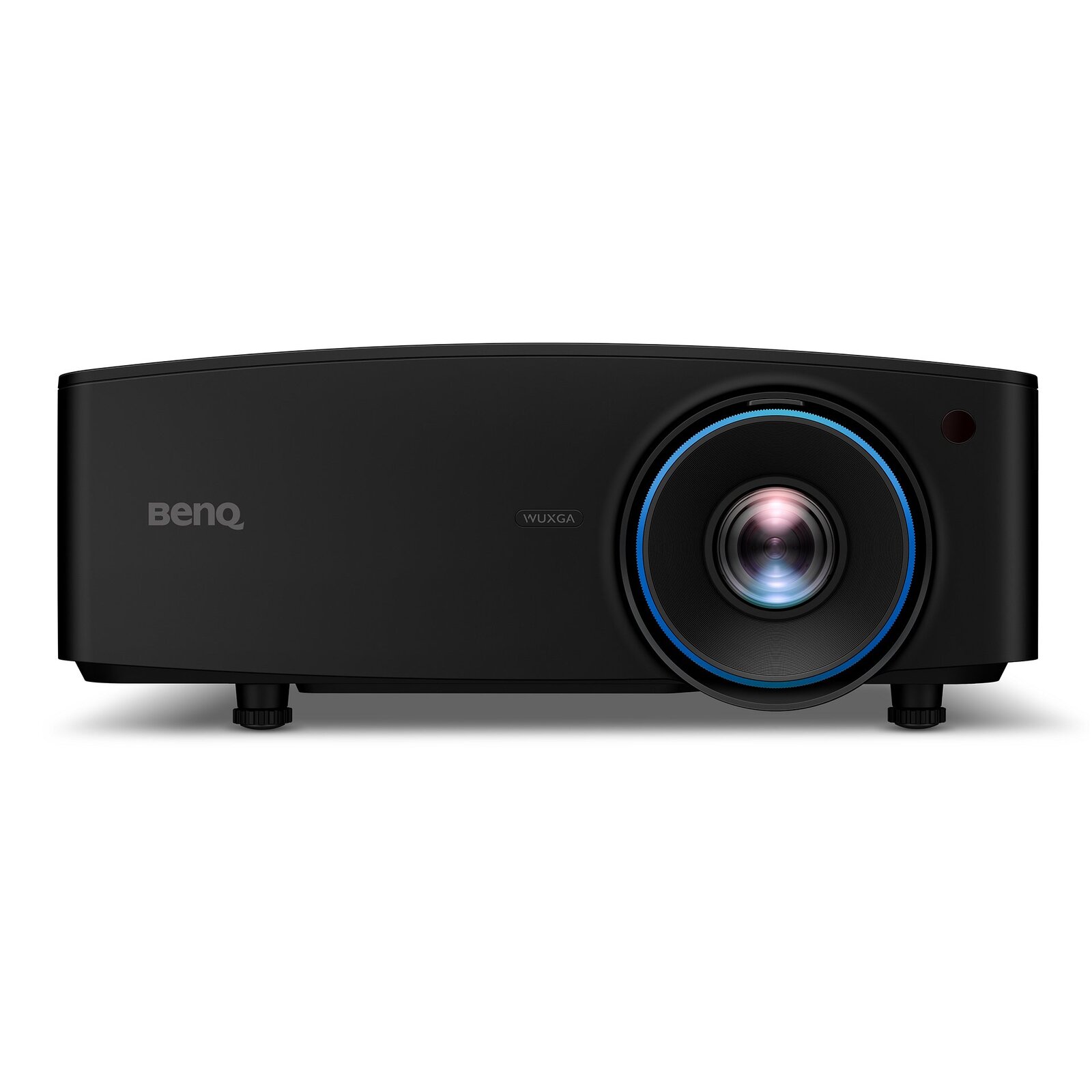

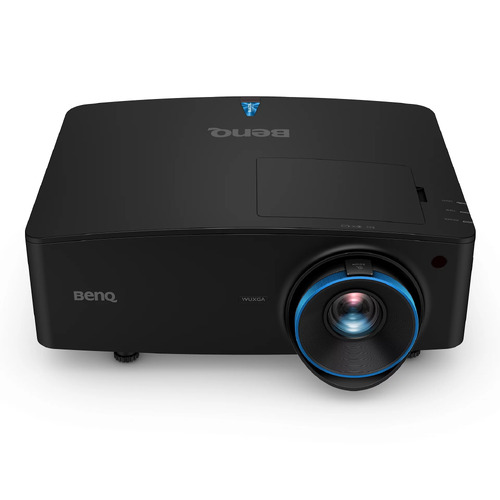

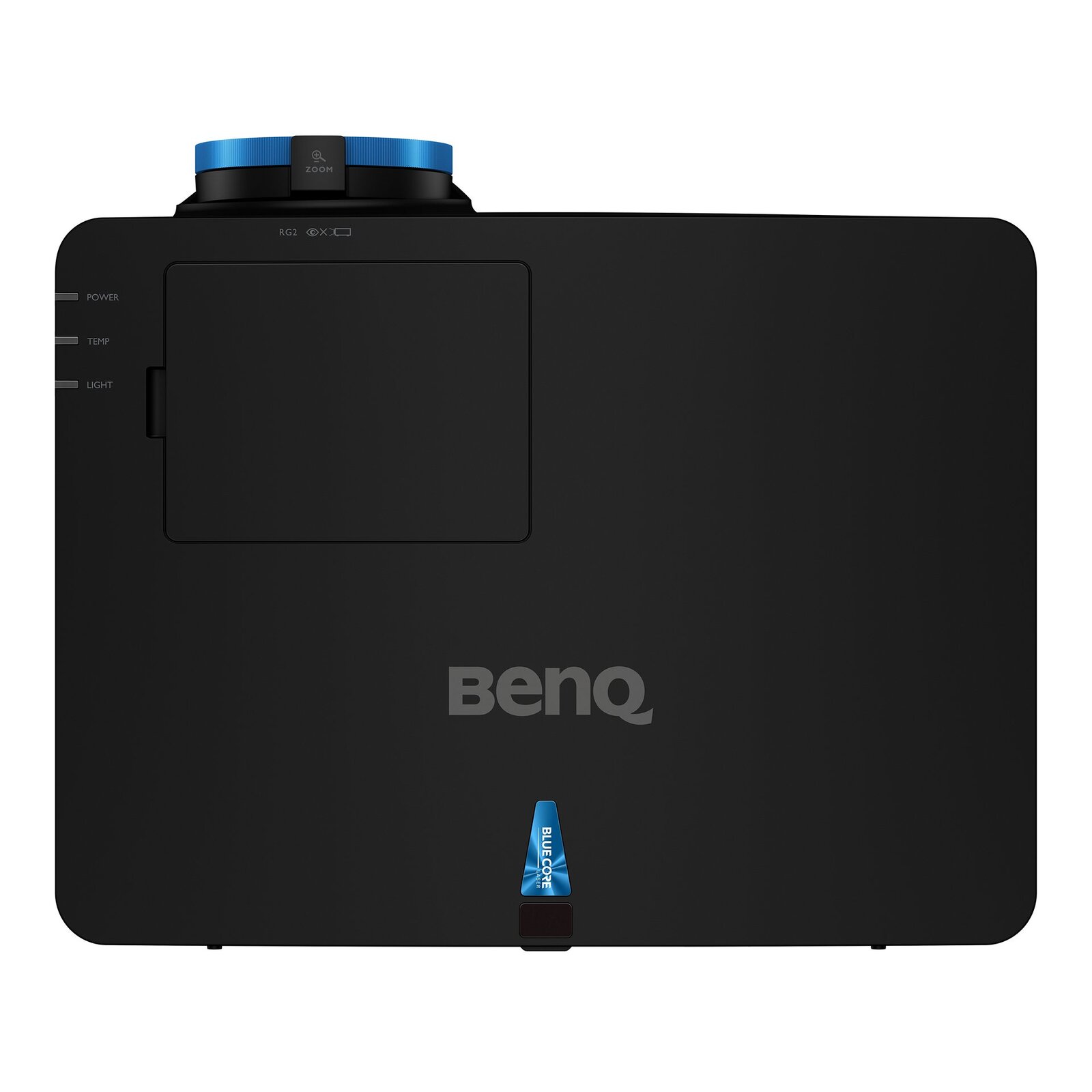

BenQ LU935ST Laser Projector with 5500 Lumens & Short Throw Lens
Hassle-Free Installation - With V/ H lens shift, 2D keys
Revolutionary Laser Technology
The world’s No. 1 DLP brand BenQ introduces its full line of innovative corporate laser projectors with LU935ST, unleashing the WUXGA resolution for professional presentation in corporate settings.
Precision-Aligned High-Output Laser Source
Zero-deviation alignment of laser diodes boosts luminous flux into the light tunnel, improving light efficacy to 5,000 lumens.
Secondary Yellow-Infused Color Wheel
Dual synchronized color wheels utilize an additive yellow segment, stimulating precise RGBY spectra for optimal chromatic performance.
Hermetically Sealed DLP Chip
Comprising over two million micromirrors that reflect pure light through the color wheel, the DLP chip is hermetically sealed to resist heat for over 20,000 hours without degradation.
Short Throw Lens
Ideal for golf/ flight simulation and retail applications, the LU935ST is equipped with a short-throw lens that will fill up a 12 foot wide screen from less than 10 feet away. This enables you to place the projector so that you can stand closer to the screen without casting a shadow

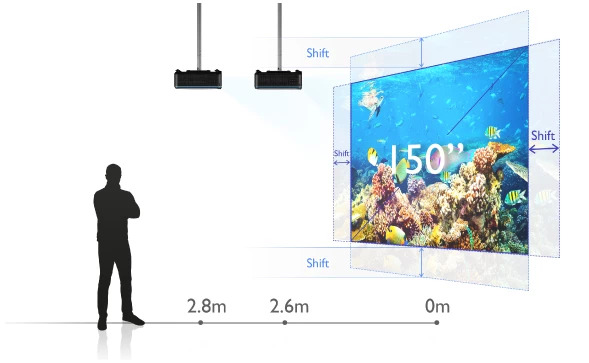

Zoom Lens and Lens Shift for mounting flexibility
The LU935ST features both a zoom function and vertical/horizontal lens shift to enable you to mount the projector in a protected area, while still enabling you to have a fully aligned image on your screen. You can move the image up and down up to 60% of the screen height – and adjust the horizontal position by 23% for an off-axis mounting location. The zoom lens can enlarge or reduce the image to enable you to move your mounting position as much as a foot on a fourteen foot wide screen.
Digital Keystone and Corner Fit
Digital Keystone enables you to easily correct for vertical projector tilt, or if the projector is not square to the screen. With a few simple taps on the remote, you can adjust the image so that it properly fills your screen. BenQ’s corner fit technology enables you to identify and adjust the images to stretch or pull back the image to the four corners of your screen.
Digital Shrink Adjustment
Digital Shrink enables you to mount the projector farther back from the screen and digitally adjust the image in 0.5% increments to correctly fit the screen. This is especially helpful in a golf simulator so the projector can be placed safely behind the hitting area.
360 Degree Installation for Portrait or Custom screens
The BenQ LU953ST can be mounted in any position, including sideways for a portrait image, or vertically for floor simulators without compromising performance or reliability. This is ideal for flight simulators or other specialty environments with unconventional screen locations.
White Balance Adjustment
BenQ exclusive white balance adjustments can reduce white balance variables between images projected from different projectors to such a low level that the most people cannot see any difference. This allows for seamless and accurate picture quality without disruptive discrepancies.
IP5X DustGuard™ Pro for Superior Dustproofing Sealed Engine
BenQ LU935ST laser projector is designed with sealed laser modules and enclosed light engines to protect the DMD chip, color wheel sensor, laser bank, and other optical components. It effectively eliminates color wheel sensor failure, visible spots on the image and color decay to significantly reduce service costs and downtime. The design has passed the dust chamber test standard JIS Class IP5X for superb dust protection.
Anti-Dust Accumulation Sensor to Resist Dust Buildup
Incorporating a color wheel sensor with an ingenious anti-dust buildup features, BenQ LU935ST prolongs optimal performance by repelling dust that can accumulate on traditional sensor to block the IR signal and cause flickering, abnormal colors, or even shutdown.
HDMI 2.0 for Supreme Image Quality
LU935ST come with HDMI 2.0 ports that users can now effortlessly project content with much less friction and enjoy greater brightness and contrast range than SDR.
Wired Remote Control
Wired Remote Control offers projector installers and IT managers extra set-up convenience and ease of operation. The added wired control functionality makes the device a dependable choice for projector installation adjustment.
Remote Control Projector ID Setting for Independent Control
Installers and IT managers can assign a specific remote control ID to each projector, avoiding signal interference and unintentional changes when installing multiple projectors in a venue.
Brightness (ANSI lumens) 5500
Native Resolution WUXGA (1920x1200)
Native Aspect Ratio 16:10
Contrast Ratio (FOFO) 3,000,000:1
Display Color 30-bit (1.07 billion colors)
Light Source Laser
Light Source Life 20000 hrs
Throw Ratio 0.81 ~ 0.89
Zoom Ratio 1.1x
Lens F/# = 1.83 ~ 1.86,f = 8.6 ~ 9.4 mm
Projection Offset (Full-Height) 0%
Keystone Adjustment 2D, Vertical ± 30 degrees; Horizontal ± 30 degrees
Lens Shift Vertical Vertical: -60%~ +60% Horiztonal : -23%~ +23%
Rec. 709 Coverage 92%
Picture Modes 3D, Bright, Golf, Presentation, sRGB, User 1, User 2
Input Lag 33.4 ms (1080p@60Hz)
Resolution Support VGA (640 x 480) to 4K UHD (3840 x 2160)
Horizontal Frequency 15K~102KHz
Vertical Scan Rate 23~120Hz

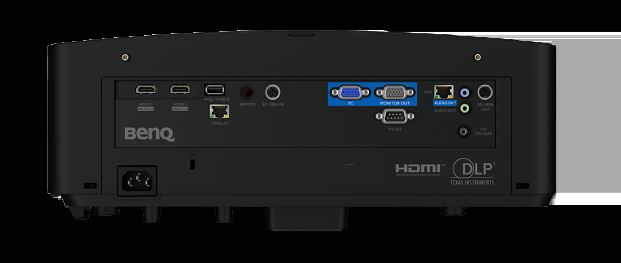

PC in (D-sub 15pin) (x1), PC in-1
Monitor out (D-sub 15pin) (x1)
HDMI in (x2), HDMI-1 (2.0a/HDCP2.2), HDMI-2 (2.0a/HDCP2.2)
LAN (RJ45) (x1)
HDBaseT (RJ45) (x1), Video/Audio
3D Sync in (x1)
3D Sync out (x1)
USB Type A (x1), USB Type A-1 (2.0/Power Supply1.5A)
RS232 in (DB-9pin) (x1)
Wired Remote in (3.5mm Mini Jack) (x1)
DC 12V Trigger (3.5mm Jack) (x1)
Speaker (x2), 10W
Audio in (3.5mm Mini Jack) (x1)
Audio out (3.5mm Mini Jack) (x1)
Operating Temperature 0~40℃
Power Supply AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V) 440W
Stand-by Power Consumption <0.5W
Network Stand-by Power Consumption 2W
Remote Control w/ Battery RCA011
Power Cord (by region) x1 (1.8M)
3D Glasses (Optional), DGD5
Installation Guide 1 (8L)
Warranty Card (by region) Yes
Universal Ceiling Mount (Optional), CM00G3
Dimension & Weight
Dimensions (WxHxD) (mm) 416x166 x 351 mm
Net Weight (kg) 7
Projection System DLP
