Best Choice at Class-leading Value for Small-medium Space

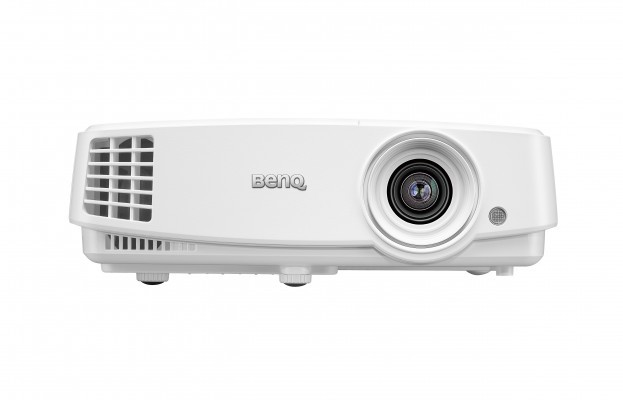

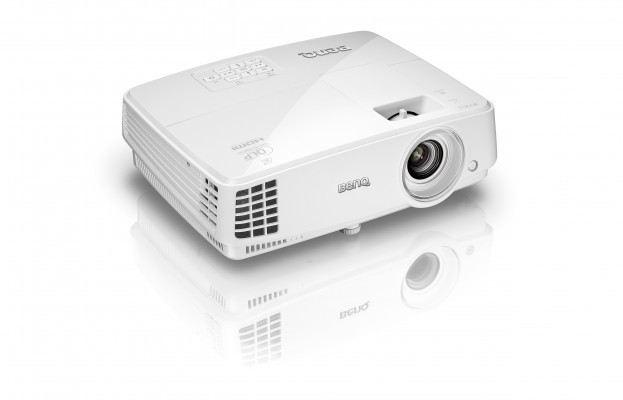

Featuring a brightness of 3200 ANSI lumens and a high contrast ratio of 10000:1, the cost-effective and eco-friendly MH530 offers a stunning full-screen presentation with the finest details regardless of the ambient light level.
Offering lower TCO and optimized projection through dynamic power saving, uncompromised brightness, exquisite picture quality and optimized lamp life –SmartEcoTechnology has perfected what a DLP projector can do. With this innovation, schools and corporates are able to save up to 70% of lamp power consumption and lower maintenance costs through dynamic power saving features while bringing an ultra-vivid viewing experience into every presentation.
The SmartEco Mode, which cleverly adjusts the lamp power to maximize power saving by delivering the best contrast and brightness performance using only as much light as needed.
0.5W in Standby Mode
When inactive, the MH530 keeps power consumption to a minimum with 0.5W standby power, achieving what was once a challenge for ealier projector models. This technological advancement in energy saving certainly helps extend the projector lamp life and lower energy costs.
BenQ MH530 is built with latest DLP® technology to support 3D functionality, allowing schools to bring an immersive learning experience to their students with a simple preparation of 3D glasses and 3D content from your blu-ray player.
Perfectly Long Lasting Picture Quality with DLP Projection Technology
Digital Light Processing (DLP), awarded 2015 Academy Award of Merit (Oscar® statuette), is the leading projection technology used in 90% of world’s digital cinemas and 100% of IMAX theaters. With DLP dominating the worldwide projector market with over 50% share, BenQ is today the #1 bestselling DLP
The incredibly durable micro-mirrors of the DLP chip and the nearly-sealed DLP engine design mean that BenQ DLP Projectors stand the test of time without any loss in picture quality. Eliminating dust buildup and heat damage, BenQ projectors shine year after year and look as good as new with a simple lamp change.
Critically acclaimed for industry-leading high contrast, BenQ DLP Projectors also produce the most crisply defined sharpness for crystal-clear details and legible text by maximizing the fill ratio of individual pixels and employing exclusive BenQ SmartEco™ Technology.
|Native Resolution||1080p (1920 x 1080)|
|Brightness (ANSI Lumens)||3200AL|
|Contrast Ratio||10000:1 |
|Display Color||1.07 Billion Colors|
|Aspect Ratio||Native 16:9 (5 aspect ratio selectable)|
|Throw Ratio||1.47-1.62 (95" ±3% @ 3.1m)|
|Image Size (Diagonal)||70"~150" / 300"|
|Lamp Mode (Normal/Economic/SmartEco/LampSave)*||4000/6000/6500/10000 hours|
|Keystone Adjustment||1D, Vertical +/- 40 degrees|
|Projection Offset**||116% ±5%|
|Resolution Support||VGA(640 x 480) to WUXGA_RB(1920 x 1200) * RB= Reduced blanking|
|Vertical Scan Rate||23 ~ 120 Hz|
|HDTV Compatibility||480i, 480p, 576i, 576p, 720p, 1080i, 1080p|
|Video Compatibility||NTSC, PAL, SECAM|
|Weight (Without Packing / With Packing)||1.96KG|
|Dimensions (W x H x D mm)||283x95x222 mm|

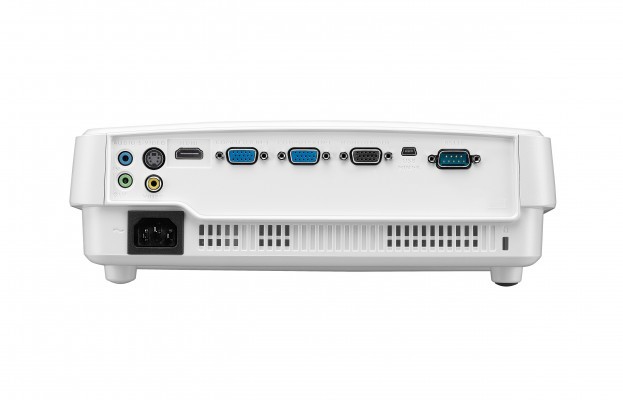

|Interface||Computer in (D-sub 15pin) x 2 (Share with component)
Monitor out (D-sub 15pin) x 1 (Only support Computer 1)
Composite Video in (RCA) x 1
S-Video in (Mini DIN 4pin) x 1
HDMI x 1
Audio in (Mini Jack) x 1
Audio out (Mini Jack) x 1
Speaker 2W x 1
USB (Type mini B) x 1 (Download & page/down)
RS232 (DB-9pin) x 1
IR Receiver x 1 (Front)
|Power Consumption||Normal 270W. Eco 220W. Standby <0.5W|
|Power Management Function||Automatic power off after 20 minutes without a display source.|
|Audible Noise (Normal/Economic Mode)||33/28 dBA (Normal/Economic mode)|
|Power Supply||AC100 to 240 V, 50 to 60 Hz|
|3D Support and Compatibility||PC: 120Hz Frame Sequential 3D for resolutions up to WXGA, PC: 60Hz Top-bottom 3D for resolutions up to SXGA+
Video: 60Hz Frame Sequential 3D for resolutions up to 480i
|Picture Modes||Dynamic / Presentation / sRGB / Cinema / (3D) / User 1 / User 2 |
|On-Screen Display Languages||Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages)|
|Accessories (Standard)||Remote Control w/ Battery
Power Cord (by region)
User Manual CD
Quick Start Guide
Warranty Card (by region)
VGA(D-sub 15pin) Cable

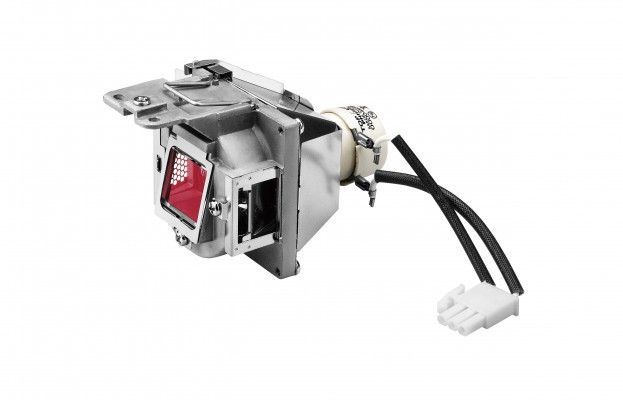

|Accessories (Optional)||Spare Lamp Kit P/N: 5J.JFH05.001
Ceilling Mount P/N: 5J.J2K01.001
3D Glasses P/N: 5J.J0T14.011
Lamp in this product contains mercury.
** Default mode is Presentation. When 3D is on, Picture Modes only shows 3D. When 3D is off, it is not shown in Picture Modes.
|Unit Of Measure||each|
