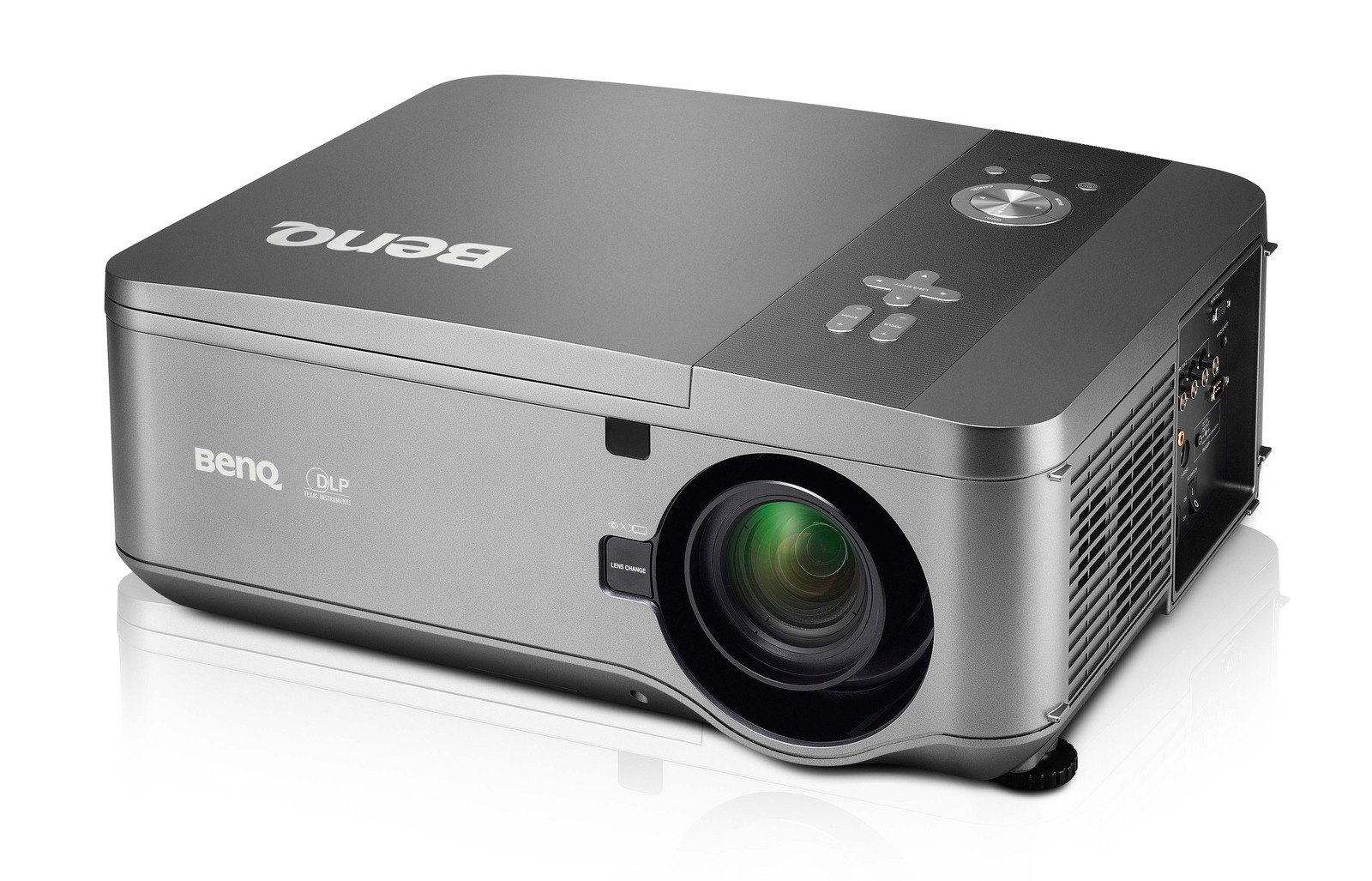

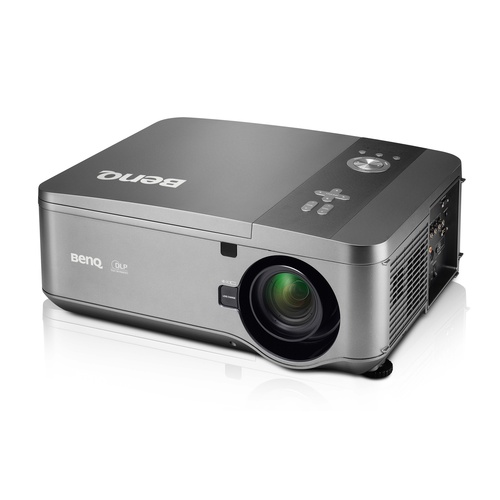

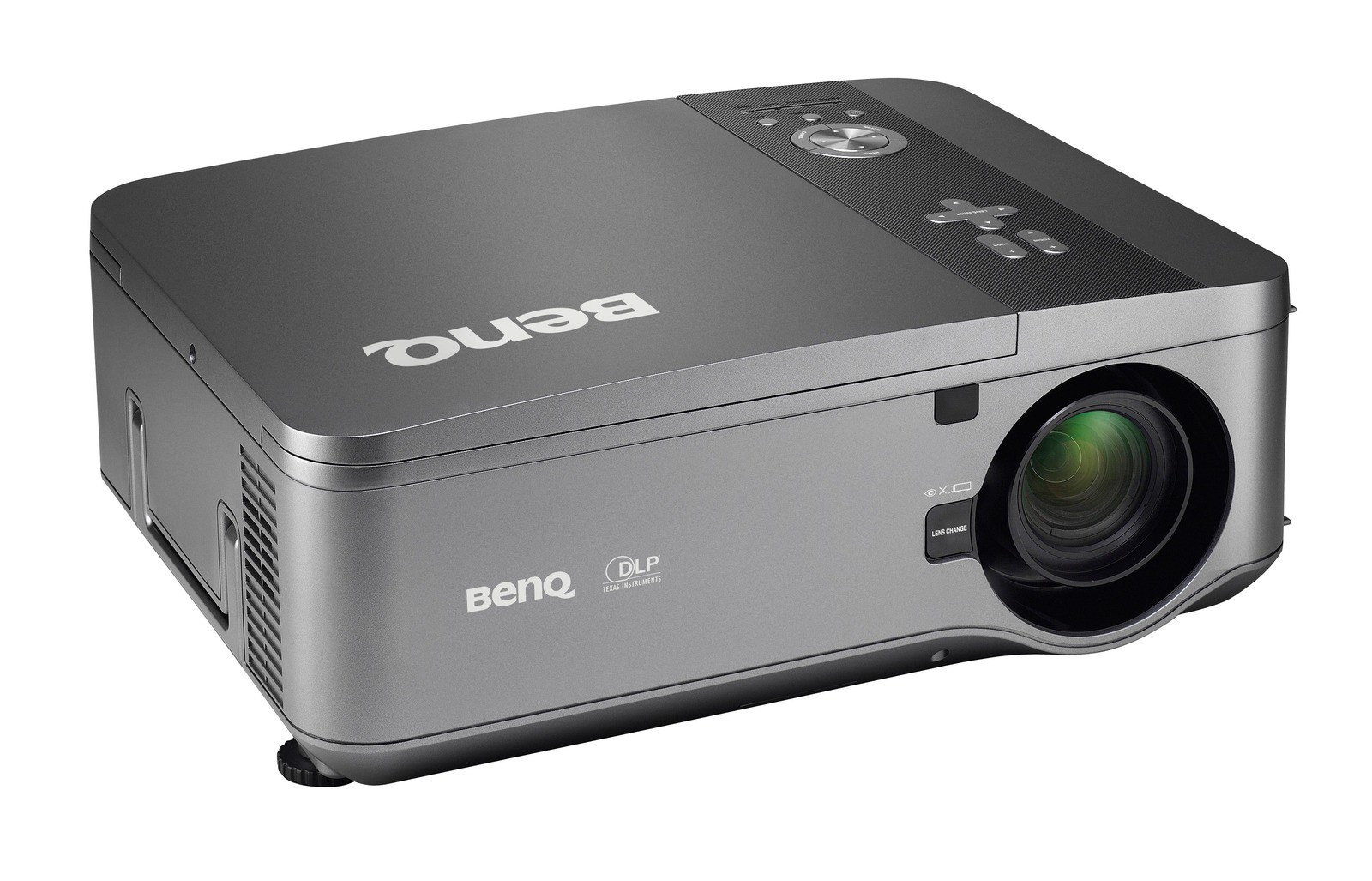

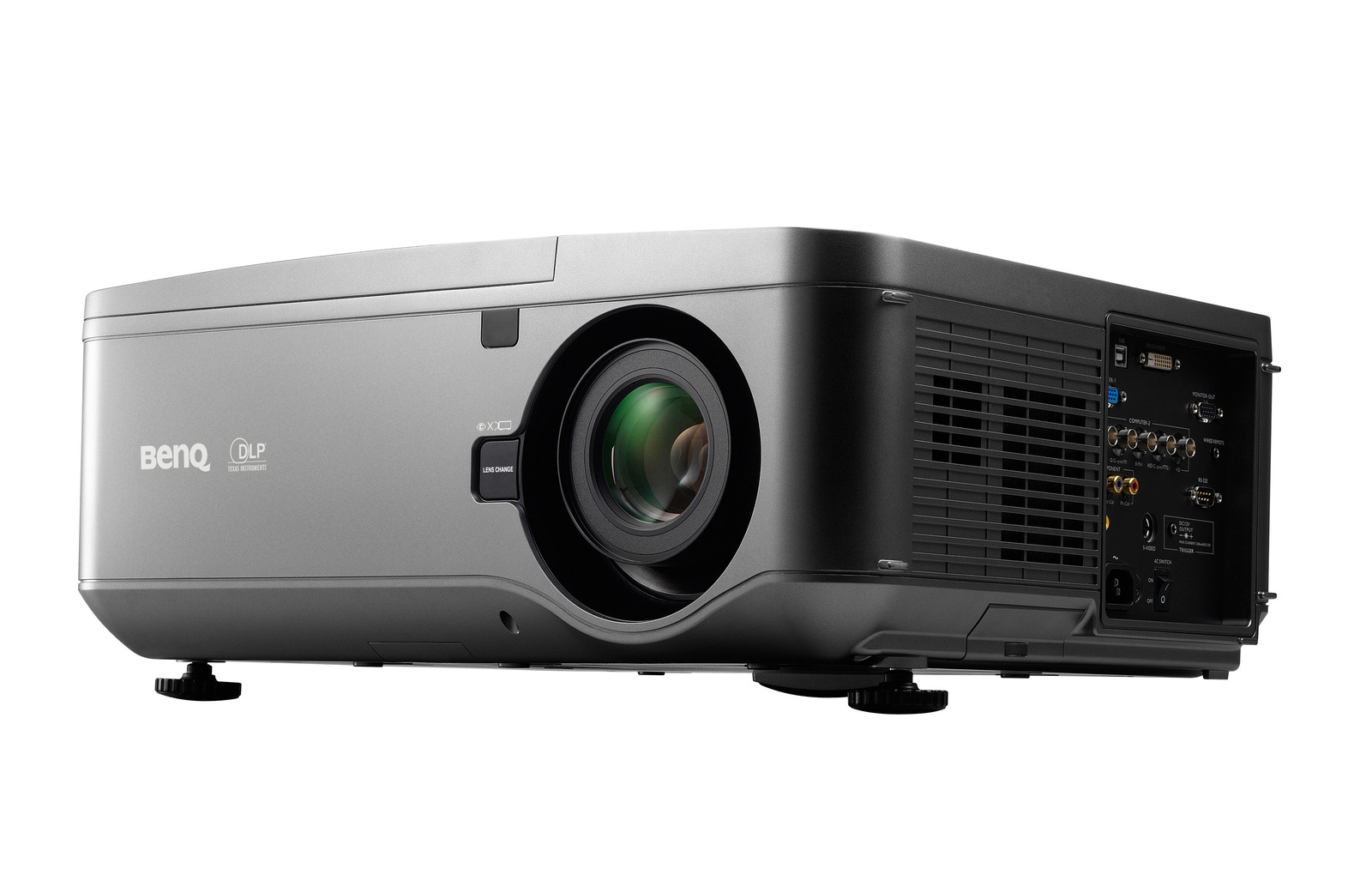

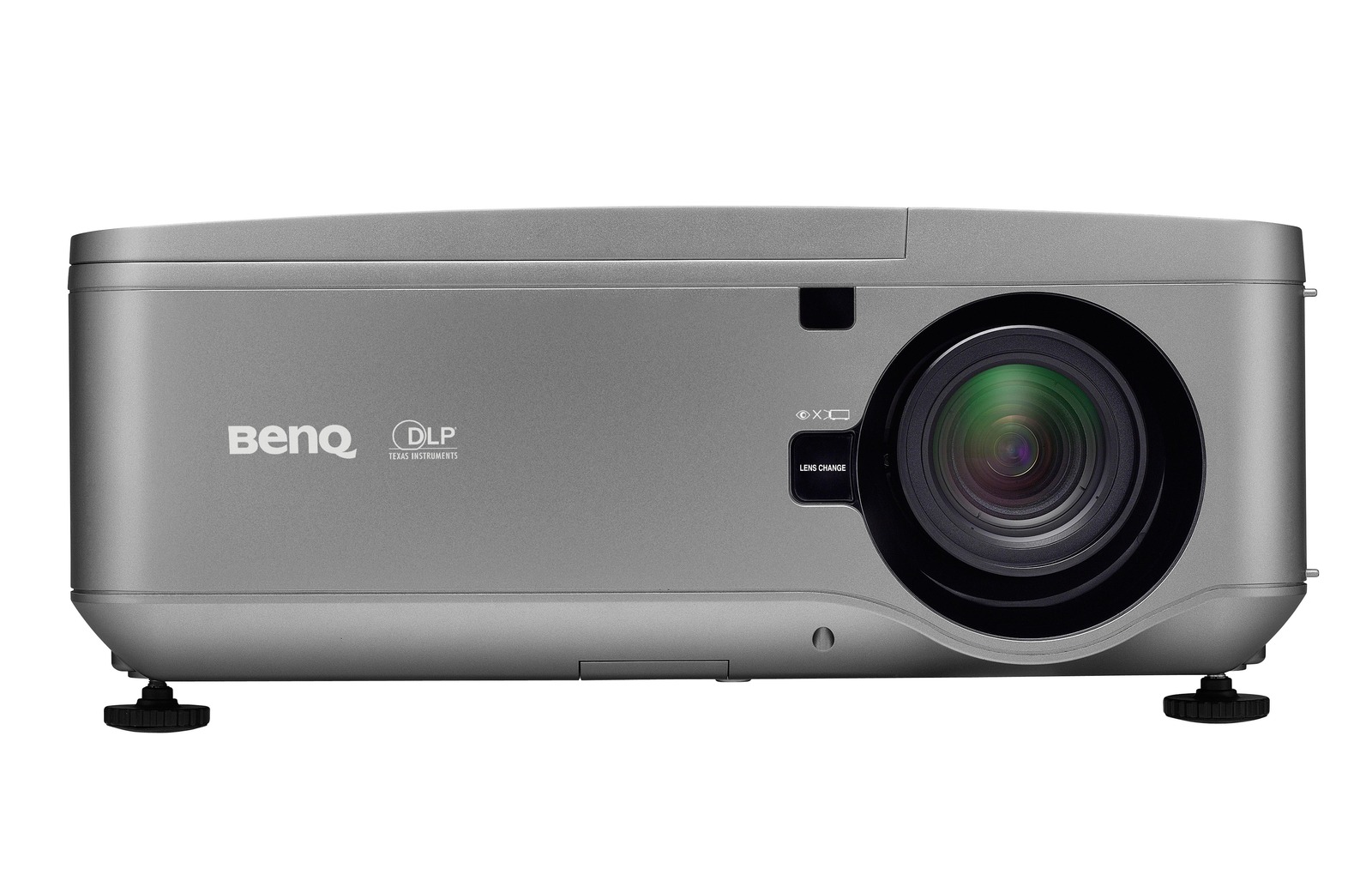

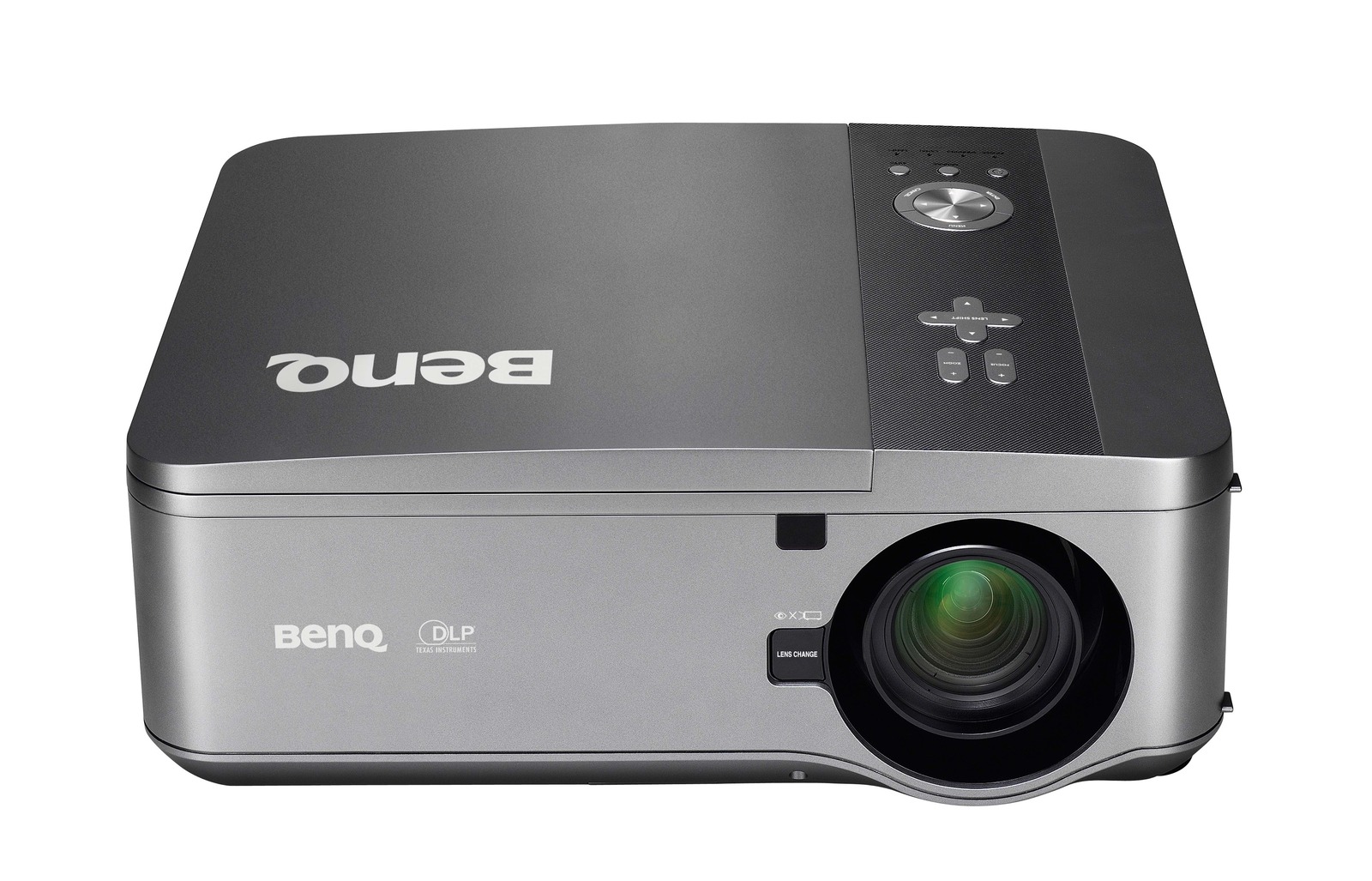

With seven types of optical lenses available and the functions as motorized zoom and focus and motorized lens shift, BenQ PW9500 offers great installtion and set-up flexibility. It also gives you brilliant image performance with ultra high brightness, high contrast ratio and high resolution. Interchangeable color wheel system gives you a choice to boost mid-tone colors for a more life-like picture.
To support optimal projector installation and performance in a wide range of environments, seven types of optical lens ranging from short-throw to long-throw lens are available with glass materials for better focus and large apertures for a brighter image. The lenses are made in Japan to ensure the highest quality.
360° Tilt Projection Capability
The flexibility to set up the projectors tilted 360° in either direction around the vertical opens up new possibilities to adopt projector use in any form of space – ceilings, walls or floors of places such as shops, galleries and theaters. This feature also makes possible innovative audiovisual applications, such as creating interactive floor projections.
Motorized Zoom and Focus
A motorized big zoom lens delivers a remarkable range of throw distances with simple remote control, greatly improving the flexibility of projector installation as well as lens adjustment and replacement in any venue. Not only extra ceiling mounting or reconstruction work can be avoided but also any inconveniences and safety concerns caused by manual labor – saving time, money and effort in time.
Motorized Horizontal/Vertical Lens Shift
Lens Shift is a feature often used to overcome projector installation or placement challenges. With the motorized horizontal/vertical lens shift feature, projection adjustments to the projected image can be easily completed with a remote control, whether the projector is placed on a table or mounted in the ceiling.
A complete set of input options from digital and analog to networking control connection terminals gives presenters the freedom to utilize various tools and devices to effortlessly enrich each and every presentation. For installers and projector managers, with integrated RJ45 connection, multiple projectors can be managed readily over LAN.
Brilliant Image Performance
With ultra high brightness powered by BenQ’s unique dual lamp design, presenters are able to present with large-sized projection without losing clarity or the attention of their audience. With two lamps at work, presentations can be carried on with optimal brightness even when one lamp goes out, ensuring sharply detailed, interruption-free presentations under just about any light conditions.
High Contrast Ratio
The combined expertise of BenQ’s projector know-hows delivers an astounding 2,800:1 contrast at the highest to significantly improve the black level for superbly rendered image definition.
BenQ’s exclusive 3D color management tool ensures 100% uncompromised color customization with the freedom to independently fine-tune the hue, grain and saturation levels of all six primary colors (R/G/B/C/M/Y).
Equipped with BenQ’s four-segment color wheel made in collaboration with advanced BrilliantColor™ technology from Texas Instruments, the projectors offers the truest, brightest and liveliest colors. A high-speed, six-segment wheel is available to further boost mid-tone colors to heighten brightness levels for a more life-like picture.
BenQ's high performance Wire Remote Control offers projector installers and managers with extra set-up convenience and ease. The added reliability makes the device a dependable choice for projector installation adjustments.

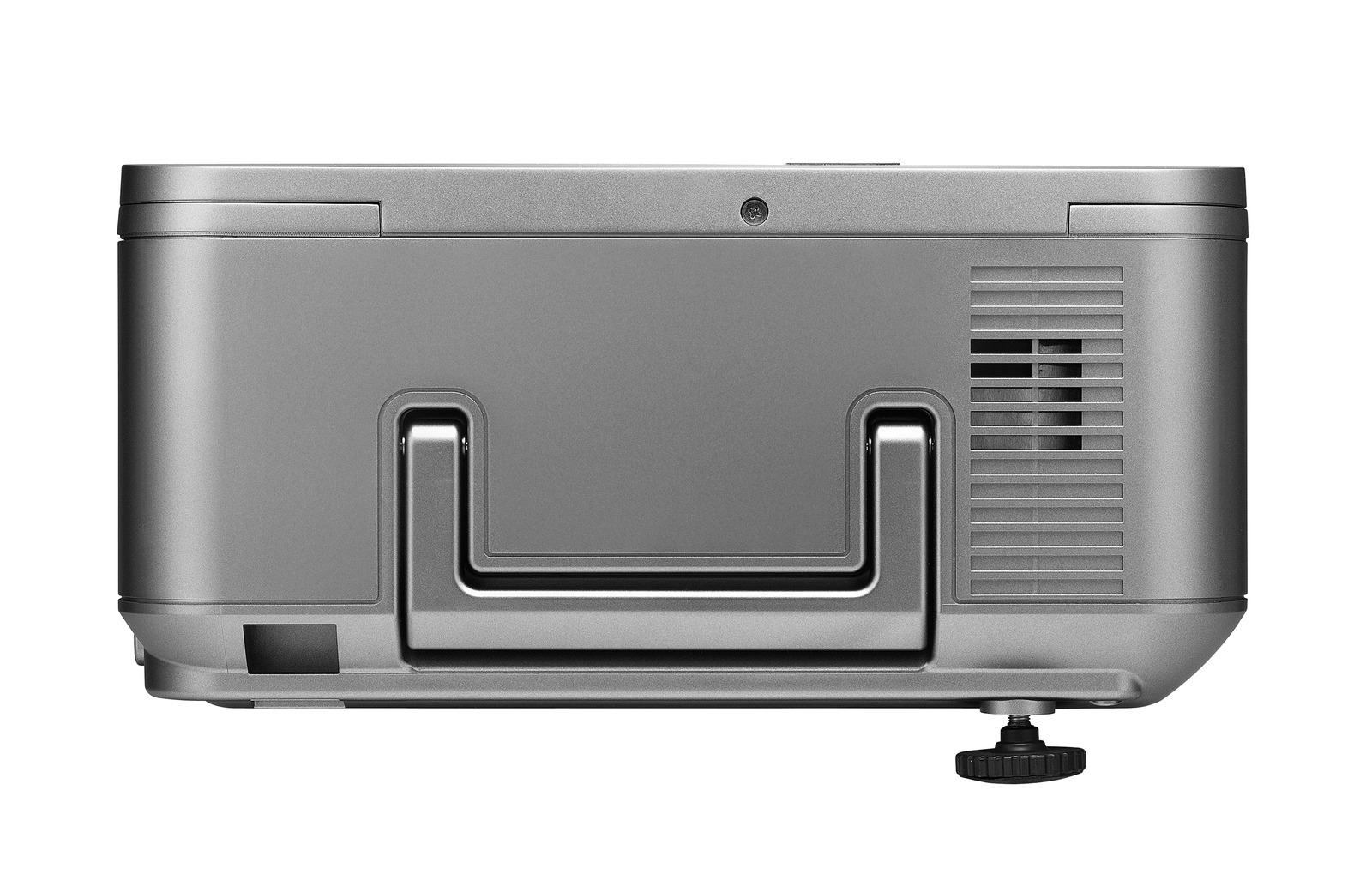

With a sturdy carrying handle, the projectors can be easily and safely transported during projector installation or moved from one place to another.
To change the lens while the projector is running, such as in the case of an emergency when the installation personal must replace the projector lens within a short period of time, use the Hot Swap Lens Change feature.
For fast lens changing, press the Quick-Release Lens Change button. This gives you instant access to the projector lens.
BenQ DLP®Projectors︱ Long-Lasting Image Perfection with DLP Technology
BenQ DLP Projectors are built with enduring enjoyment in mind, ensuring razor-sharp clarity, ultra-readability and true-to-life color for years to come. We use leading-edge DLP Technology to reflect pure light from millions of micro mirrors on a DMD chip through our advanced color wheels. Since the mirrors are colorless and protected within a nearly-sealed engine, BenQ DLP Projectors have no aging problems and are virtually immune to image decay, consistently delivering picture excellence time and time again. In fact, after 2,000 hours of intense usage, inserting a new bulb produces image quality comparable to a brand-new projector.
Razor-Sharp Clarity with Ultra-Readability
Enabling a 96% fill factor, DLP Technology supplies pixel circuitry behind the pixel, thereby eliminating the thick dark bezels around individual pixels, which diminish color and detail. A higher fill factor and less black border translate to noticeably purer, more intense color and smoother image quality.
Even in lit venues, BenQ DLP Projectors achieve the optimal balance of brightness and color accuracy, with BrilliantColor™ Technology additionally boosting true-to-life colors that captivate. BrilliantColor enables up to six-color processing by incorporating the secondary colors Yellow, Cyan, and Magenta along with primary Red, Blue, and Green. From intense hues to elusive mid-tones like aqua blues and light yellows, your every presentation is rendered in pure, living splendor.
Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!
ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.
|Native Resolution||WXGA (1280 x 800)|
|Brightness (ANSI Lumens)||6500 / 5700 lmns (Dual lamp, Standard lens)|
|Display Color||1.07 Billion Colors|
|Lens||Wide Fix (5J.JAM37.011) F=1.85, f=11.6mm
Ultra Wide (5J.JAM37.061) F=1.96-2.3
Wide Zoom (5J.JAM37.021) F=1.85-2.5, f=18.7-26.5mm
Standard (5J.JAM37.001) F=1.64-1.86, f=26-34mm
Semi Long (5J.JAM37.051) F=1.86-2.48, f=32.9-54.2mm
Long Zoom1 (5J.JAM37.031) F=1.86-2.41, f=52.8-79.1mm
Long Zoom2 (5J.JAM37.041) F=1.85-2.48, f=78.5-121.9mm
|Aspect Ratio||Native 4:3/ 16:10 (5 aspect ratio selectable)|
|Throw Ratio||Wide Fix (5J.JAM37.011) 0.8:1
Ultra Wide (5J.JAM37.061) 0.75-0.93:1
Wide Zoom (5J.JAM37.021) 1.31-1.87:1
Standard (5J.JAM37.001) 1.8-2.38:1
Semi Long (5J.JAM37.051) 2.33-3.86:1
Long Zoom1 (5J.JAM37.031) 3.76-5.64:1
Long Zoom2 (5J.JAM37.041) 5.56-8.67:1
|Image Size (Diagonal)||80"~500"|
|Zoom Ratio||Wide Fix (5J.JAM37.011) Fixed
Ultra Wide (5J.JAM37.061) 1.25:1
Wide Zoom (5J.JAM37.021) 1.41:1
Standard (5J.JAM37.001) 1.3:1
Semi Long (5J.JAM37.051) 1.65:1
Long Zoom1 (5J.JAM37.031) 1.5:1
Long Zoom2 (5J.JAM37.041) 1.55:1
|Lamp Type||280W x 2|
|Lamp Mode (Normal/Economic)*||2000/2500 hours|
|Lens Shift||Wide Fix (5J.JAM37.011) NA
Ultra Wide (5J.JAM37.061) 0-45% Vertical; ± 10% Horizontal
Wide Zoom (5J.JAM37.021) 0-50% Vertical; ± 10% Horizontal
Standard (5J.JAM37.001) 0-50% Vertical; ± 10% Horizontal
Semi Long (5J.JAM37.051) 0-50% Vertical; ± 10% Horizontal
Long Zoom1 (5J.JAM37.031) 0-50% Vertical; ± 10% Horizontal
Long Zoom2 (5J.JAM37.041) 0-50% Vertical; ± 10% Horizontal
|Keystone Adjustment||Vertical ± 30 degrees|
|Resolution Support||VGA(640 x 480) to WUXGA_RB(1920X1200) *RB=Reduced blanking|
|Vertical Scan Rate||23-85Hz|
|HDTV Compatibility||HDTV Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p|
|Video Compatibility||Video Compatibility NTSC, PAL, SECAM|
|Weight (Without Packing / With Packing)||16.5KG (Without lens)|
|Dimensions (W x H x D mm)||505 x 194 x 385 mm|

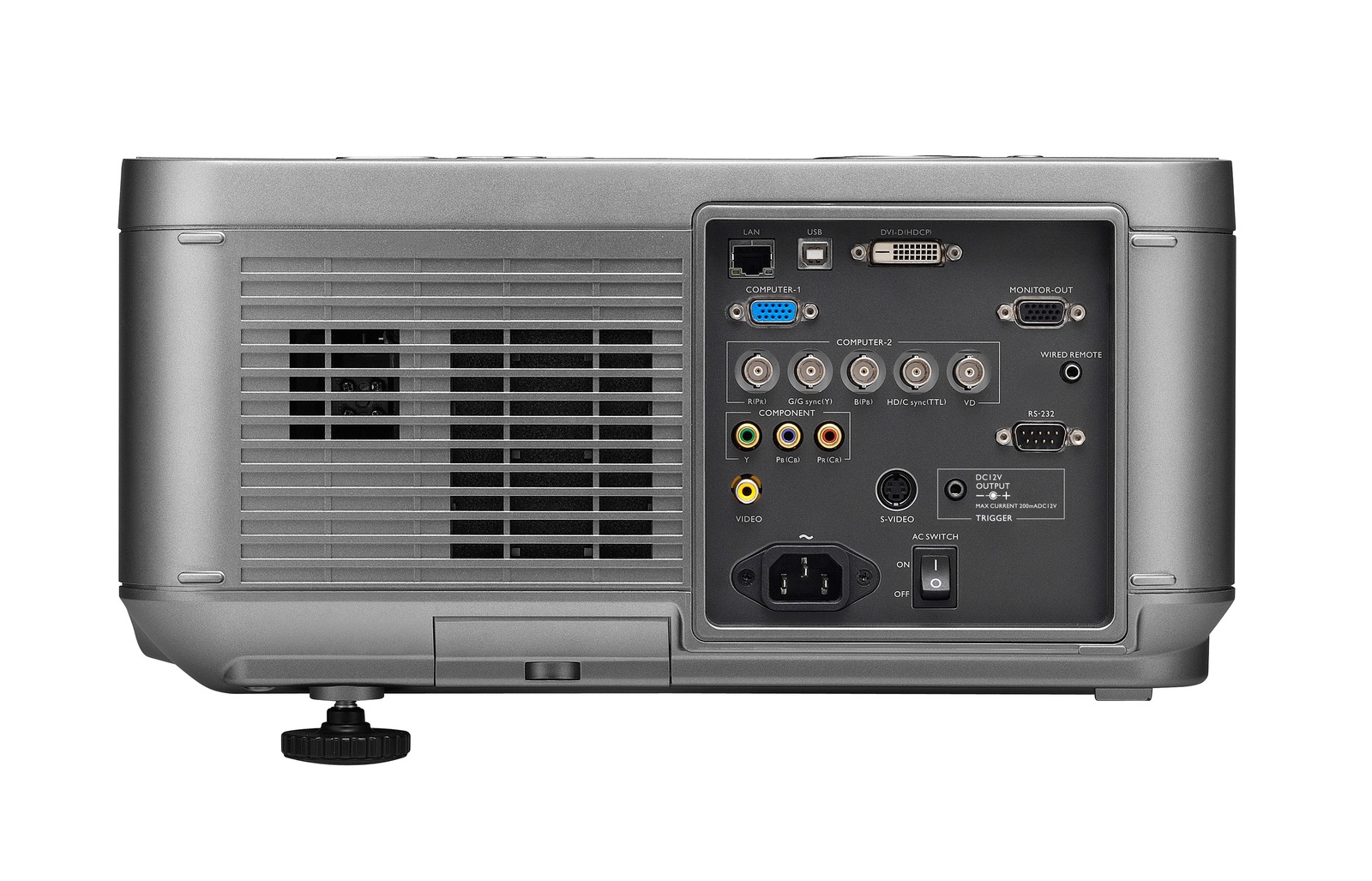

|Interface||Computer 1 in (D-sub 15pin) x 1
Computer 2 in (5BNC, R/G/B/H/V) x 1
Monitor out (D-sub 15pin) x 1
DVI-D in x 1
Component Video in (Y/Pb/Pr) x 1
Composite Video in (RCA) x 1
S-Video in (Mini Din 4 pin) x 1
LAN (RJ45) x 1 (LAN Control)
USB (Type Mini B) x 1 (Download)
12V Trigger x 1
RS232 (DB-9pin) x 1
Wired Remote x 1
IR Receiver x 2 (Front+Rear)
|Power Consumption||AC100V, 710W (Standby Power <0.5W)
AC 220-240 V, 670W (Standby Power <0.5W)
|Audible Noise (Normal/Economic Mode)||39 /34 /35/ 32 db (Dual laml normal / Dual lamp eco / Single lamp normal / Singal lamp eco)|
|Power Supply||AC100 V, 7.2A, 50 to 60 Hz
AC 220-240 V, 2.9A, 50 to 60 Hz
|On-Screen Display Languages||English/ Traditional Chinese/ French/ Spain/ Deutch/ Italian/ Simplified Chinese/ Korean/ Jananese / РУССКИЙ/Portuguese/ svenska (12 Languages)|
|Accessories (Standard)||Remote Control w/ Battery
6 Segments Color Wheel
Power Cord (by region)
User Manual CD
Quick Start Guide
Warranty Card (by region)
VGA (D-sub 15pin) Cable
|Accessories (Optional)||Spare Lamp Kit 5J.JAM05.001
Ceilling Mount 5J.JAM10.001
Ultra Wide (5J.JAM37.061)
Long Zoom2 (5J.JAM37.041)
Lamp in this product contains mercury.
