CASIO has applied its unique new Laser & LED Hybrid Light Source to achieve breakthrough development of a mercury-free high-brightness projector. Adopting a new semiconductor-based light source system combining a blue laser, phosphor and a red LED, we have achieved both high-brightness performance enabling projection in well-lit rooms and environmental friendliness with mercury eliminated from the light source.

CASIO developed a new semiconductor light source technology combining a red LED, phosphor and a blue laser. This source achieves high luminance safely by employing a phosphor device to modify the wavelengths and phases of blue laser light.

* Compared with conventional CASIO models,
as of February 2011. Source: CASIO

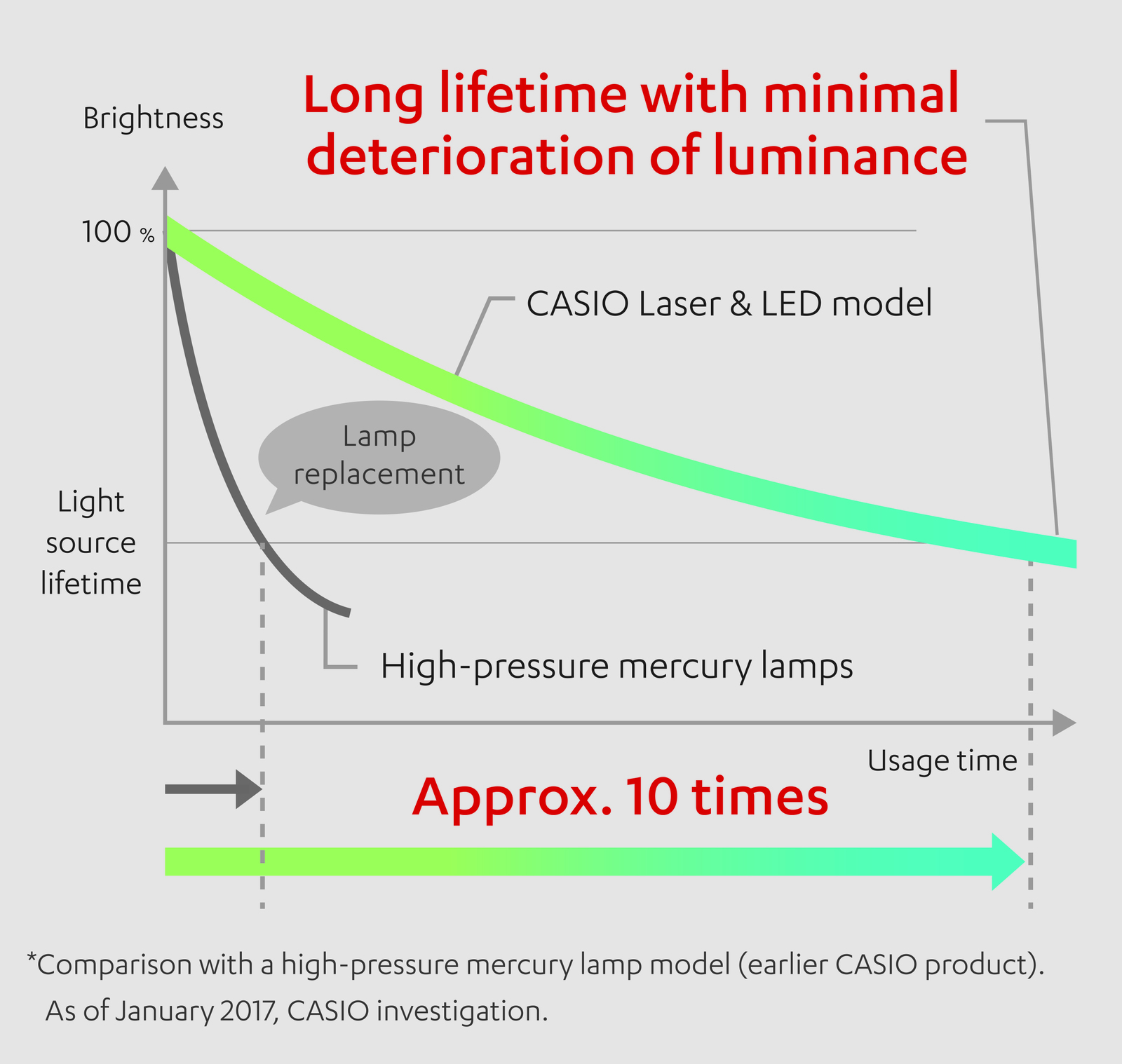

The light source’s life of approximately 20,000 hours far outshines that of conventional projectors that require mercury lamp replacement. It saves maintenance labor and contributes to a significant reduction in operating costs. Since brightness degradation is more gradual than with mercury lamps, moreover, it maintains vivid image quality through long-term use.

Projection at maximum brightness is achieved in as few as five seconds, and the time from startup to screen display is shortened dramatically, facilitating more effective use of limited time. No cooling down is necessary, moreover, when the power is turned OFF. Users can complete the process from setting up to packing up smartly and speedily.

The dramatic improvement in color purity achieved by the new light source has significantly improved color reproduction. Not only are the colors clearer and more beautiful, but the projected images also look brighter due to the visual effects of the high-purity colors. Users benefit from clearer, more powerful images than conventional projectors can achieve.




CASIO’s innovative mobile styling has resulted in an A4-size projector that measures just 43mm in thickness and 2.3kg in weight. It slips neatly into a slim briefcase and travels with you easily to presentations outside your office.

An optional mount enables users to attach the projector securely to the ceiling. Its lightweight, compact design, matched to the shape of the main projector unit, is tastefully unobtrusive, ensuring that the projector blends in with conference room and classroom facilities and decor.

The wide-angle 2x zoom lens boosts magnification to the highest level among data projectors.* This zoom capability enables the projector to project optimally sized images from close to the screen or farther away as well as to correct screen distortions resulting from the projector’s positioning automatically.
