Step into the future of presentations with the NEC P554U. Tailored to transform lectures and meetings, it merges crystal-clear visuals with unparalleled brightness. Set to redefine your projection experience, it seamlessly fits into previous setups, promising not just brilliance but also ease and efficiency.
Highlights:
- Uncompromised Brightness: A staggering 5,300 ANSI lumen ensures every slide and video stands out, even in well-lit rooms.
- Longevity Meets Clarity: Benefit from a smooth operation over five years*, thanks to our long-lasting lamp life combined with patented LCD panel dust protection.
- Effortless Replacement: If you're transitioning from an older model, the NEC P554U has got you covered. Its mounting options and zoom capabilities match previous models, ensuring a hassle-free swap.
- Vivid Imagery: Dive into natural colors with the high contrast that LCD technology provides, transforming every presentation into a visual treat.
Top Benefits:
- Big Screen, Small Investment: With its affordable pricing, the NEC P554U is perfect for venues from corporate boardrooms to university auditoriums.
- Simplified Installation: A wide horizontal and vertical lens shift coupled with versatile projection features means a setup that’s as easy as plug-and-play.
- Economical Excellence: With low power consumption, this projector promises reduced operational costs and a lowered carbon footprint.
- Empower Collaboration: Boost the interactivity of your sessions. With the NEC MultiPresenter option, share content from up to 16 devices. And here’s the kicker: No extra power source needed!
- Centralized Control: Using NaViSet Administrator 2, administer all connected NEC devices from one hub. It’s efficiency redefined.
- Future-Ready Connectivity: The NEC P554U isn’t just for today. Its advanced connectivity ensures it’s an asset for tomorrow too.
Best Suited For:
Educational institutions, corporate boardrooms, seminars, and any space that demands a premium projection experience.
Final Thoughts:
In a world where clarity matters and engagement is key, the NEC P554U stands out as the gold standard in projection. It’s not just a tool, but a partner in bringing ideas to life. When you choose the NEC P554U, you’re choosing more than just a projector; you’re opting for an experience. Elevate your presentations today.
(PA-NECP554UG)
Specifications
Image | |
Projection Technology | 3LCD Technology |
Native Resolution | 1920x1200 |
Contrast Ratio (typ.) | 20000:1 |
Brightness [Lumen] | 5300 |
Light Source | Lamp |
Lamp Life | 4000 |
Lens | F= 1.5–2.08, f= 17.2–27.7 mm |
Lens shift | H:±0.15, V:+0.55,-0 |
Keystone correction | +/- 15° manual horizontal / +/- 30° manual vertical projection |
n Factor | 1.2 – 2 : 1 |
Projection Distance [m] | 0.8 – 12.9 |
Screen Size (diagonal) [cm] / [inch] | Maximum: 762 / 300"; Minimum: 76 / 30" |
Zoom | 1 - 1.6; Manual |
Focus Adjustment | Manual |
Supported Resolution | Up to 1920 x 1200 (WUXGA) |
Horizontal Frequency [kHz] | 15 – 100 kHz (RGB: 24 kHz) |
Vertical Frequency [Hz] | 50 – 120 Hz |

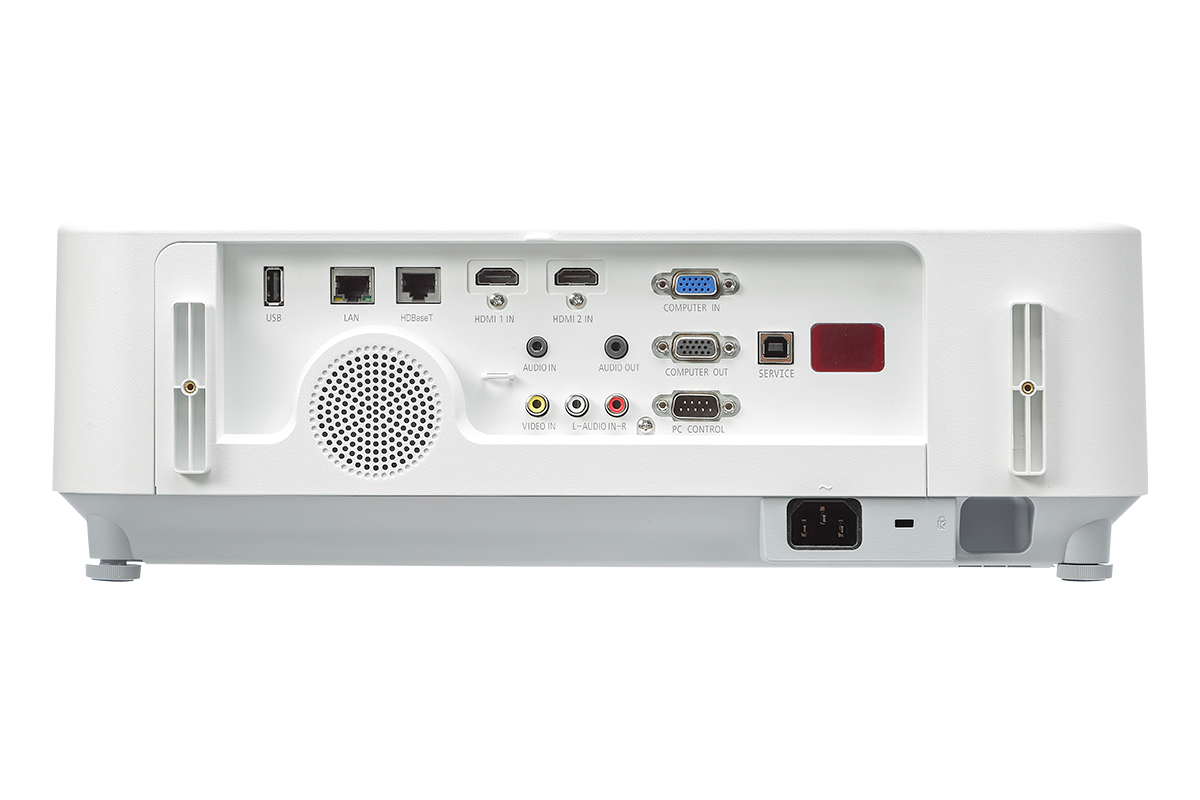

Connectivity | |
RGB (analog) Input | 1 x Mini D-sub 15 pin |
RGB (analog) Output | 1 x Mini D-sub 15 pin |
Digital Input | 1 x HDBaseT; 2 x HDMI™ (Deep Color, Lip sync) with HDCP |
Audio Input | 1 x 3.5 mm Stereo Mini Jack for Computer analog; 1 x RCA Stereo for Video and S-Video; 2 x HDMI audio |
Audio Output | 1 x 3.5 mm Stereo Mini Jack (variable) |
Video Input | 1 x RCA |
Control Input | 1 x D-Sub 9 pin (RS-232) (male) |
LAN | 1 x RJ45 |
USB | 1 x Type A (USB 2.0 high speed); 1 x Type B |
Video Signals | NTSC 3.58; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM |
Remote Control | |
Remote Control | Aspect Ratio; Audio Control; Auto Adjust; Eco Mode Control; Freeze-function; Help-function; ID set; Keystone Correction; Magnify-function; Page (up, down); Picture Adjust; Picture Mute; Power (On-OFF); Presentation and Mouse Control; Select (up, down, left, right); Source Select |
Electrical | |
Power Supply | 100-240 V AC 50/60 Hz |
Power Consumption [W] | 400-500 |
Mechanical | |
Dimensions (W) [mm] | 420 |
Dimensions (H) [mm] | 133 |
Dimensions (D) [mm] | 322 |
Weight [kg] | 3-5 |
Fan Noise [dB (A)] | 34 / 37 (Eco / Normal) |
Environmental Conditions | |
Operating Temperature [°C] | 5 to 40 |
Operating Humidity [%] | 20 to 80 |
Storage Temperature [°C] | -10 to 50 |
Storage Humidity [%] | 20 to 80 |
Ergonomics | |
Safety and Ergonomics | CE ErP RoHS TüV GS |
Speakers [W] | 1 x 20 (mono) |
Additional Features | |
Special Characteristics | Auto Eco Mode; Auto Power ON/OFF; Carbon Savings Meter; Contrast Ratio 20000:1 with Iris; Control ID Function; DICOM simulation; Direct Power-Off Function; Help Function; HTTP Browser Control; Kensington security slot; Keypad Lock; Lens Shift (vertical 0 max/55 max, horizontal ± 15 max.); Magnify; Manual Wall Color Correction; NaViSet Administrator 2; Off-Timer; Optional User Logo; OSD with 27 languages; Password Security System; Pincushion Correction; Quick Start; Test Pattern; Unique Power Saving Functions; Virtual Remote for direct PC control green |
n Features | |
Energy Efficiency | 0.4W Power save mode Auto ECO Mode Green one-touch ECO and AV mute button |
Ecological Materials | Downloadable manuals ECO packaging |
Ecological Standards | ErP compliant RoHs compliant |
Warranty | |
Projector Warranty | 5 years Warranty |
Light Source Warranty | 6 months, max. 1000 hrs |
Shipping Content | |
Shipping Content | Power Cable Remote Control User Manual Projector Quick Setup Guide Utility Software Mini D-SUB Signal Cable (1.8 m) |
Optional Accessories | |
Optional Accessories | Cable Cover (NP12CV) Lamp (NP44LP) |
SKU | PA-NECP554UG |
Barcode # | 5028695613157 |
Brand | NEC |
Shipping Weight | 4.8000kg |
Shipping Width | 0.400m |
Shipping Height | 0.400m |
Shipping Length | 0.300m |
Shipping Cubic | 0.048000000m3 |
