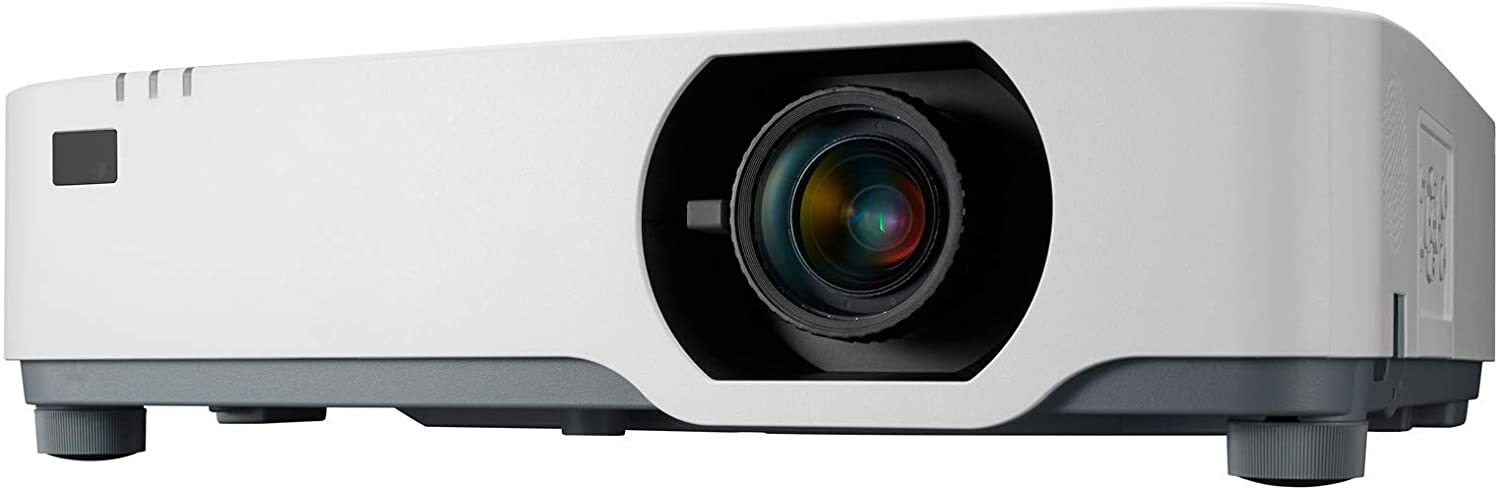

NEC PE455ULG Laser Projector

Quieter than the ticking of a watch, NEC’s silent projection ensures all eyes and ears are trained on the presenter and not diverted by distracting noise.

Built on the award winning P Series, the new PE Series delivers all the corresponding benefits yet targeted at a more cost conscious user. Supporting collaborative working practices, the enhanced embedded MultiPresenter functionality enables wireless presentation and screen sharing for up to 16 devices simultaneously, out of the box. The technology is future-proof with the capability of processing 4K inputs at 30Hz.

Designed for zero maintenance in classrooms and meeting rooms, the long-life laser light source and sealed optical engine allows the vivid high brightness of 3 LCD technology to shine for up to 20,000 hours of optimised visual performance.

Benefits

• No filter service required – a completely sealed optical laser LCD engine allows a filter-free design. Brilliant colour brightness is maintained and servicing costs need no longer feature in your budget.

• Low Noise Level – with 22dB*, the silent technology will not disturb your meeting.

• Future-proof input management – thanks to 4K@30 Hz input processing.

• Minimised Carbon Footprint – with only 308W power consumption in normal mode for lowering your TCO.

• No lamp replacement – up to 20,000 h maintenance free operation possible due to Laser Light Source.

• Risk Group 2 saves you installation and operation effort – because of the Risk Group 2 compliance, no prescribed safety precautions are necessary.

• Professional and Flexible Installation – versatile projection characteristics allow for simple positioning of the projector, making installation easy and potentially saving set up costs.

(PA-NECPE455ULG)

Product Information

Product Name PE455UL

Projection Technology 3LCD Technology

Native Resolution 1920 x 1200 (WUXGA)

Aspect Ratio 16:10

Contrast Ratio 1 500000:1

Brightness 1 4500 ANSI Lumen

Lamp Laser Light Source

Lamp Life [hrs] 20000

Lens F= 1.5–2.1, f= 17.2–27.6 mm

Lens shift H:±29, V:+60,-0

Keystone correction +/- 30° manual horizontal / +/- 30° manual vertical

Projection Factor 1.23 – 2 : 1

Projection Distance [m] 0.8 – 13.5

Screen Size (diagonal) [cm] / [inch]

Maximum: 762 / 300"; Minimum: 76.2 / 30"

Zoom Manual; x1.6

Focus Adjustment Manual

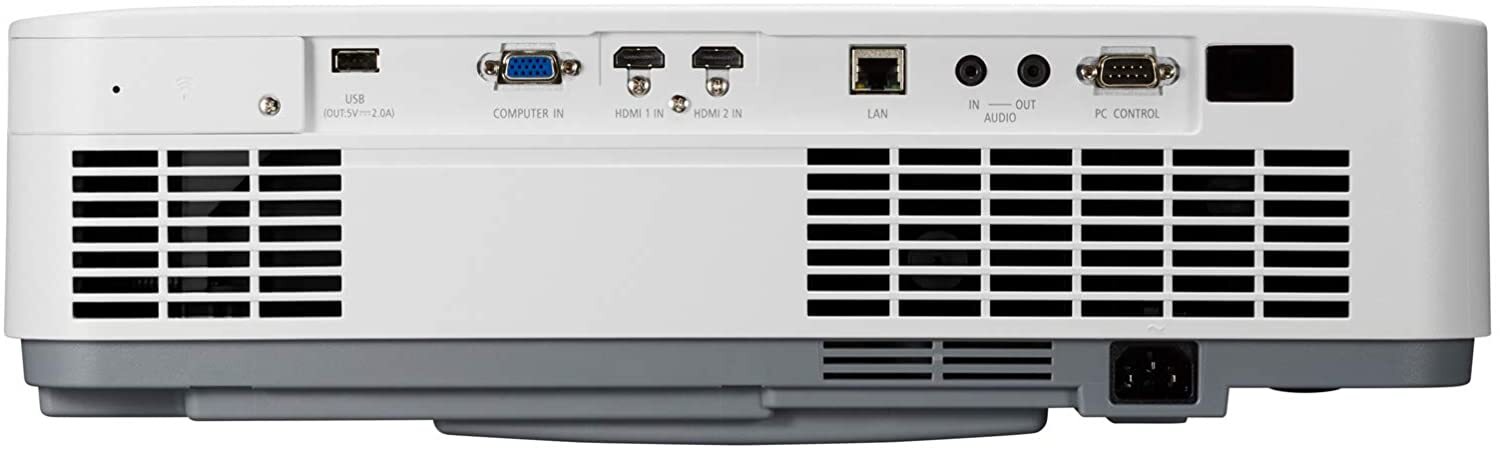

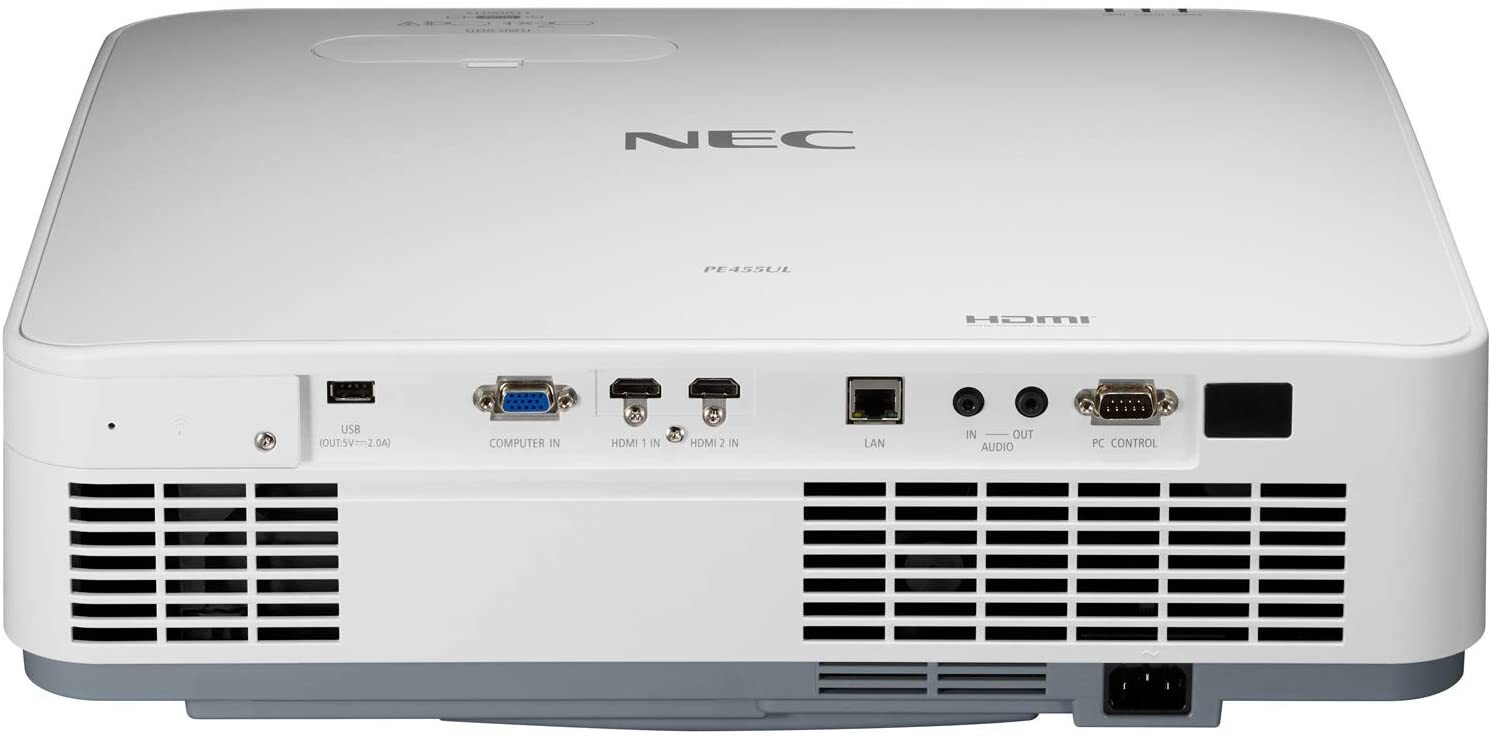

Connectivity

RGB (analog) Input: 1 x Mini D-sub 15 pin

Digital Input: 2 x HDMI™ supporting HDCP

Audio Input: 1 x 3.5 mm Stereo Mini Jack for Computer analog; 2 x HDMI audio

Output: 1 x 3.5 mm Stereo Mini Jack (variable)

Control Input: 1 x D-Sub 9 pin (RS-232) (male)

LAN 1 x RJ45; Optional WLAN

USB 1 x Type B (for Service); 1x Type A (USB 2.0 high speed) with 2.0A Power Supply

Video Signals NTSC 3.58; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM

Remote Control Aspect Ratio; Audio Control; Auto Adjust; Eco Mode Control; Freeze-function; Help-function; ID

set; Keystone Correction; Magnify-function; Page (up, down); Picture Adjust; Picture Mute;

Power (On-OFF); Presentation and Mouse Control; Select (up, down, left, right); Source Select

Electrical

Power Supply 100-240 V AC; 50 - 60 Hz

Power Consumption [W] 308 (Normal) / 222 (Eco) / 1.8 (Network Stand-by) / 0.3 (Stand-by)

Mechanical

Dimensions (W x H x D) [mm] 480 x 122 x 407 (without lens and feet)

Weight [kg] 9.7

Fan Noise [dB (A)] 22 / 24 / 27 (ECO / Normal / High Bright)

Colour Versions White

SKU	PA-NECPE455ULG
Barcode #	2000000001340
Brand	NEC
Shipping Weight	10.0000kg
Shipping Width	0.500m
Shipping Height	0.300m
Shipping Length	0.400m
Shipping Cubic	0.060000000m3
