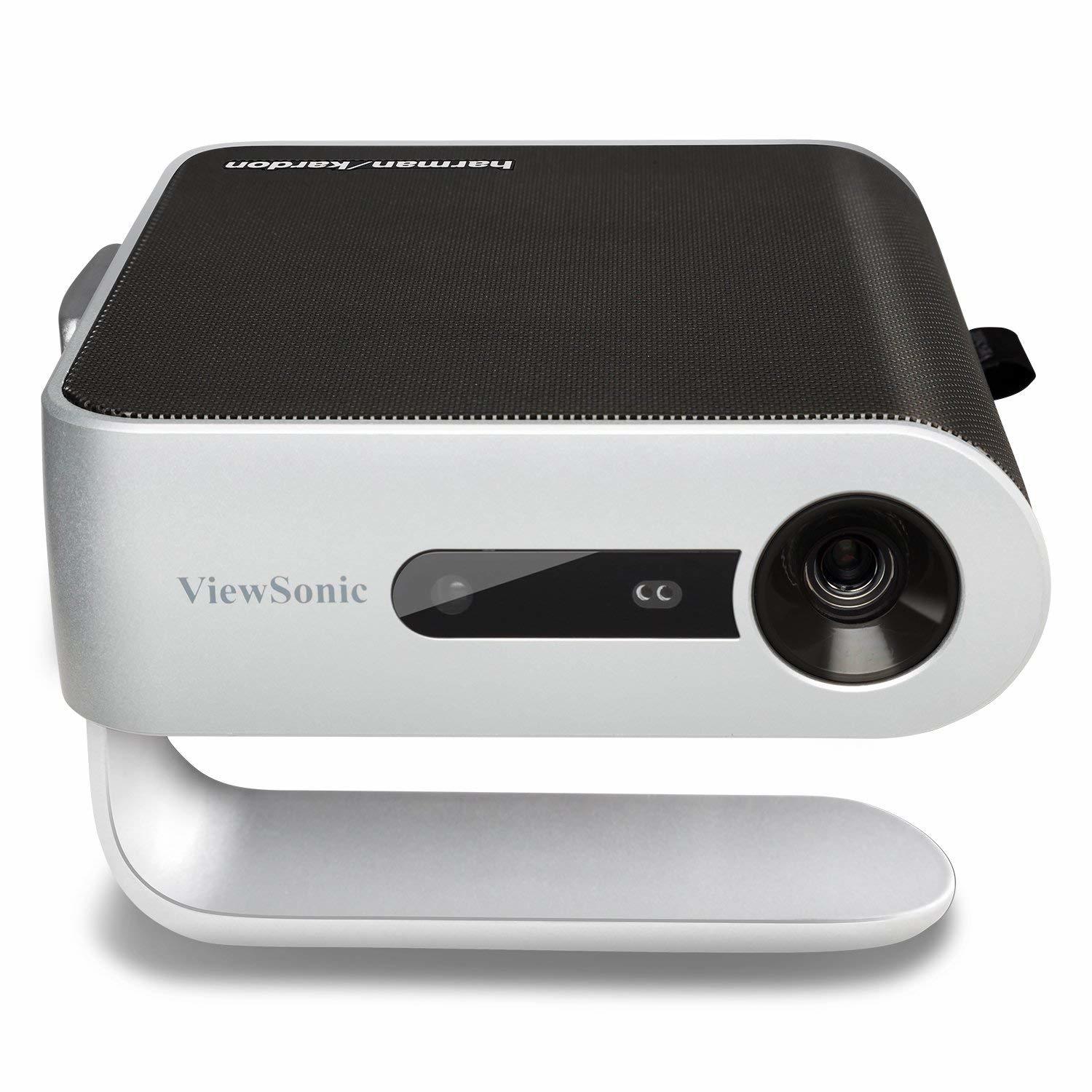

The ViewSonic® M1 is an ultra-portable LED projector that delivers convenient entertainment in nearly any room. With a built-in battery and over 30,000 hours of operational life, this projector will deliver years of multimedia entertainment wherever it goes. Weighing less than 1Kg, the M1’s compact and lightweight design makes it ideal for moving from room to room, or for indoor/outdoor usage. An integrated smart stand provides for simple 360-degree setup, while also doubling as a lens cover. Once the lens is uncovered, the projector automatically powers on with full brightness for instant entertainment. A built-in safety feature temporarily turns off the lens when objects are detected too close to the projector. Dual Harman Kardon speakers provide crisp and clear sound for multimedia content, while a short throw lens can display large images in small spaces. What’s more, versatile connectivity options include a MicroSD card slot, USB Type-A, and USB Type-C – making the M1 a great option for sharing and displaying videos and other multimedia content.

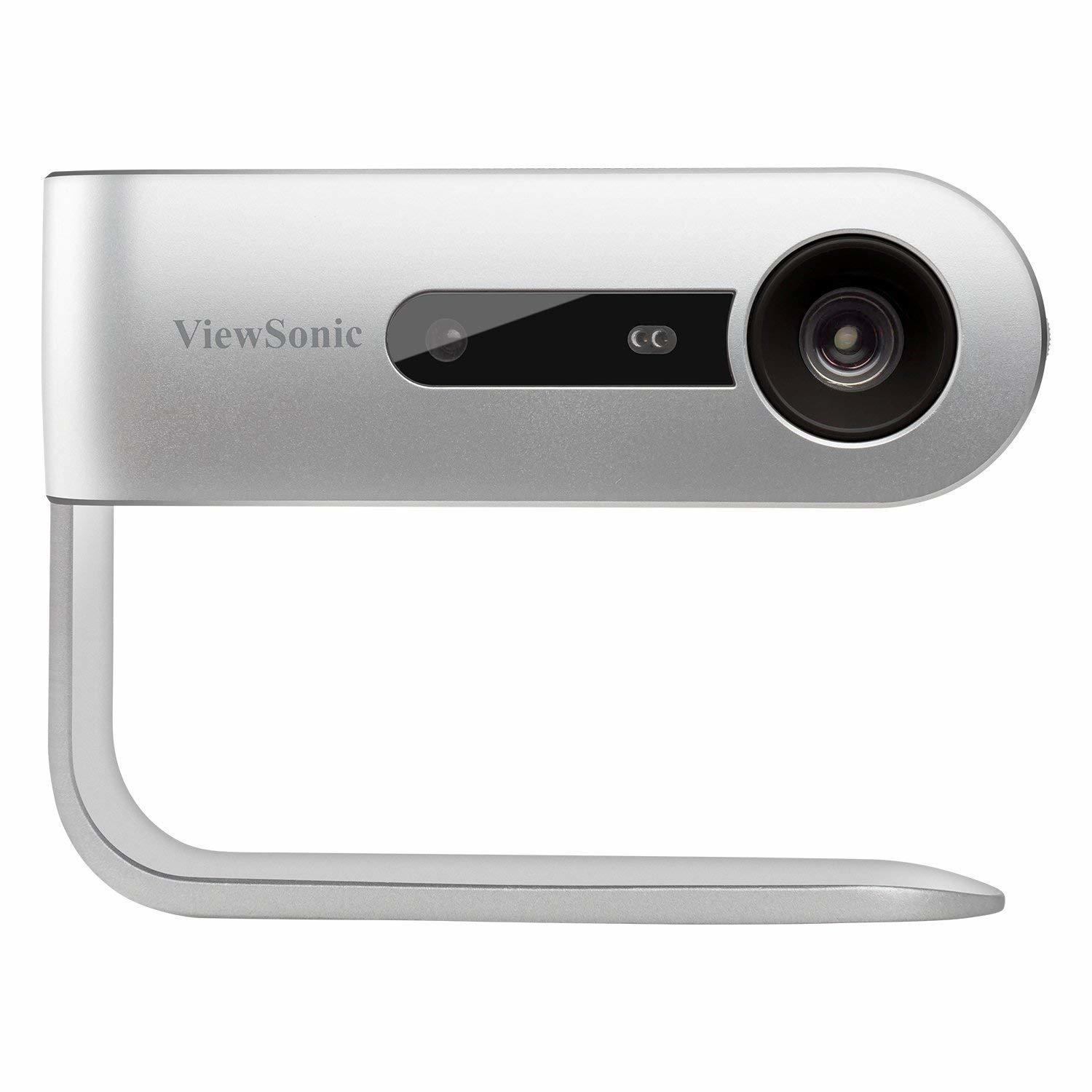

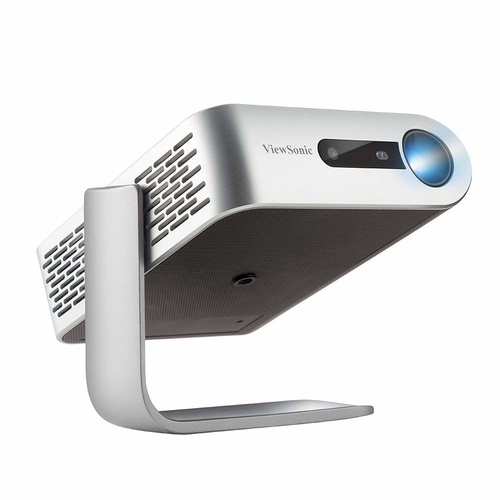

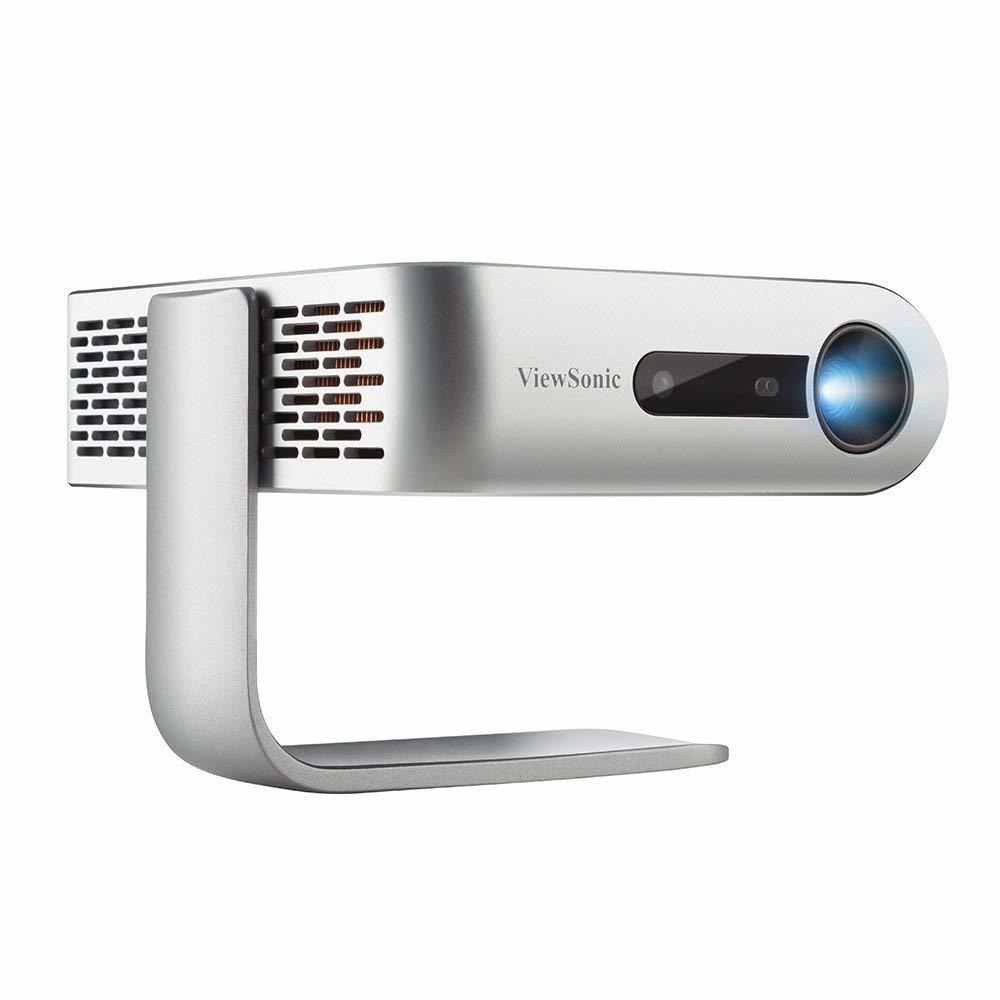

360° Projection with Smart Stand
The integrated Smart Stand provides for simple 360-degree setup, allowing the projector to be placed in different positions at nearly any angle. The Smart Stand also doubles as a lens cover that automatically turns off the projector when closed, and automatically powers on the projector when open.

Dual Harman Kardon Speakers
Integrated Harman Kardon Speakers deliver powerful performance in a small package. These speakers produce deep, loud, 360-degree room-filling sound perfect for music and movies at home, or on the go.

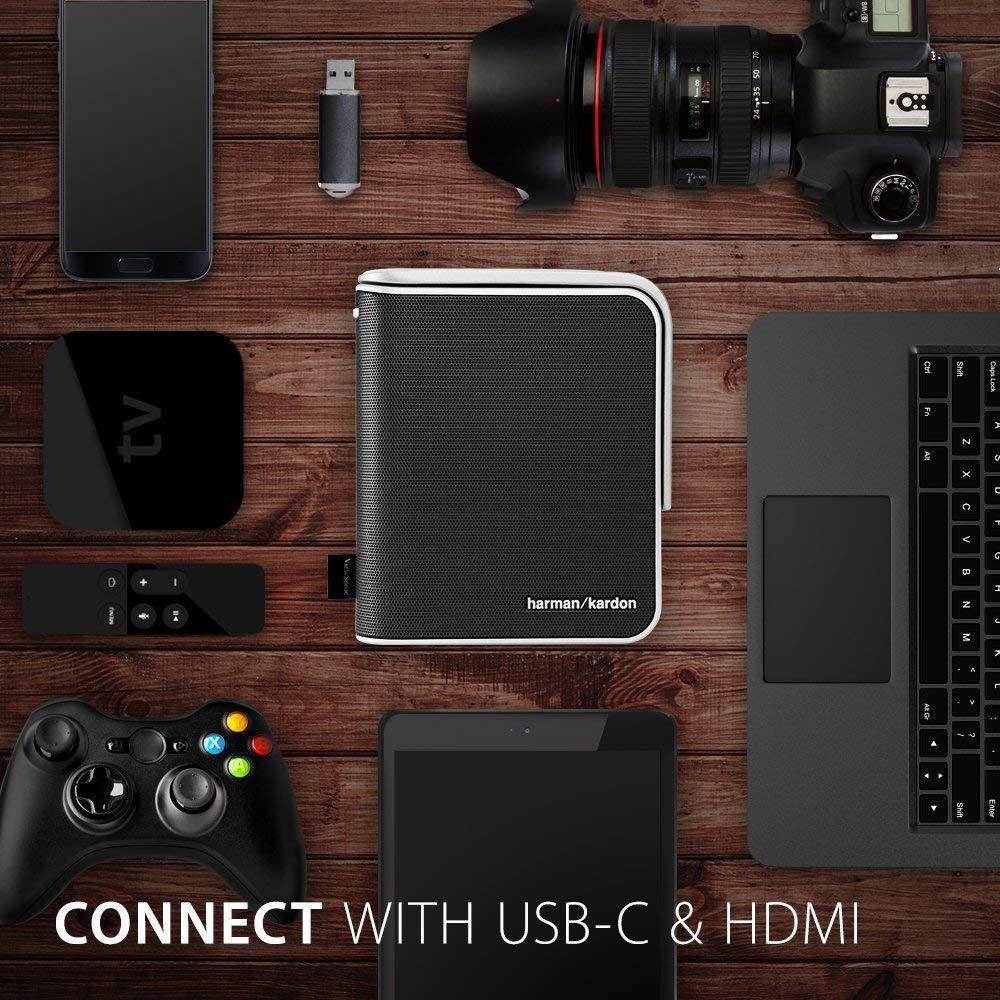

USB Type-C for Video and Power
A USB Type-C port delivers fast data, audio, video and quick charging over a single cable.

*The M1 power adapter must be plugged in for USB Type-C charging. When the M1 is not plugged in and operating on battery power alone, it can still play content from a mobile device connected via USB Type-C, but it cannot charge the mobile device.

Hours of Entertainment
For entertainment on the go, a built-in battery provides up to 6 hours* of power so you can watch movies and share videos without the hassle of wires or cables. And thanks to 16GB of internal storage, you can enjoy up to 4,000 songs and up to 4 hours of movies.

(PA-VIEWSONICM1)

12 Months Warranty

Features
Advanced LED Light Source
360-degree projection with Smart Stand
Dual Harman Kardon Speakers
USB Type-C for Video and Power
Built-in Battery and 16GB Internal Storage

Display TYPE DLP
RESOLUTION TYPE WVGA
RESOLUTION 854 x 480
BRIGHTNESS (LUMENS) 250
DISPLAY SIZE (IN.) 24 - 100 in. / 0.6 - 2.54 m
THROW DISTANCE 40 in / 1.0 m
THROW RATIO 1.2
KEYSTONE Vertical (± 40º)
LENS Fixed Zoom
LIGHT SOURCE LIFE, NORMAL (HOURS) 30000
COLOR DEPTH 1.07B Color (R/G/B 10bit)
DYNAMIC CONTRAST RATIO 120,000:1
ASPECT RATIO 16:9

Video Signal
FREQUENCY HORIZONTAL 15h~135kHz
FREQUENCY VERTICAL 23~120Hz

Compatibility

PC RESOLUTION (MAX) 1920 x 1080
PC RESOLUTION (MIN) 640 x 480

MAC® RESOLUTION (MAX) 1920 x 1080
MAC® RESOLUTION (MIN) 640 x 480

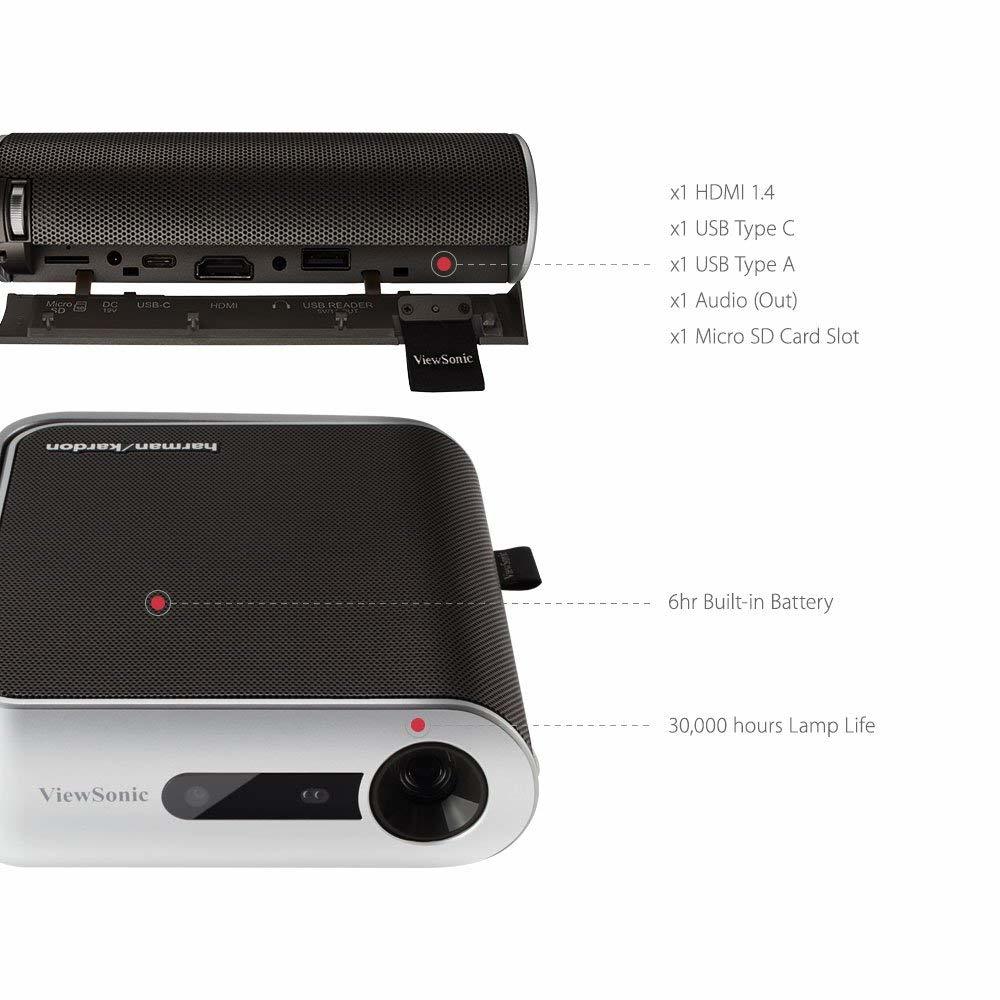

Connector USB 2.0 TYPE A
1 USB 3.1 TYPE C
1 CARD READER Micro SD
3.5MM AUDIO OUT
1 HDMI 1.4
1 Audio
INTERNAL SPEAKERS 3W (x2)
Power VOLTAGE 100-240 VAC
CONSUMPTION (TYPICAL) 55W
STAND-BY <0.5W

Controls
PHYSICAL CONTROLS

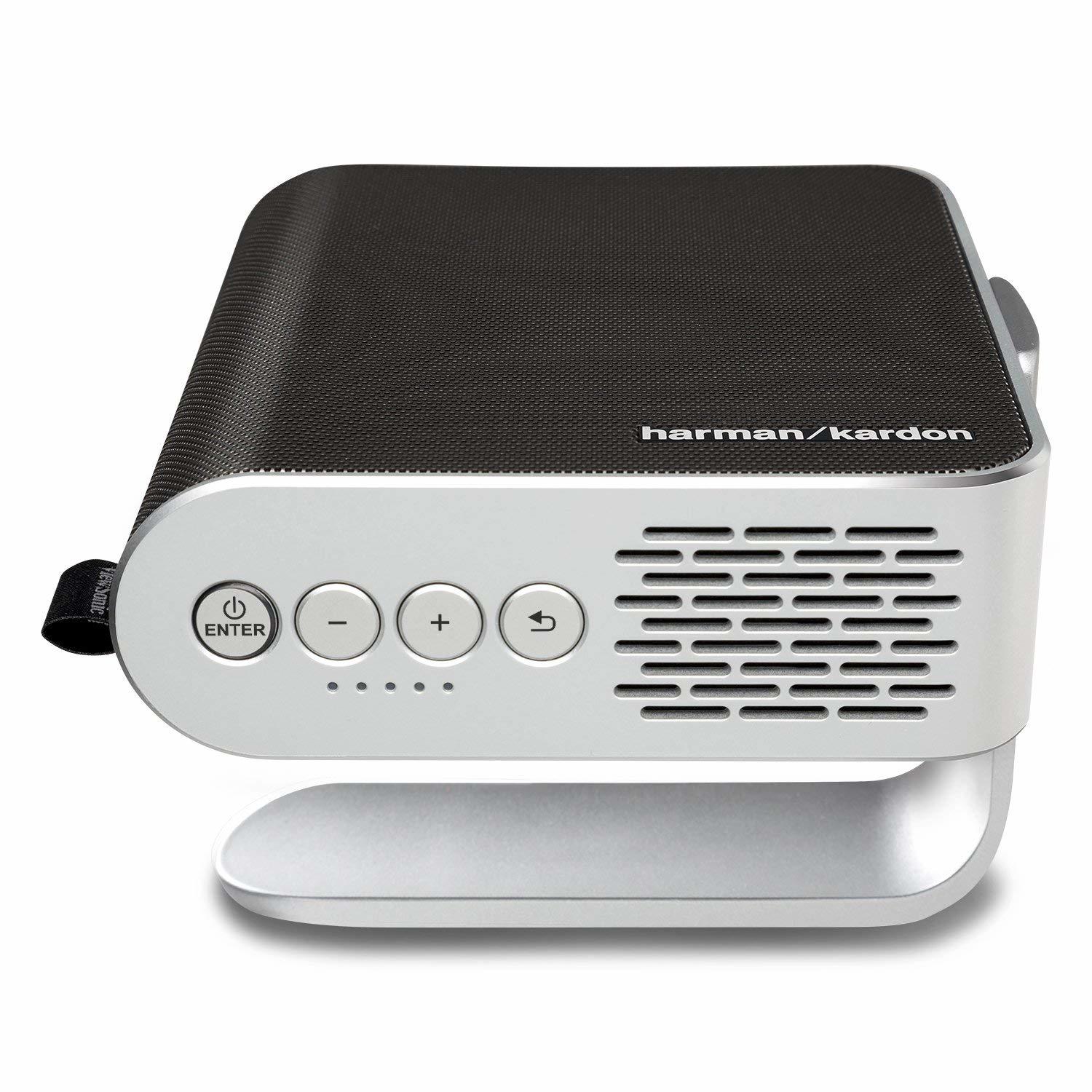

Power, keystone/arrow keys, left/blank, menu/exit, right/panel key lock, mode/enter, auto, source

ON SCREEN DISPLAY
Display, Image, Power Management, Basic, Advanced, System, Information (See user guide for full OSD functionality)

Operating Conditions
TEMPERATURE 32-104º F (0 - 40º C)
HUMIDITY (NON-CONDENSING) 0-90%

Weight (metric) NET (KG) 0.7
GROSS (KG) 1.8

Dimensions (metric)
PACKAGING (MM) 406.0 x 233.0 x 315.0

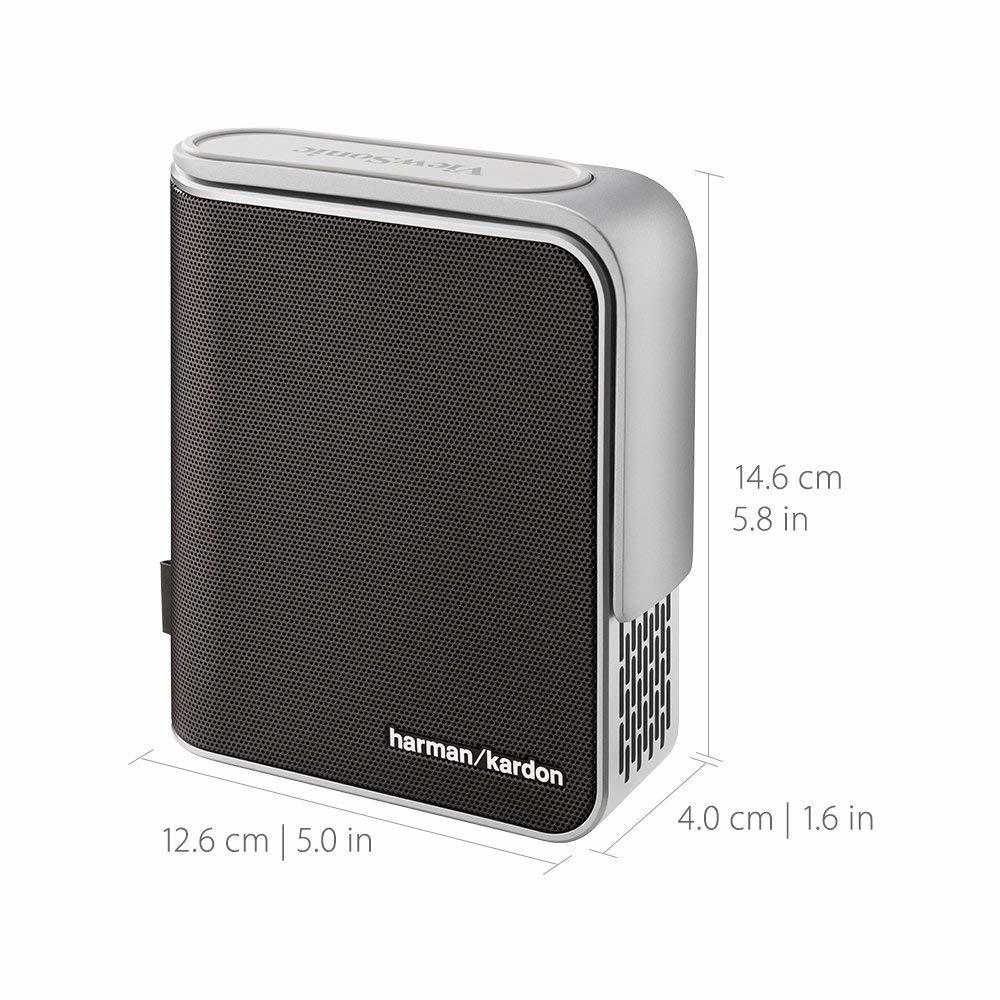

PHYSICAL (MM) 148.0 x 40.5 x 126.0

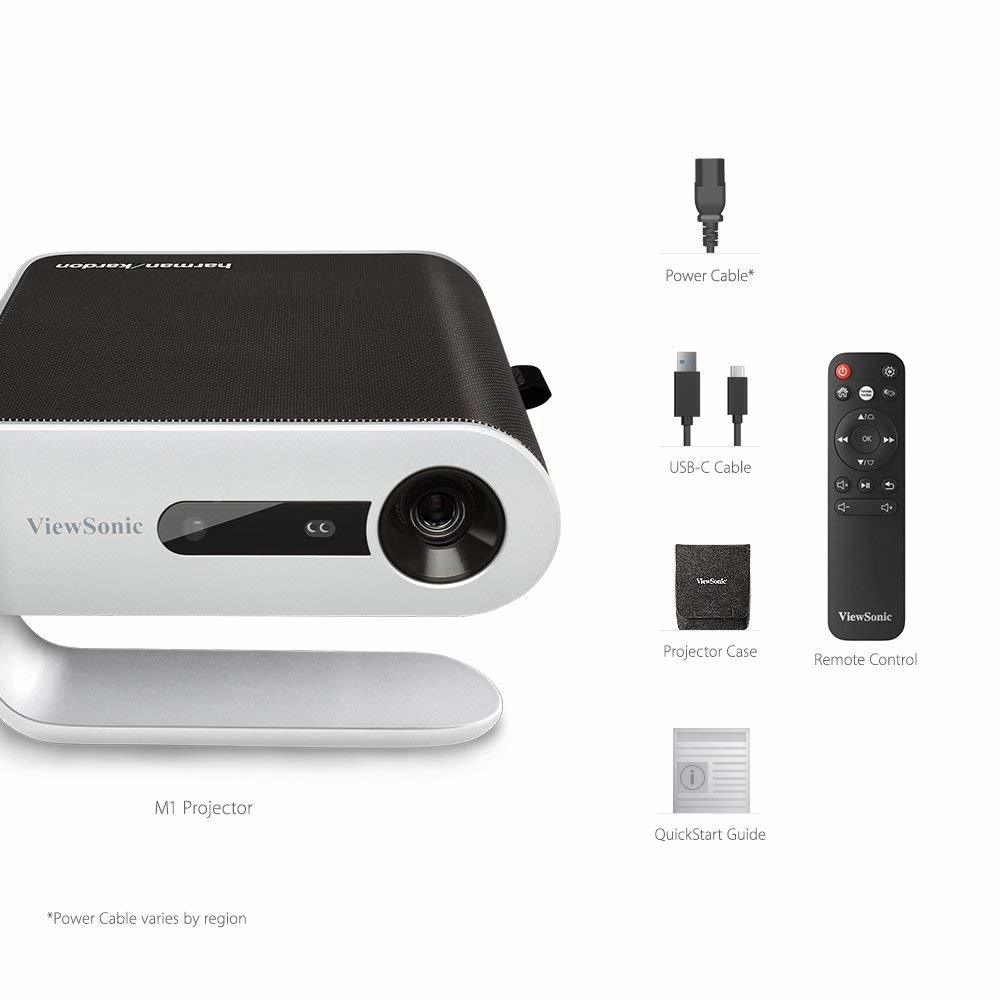

PACKAGE CONTENTS

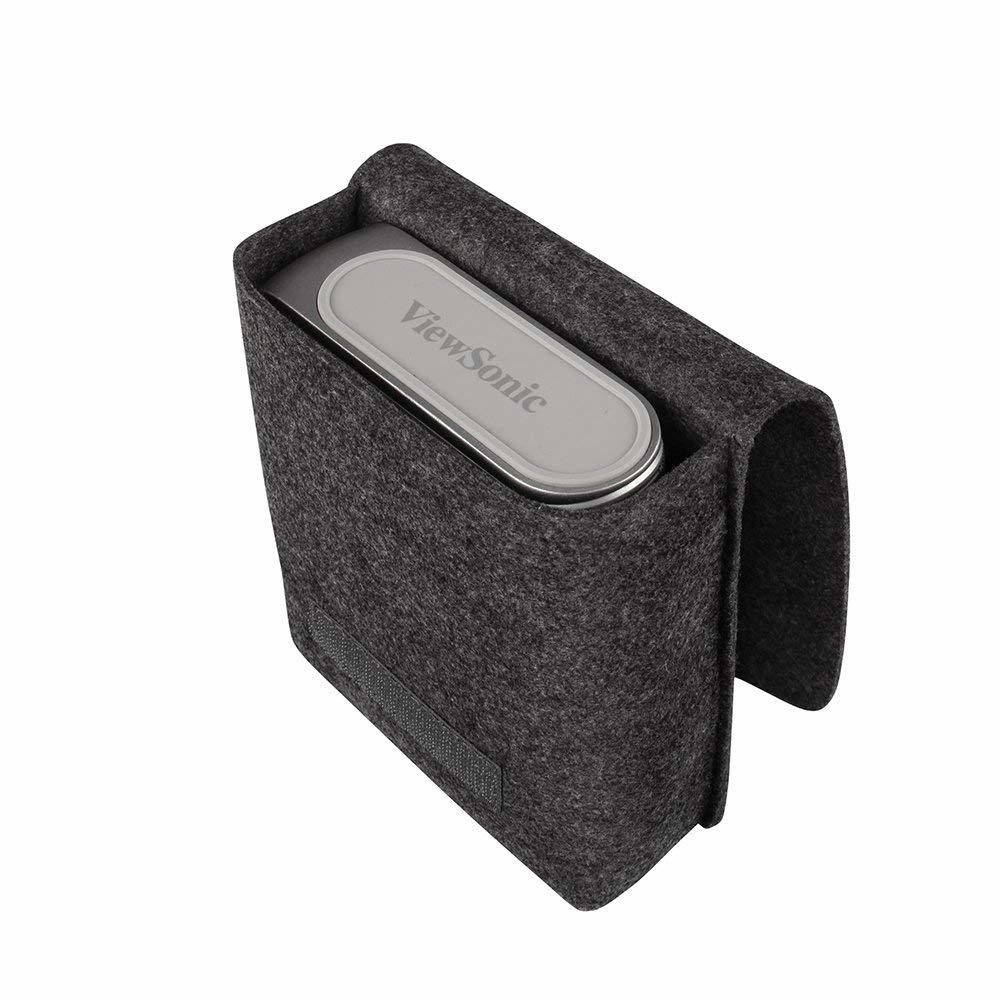

M1 Projector, Power Cable, USB Type C Cable, Remote Control, Projector Case, Quick Start Guide

Dimensions: 148.0 x 40.5 x 126.0 mm

SKU PA-VIEWSONICM1
Model # M1
Barcode # 766907000658
Brand ViewSonic
Shipping Weight 1.8000kg
Shipping Width 0.190m
Shipping Height 0.220m
Shipping Length 0.120m
Shipping Cubic 0.005016000m3

Not enough brightness no wifi no bluetooth

By: on 7 December 2018
This projector does not produce enough brightness for anything, I tried it with movies, presentations, etc. I had to close all my windows and darken the room to almost pitch black to be able to see a decent image quality. Not recommended. Also, has no wifi or Bluetooth, so I feel like I paid too much
