Aaxa KP-101-01 LED Pico Projector

Perfect gadget for today's discerning mobile technology users. Featuring 1280 x 720 (720p) native resolution through LCoS (Liquid Crystal on Silicon) technology and a 15,000 hour LED light source. Incredibly small in size, the LED Pico is about the same size as most cell phones, yet is capable of delivering a stunning 60" image in dark environments.

Tiny Optical Engine

Packed into this tiny projector is an optical engine smaller than the size of 3 dimes stacked together.

1280 x 720 Native Resolution

The LED Pico supports a high native resolution that allows for sharper, more detailed images. Unlike ordinary projectors that become pixelated when enlarged, the LED Pico will provide a crisp image up to 60 inches.

Super Color and Image Quality

The Vibrant Color Technology and triple LED light source in the LED Pico produces a vivid display with amazing color saturation.

Inputs & Connectors

Mini-HDMI up to 1080p

USB & MicroSD reader for Video & Picture Playback (up to 16GB)

Composite RCA

Long Operation Life

Conventional lamp-based projected require frequent bulb changes with very expensive bulbs that cost hundreds of dollars. The LED Pico's LED light source lasts 10 times longer than conventional lamps, so bulb changes are a thing of the past!

The LED Pico gives you upwards of 80+ minutes of operation! Rechargeable and long lasting the internal lithium ion battery makes the LED Pico a truly portable device.

Versatile Multimedia Support

Onboard media player supports popular file formats

Share movies, videos, photos with friends and family

Bring presentations anywhere and everywhere

Enjoy gaming and entertainment without large TV's

Easy to Recharge

The LED Pico features a Micro USB port for easy charging, allowing you to charge it anywhere you have your cell phone charger. This ensures that you never run out of battery while on the go.

Real Quick ON & OFF

Long warm-up and cool down times, sometimes for several minutes, are required for projectors using traditional lamps. The LED light source enables the LED Pico to achieve full brightness within seconds. Of course, it turns off instantly as well.

Environmentally Friendly

The LED Pico's LED light source consumes less power. The LED is also 100% free of mercury and, as the bulb never needs to be replaced, there are no discarded bulbs.

(PA-AAXAKP101)

12 month warranty

AAXA Technologies, a global leader in pico projection technology is excited to announce the AAXA LED Pico, a low-cost 25 Lumen Pico Projector with best-in-class resolution. Designed as a gadget for today's discerning mobile technology user, the AAXA LED Pico features a lofty 1280 x 720 (720p) native resolution made possible through LCoS (Liquid Crystal on Silicon) technology and mated to a 15,000 hour LED light source. At just 4.25" x 2.36" x 0.7" in size, the LED Pico is about the same size as most cell phones, yet is capable of delivering a stunning 60" image in dark environments.

Tiny Optical Engine
Packed into this tiny projector is an optical engine smaller than the size of 3 dimes stacked together.

1280 x 720 Native Resolution
The LED Pico supports a high native resolution that allows for sharper, more detailed images. Unlike ordinary projectors that become pixelated when enlarged, the LED Pico will provide a crisp image up to 60 inches.

Super Color and Image Quality
The Vibrant Color Technology and triple LED light source in the LED Pico produces a vivid display with amazing colour saturation.

PROJECTION SYSTEM

Max Resolution: 1920x1080 (1080p)

Native Resolution: 1280 x 720 (720p)

Max Brightness (DC): 25 Lumens

Max Brightness (Battery): N/A

Contrast Ratio: 1000:1

Projection Lens: Manual Focus

Projection Image: Available Size 5 ~ 60 inch

Lamp: Triple RGB LEDs with Vibrant Color Technology

Life 15,000hrs

GENERAL SPECIFICATIONS

Battery Runtime 80 Minutes

Audio Output 1W Speaker

Stereo speaker/headphone mini-jack

Colour: White/Black

File Playback: MicroSD & USB Host reader

Menu Language: English, Spanish, French, German, Chinese

Aspect Ratio Control: 16:9

Dimensions: 115mm x 62mm x 20mm

Weight: 0.4 lbs

Power Consumption: 6W

Supported Formats MP3 / WMA / OGG / WAV / AVI

BMP / JPG / GIF / TXT

Conformances: CE, FCC Class A

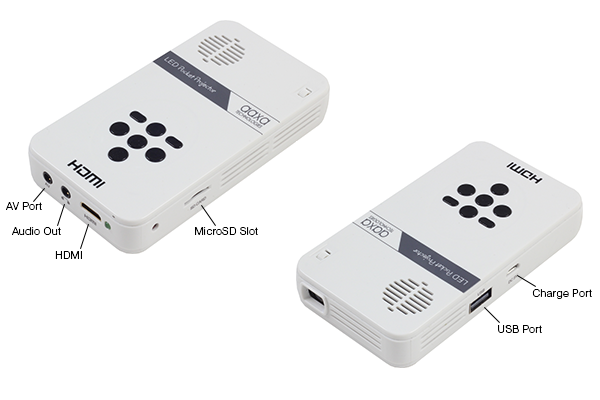

INPUTS / OUTPUTS

Video In: Mini-HDMI

Composite A/V (3.5mm Jack)

Audio Out: 3.5mm Stereo Headphone Jack

USB: Full Sized USB 2.0

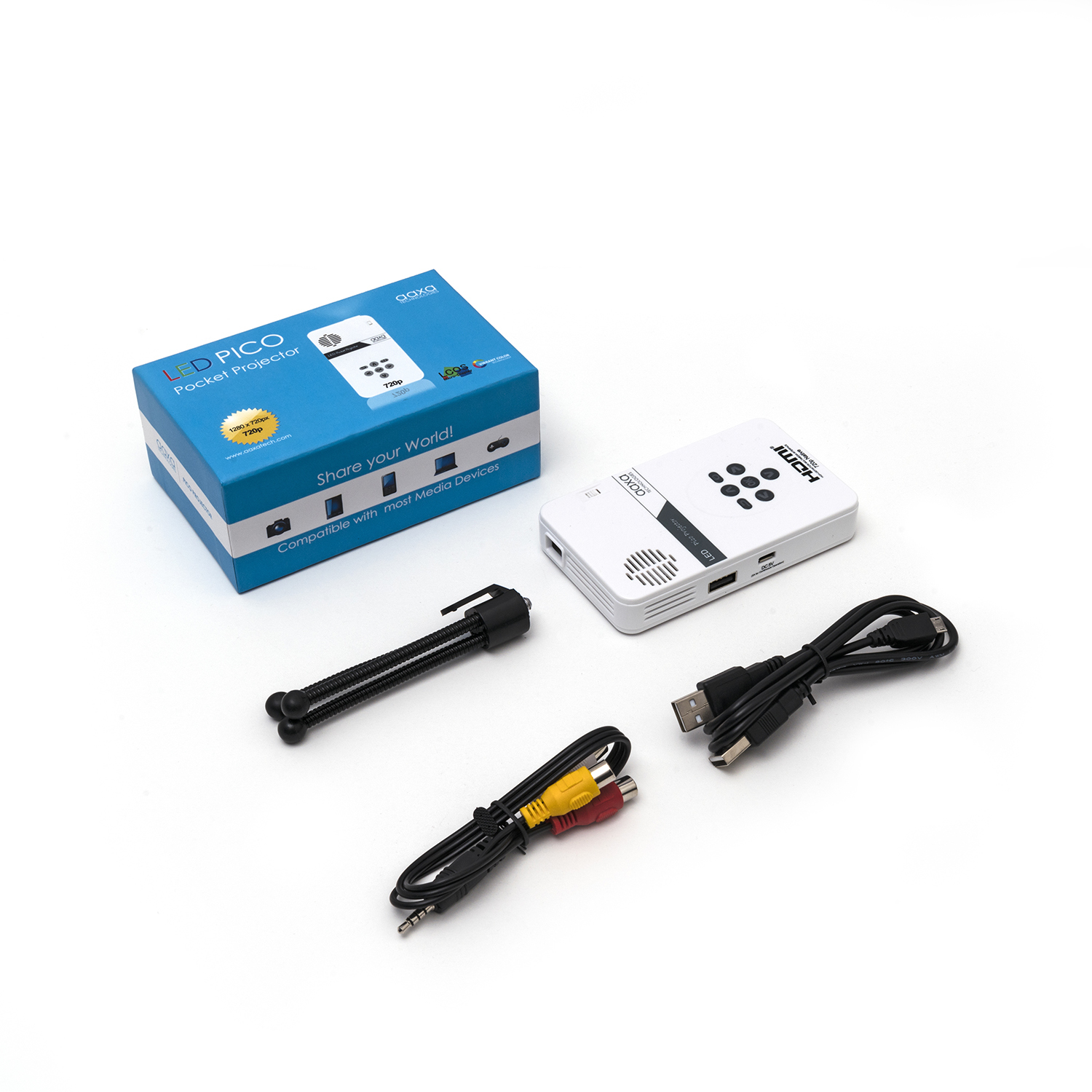

INCLUDED ACCESSORIES

Users Manual

USB Cable

Composite AV Cable

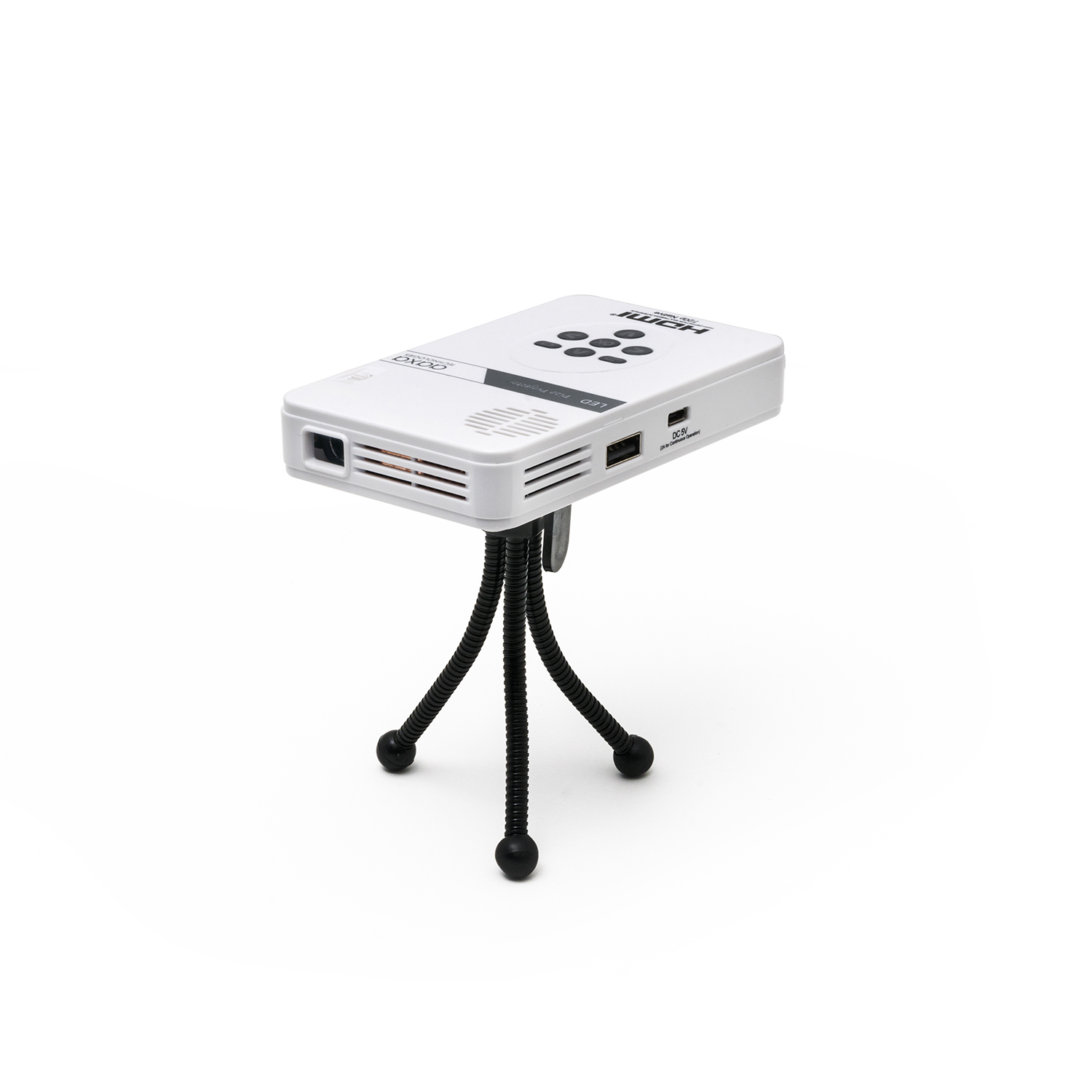

Tripod

SKU	PA-AAXAKP101
Model #	KP-101-01
Barcode #	861495000117
Brand	Aaxa
Shipping Weight	0.3500kg
Shipping Width	0.140m
Shipping Height	0.060m
Shipping Length	0.090m
Shipping Cubic	0.000756000m3
Unit Of Measure	each
Assembled Length	0.110m
Assembled Height	0.030m
Assembled Width	0.060m
