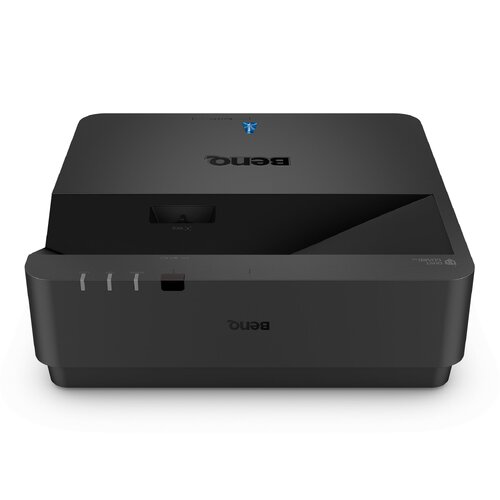

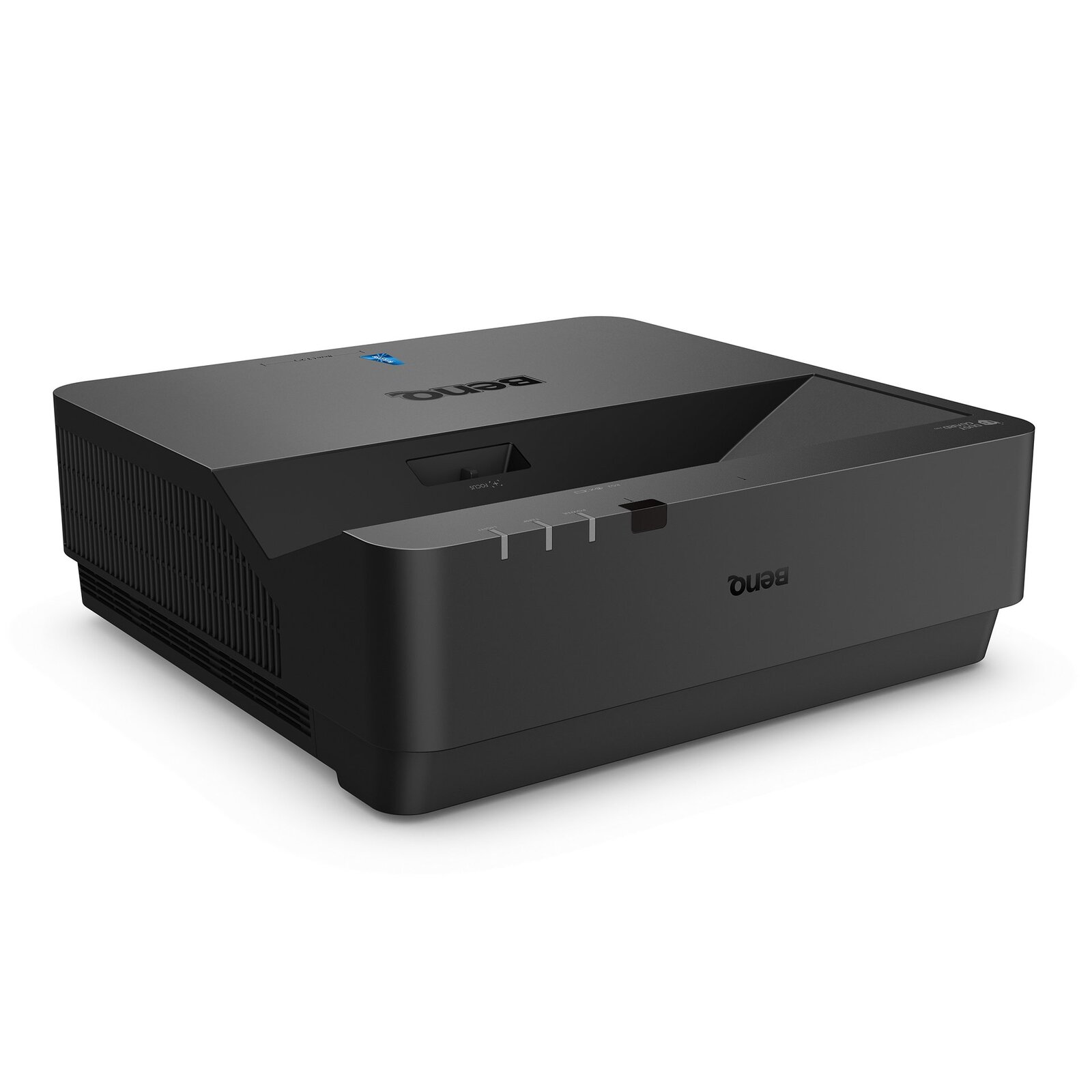

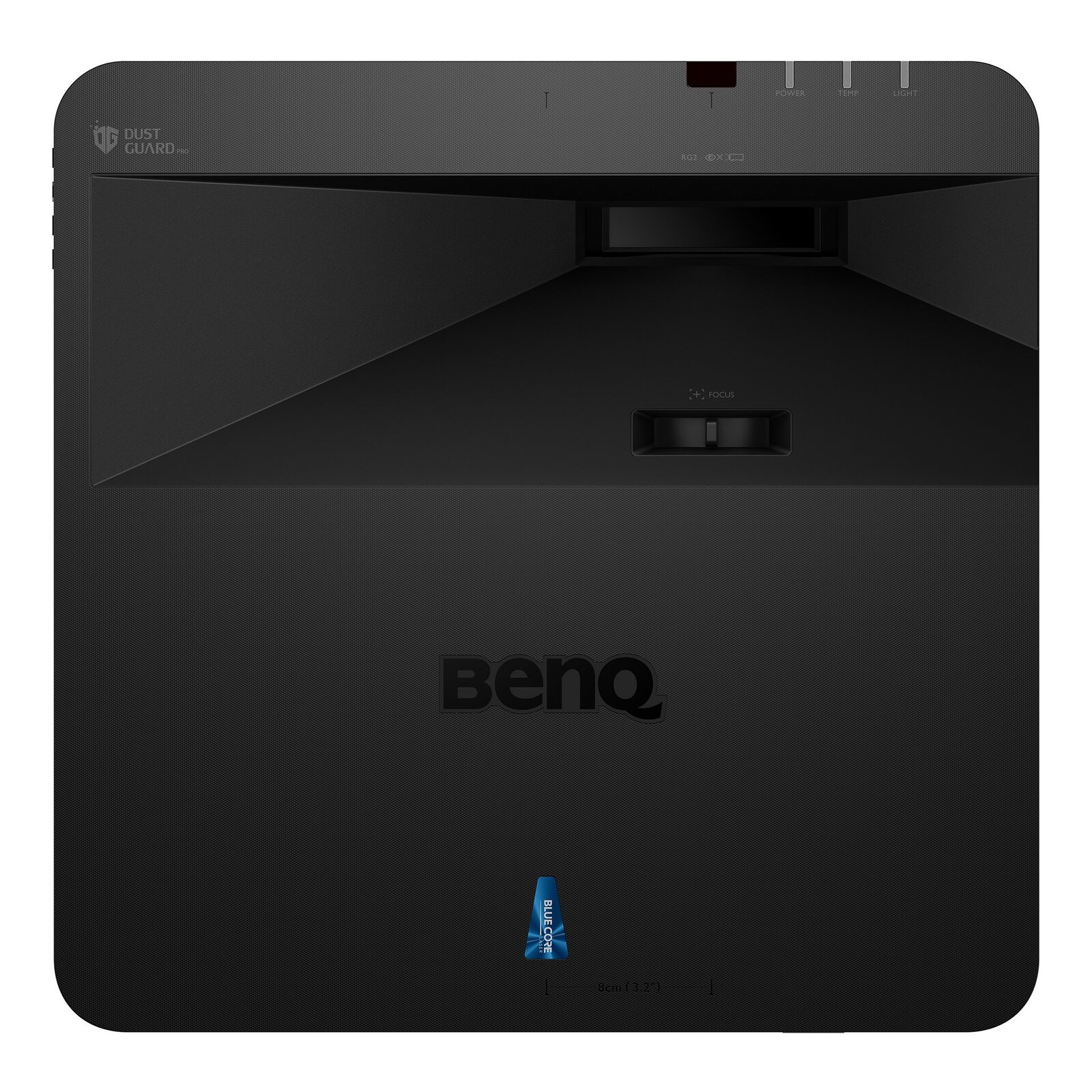

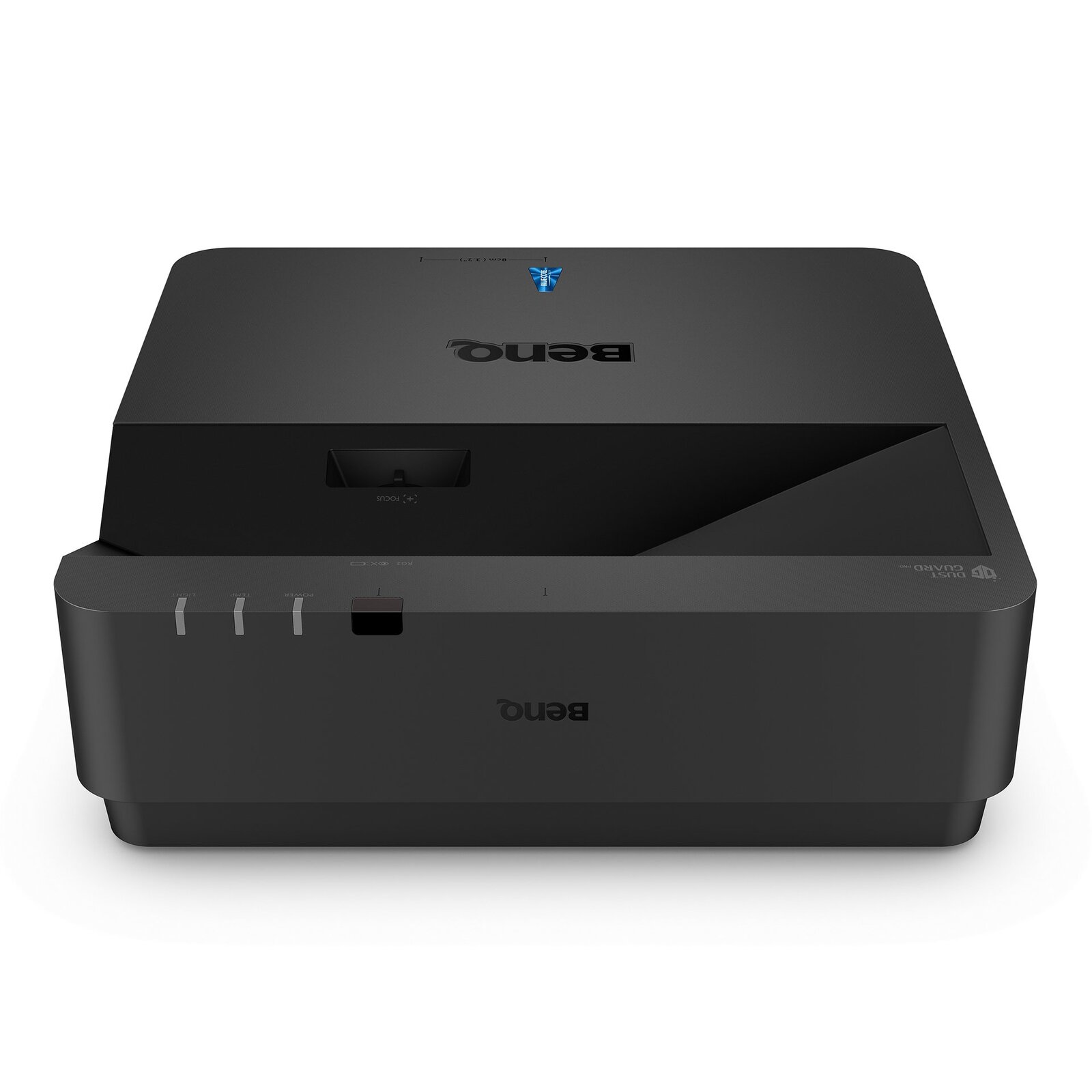

BenQ LU960UST 5200lms WUXGA Installation Projector
True-to-life Images for Totally Immersive Experiences
Zero-deviation alignment of laser diodes boosts luminous flux into the light tunnel, improving light efficacy to 5,200 lumens.
Dual synchronized color wheels utilize an additive yellow segment, stimulating precise RGBY spectra for optimal chromatic performance.
Comprising over two million micromirrors that reflect pure light through the color wheel, the DLP chip is hermetically sealed to resist heat for over 200,000 hours without degradation.
Excellent Installation Flexibility
Ultra Short Throw Design for Unobstructed Viewing Without Space Constraints
Producing larger-than-life images in tight spaces with a 0.25 ultra short throw ratio, LU960UST eliminates distracting shadows and glare for viewers to move freely in front of the screen while enjoying immersive viewing experiences in places with space limitation or retail application with a lot traffic.
Native Resolution Switch and Digital Lens Shift
LU960UST is built with the native resolution switch function so users can change the native resolution from WUXGA into 1080P. When the native resolution is set at 1080P, the vertical lens shift function will be enabled for users to perfectly align images in any challenging venue such as when lights or vents that are located at the ceiling mounting site. Lens shift can move projected images up and down by 5% of screen height.
Digital Shrink and Shift without Distortion
Digital image shrinking and shift lets installers shrink the image to 80% of the original size in 0.5% increments via OSD menu. The image can also be shifted, so installers do not have to reinstall or adjust the projector physically in case the image is not precisely aligned on the desired frame and space.
360° and Portrait Projection Accommodate Different Spaces
Laser technology guarantees reliable projection from any angle. Dynamic installation options such as 360° rotation and portrait applications, allows projection onto ceiling, walls, floors or angled signage.

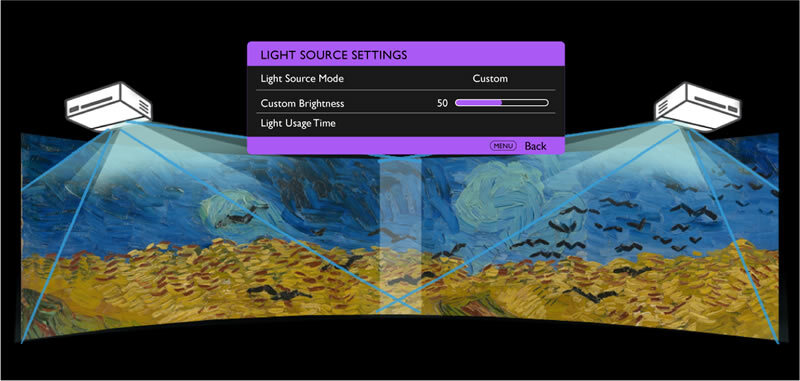

Ensure Consistent Brightness Blending with Custom Light Mode
Custom Light Mode modulates light power output from 40% to 100% under a scale of 80 steps, optimizing the projected image in a variety of ambient lighting situations. It is especially useful for blending consistent brightness across multiple projections.
Wired Remote Control
Wired Remote Control offers projector installers and IT managers extra set-up convenience and ease of operation. The added wired control functionality makes the device a dependable choice for projector installation adjustment
Remote Control Projector ID Setting for Independent Control
Installers and IT managers can assign a specific remote control ID to each projector, avoiding signal interference and unintentional changes when installing multiple projectors in a venue.
3D Sync In /3D Sync out
Connect up to 3 projectors and project 3D content together by a single PC.
HDBaseT for Uncompressed Transmission Up to 100m and Control
Groundbreaking HDBaseT connectivity combines video, audio, RS-232 and LAN signal control signals from multiple sources including: PCs, laptops, document cameras, Blu-ray and DVDs onto a single RJ-45 cable. This ensures seamless transmissions up to 100 meters.
Superior Image Quality
Lag-Busting Response with Fast Mode
Based on expertise gained from experience with near-zero latency displays used in gaming, LU960UST employs Fast mode functions to provide latency as low as 16.67ms. LU960UST can serve the fast-moving dynamic or interactive scenes such as in immersive cycling simulation and amusement park theaters very well.
Laser-Powered Ultra-High Contrast
LU960UST laser projector creates strikingly clear images with stratospherically high 3,000,000:1 contrast ratio for true deep blacks, vivid rich colors and fine subtle details. LU960UST also features spontaneous response, requiring no wait to turn on or resume from blanking in true black for flexible performance capability.
HDMI 2.0 for Supreme Image Quality
LU960UST come with HDMI 2.0 ports that users can now effortlessly project content with much less friction and enjoy greater brightness and contrast range than SDR.
Brightness (ANSI lumens) 5200
Native Resolution WUXGA (1920x1200)
Native Aspect Ratio 16:10
Contrast Ratio (FOFO) 3,000,000:1
Display Color 30-bit (1.07 billion colors)
Light Source Laser
Light Source Life
a. Normal 20000 hrs ,b. ECO 38000 hrs ,d. Dimming 75000 hrs
Throw Ratio 0.25
Zoom Ratio Fixed
Lens F/# = 2.0,f = 2.44 mm
Projection Offset (Full-Height) 122%
Keystone Adjustment 2D, Vertical ± 30 degrees; Horizontal ± 30 degrees ,
Picture Rec. 709 Coverage 92%
Picture Modes 3D ,Bright ,DICOM SIM ,HDR10 ,HLG ,Presentation ,sRGB ,User 1 ,User 2 ,Video
Resolution Support VGA (640 x 480) to 4K UHD (3840 x 2160)
Vertical Scan Rate

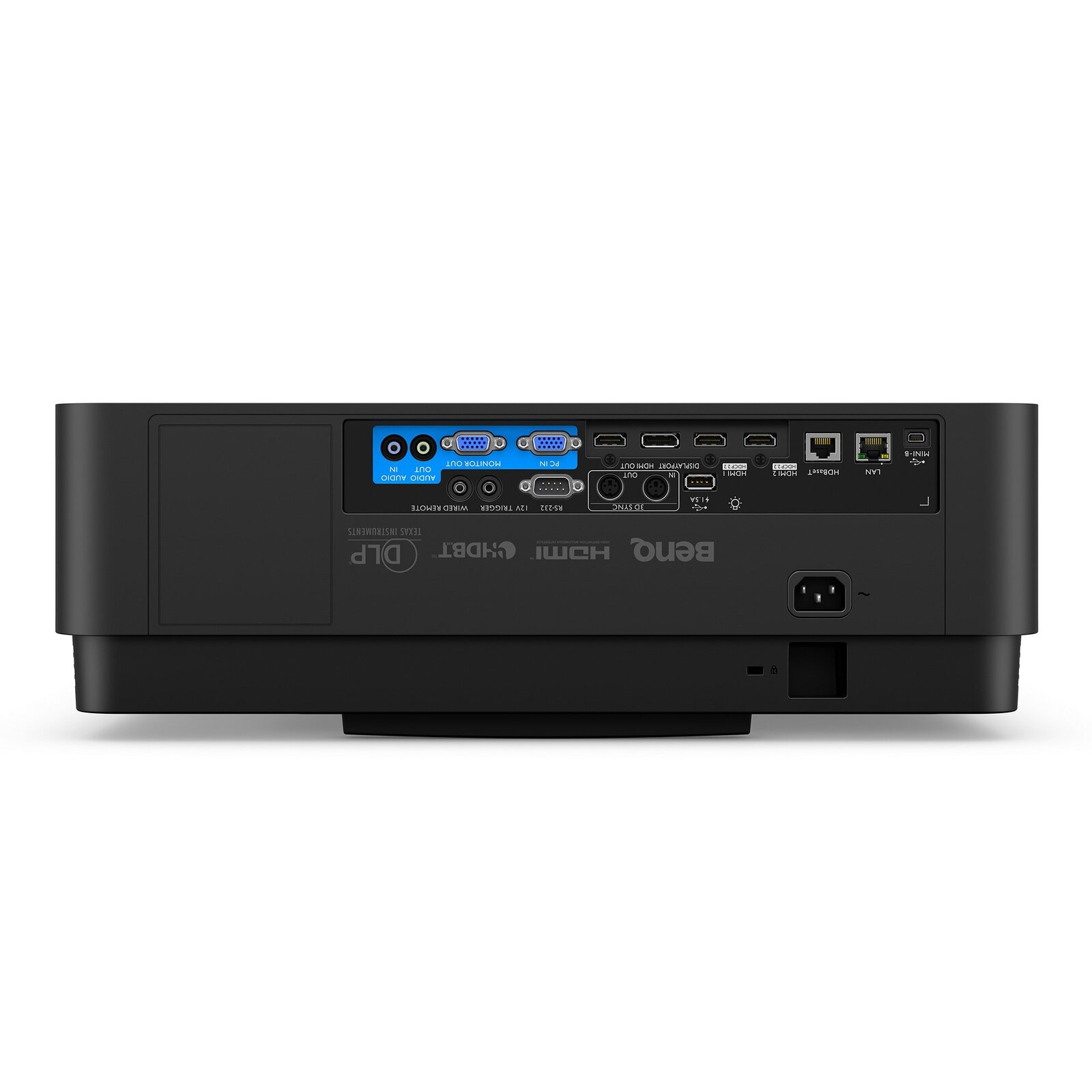

PC in (D-sub 15pin) (x1) ,PC in-1
Monitor out (D-sub 15pin) (x1)
HDMI in (x2) ,HDMI-1 (2.0a/HDCP2.2) ,HDMI-2 (2.0a/HDCP2.2)
Monitor out (HDMI) (x1)
Display Port (x1)
LAN (RJ45) (x1)
HDBaseT (RJ45) (x1) ,Control/Video/Audio
3D Sync in (x1)
3D Sync out (x1)
USB Type A (x1) ,USB Type A-1 (2.0/Power Supply1.5A)
USB Type Mini B (x1) ,USB Type Mini B-1(service)
RS232 in (DB-9pin) (x1)
Wired Remote in (3.5mm Mini Jack) (x1)
DC 12V Trigger (3.5mm Jack) (x1)
Audio in (3.5mm Mini Jack)
Audio out (3.5mm Mini Jack)
AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V)
Stand-by Power Consumption
Network Stand-by Power Consumption
Remote Control w/ Battery
Power Cord (by region)
Warranty Card (by region)
Yes, C SKU only
Universal Ceiling Mount
(Optional) ,Yes, CMG3
Dimension & Weight
Dimensions (WxHxD) (mm)
480 x473 x157.4
Net Weight (kg)
Dimensions (WxHXD) (inch)
18.9 x 18.6x 6.2
Net Weight (lb)
