BenQ MX768 Perfect for every Middle-Sized Venues
The BenQ MX768 is just the projector you need to perfect your presentation in all middle-sized room. Featuring XGA resolution with 4000 ANSI lumen brightness and 13000:1 high contrast ratio, the BenQ MX768 also offers 1.6x big zoom to make installation more flexible and keeps your presentation lookin' great!!
Smart Eco Mode
The SmartEco Mode, which cleverly adjusts the lamp power to maximize power saving by delivering the best contrast and brightness performance using only as much light as needed.
The Eco Blank mode allows teachers to blank the projection screen whenever they need to direct their students’ focus back on them – or simply when the projector is not in use. When activated, this special feature dims the lamp power automatically, lowering the total power consumption by 70%.
No Source Detected Mode
The automatic switch to Eco Blank Mode after the projector is turned on for over three minutes without a display source, eliminating unnecessary energy waste and prolonging the life of the projector lamp.
0.5W in Standby Mode
When inactive, the MX768 keeps power consumption to a minimum with 0.5W standby power, achieving what was once a challenge for earlier projector models. This advancement in energy saving technology certainly helps extend the projector lamp life and lower energy costs.
Diversified Options for Control, Manage
MX768 1.6x big zoom feature opens up space with an impressively wide range of throw distances. All you have to do is simply place the new projector right where your original ceiling mount is. Without adding projector setting re-construction costs to your budget list, you’ll get to save the money for better use.
When the projector is placed off center, the 2D keystone correction feature gives you a wider projector installation flexibility by correcting the trapezoid effect using horizontal and vertical adjustments.
Corner Fit is a flexible and convenient way to correct picture dimensions by adjusting each corner of an image independently.
Featured in selected BenQ projectors, Surface Fit is designed to support projection on non-standard surfaces, such as concave and convex surfaces, opening you to more projection possibilities.
LAN Control is designed to help IT managers perform day-to-day projector maintenance and repair tasks efficiently and effectively – offering them full access and control over every projector directly from their workstations. The MX768 offers seamless support for the Crestron and PJ-Link LAN Control system.
Blu-ray Full HD 3D Supported
MX768 are standard-equipped with DLP Link™-supported 3D projection to offer the same amazing 3D effects seen in 3D movies. The 3D formats supported by the MX768 are 3D field-sequential, 3D frame packing, 3D top-and-bottom and 3D side-by-side. Furthermore, this incredible projector can be connected to a Blu-ray DVD player for even more stunning visual quality.
Hassle-free projector maintenance
the upper lamp door is designed for it managers to replace the projector lamp safely and quickly. should the projector lamp go out in the middle of the class, it can be replaced without delaying the class.
The Instant Restart feature gives teachers a 90-second window to turn the projector back on immediately when it has been switched off by accident – no waiting necessary.
LAN Display offers a cost-effective solution for projector implementation management using a single LAN cable to control and display. This feature also offers simultaneous 4-1 or partial projection display option for better content management for discussions, presentations, training and classroom teaching.
With the microphone input, you will no longer need to shout to get the attention of your audience. All you need to do is plug in the microphone or microphone headset to get your point across!
BenQ DLP® Projectors︱ Long-Lasting Image Perfection with DLP Technology
BenQ DLP Projectors are built with enduring enjoyment in mind, ensuring razor-sharp clarity, ultra-readability and true-to-life color for years to come. We use leading-edge DLP Technology to reflect pure light from millions of micro mirrors on a DMD chip through our advanced color wheels. Since the mirrors are colorless and protected within a nearly-sealed engine, BenQ DLP Projectors have no aging problems and are virtually immune to image decay, consistently delivering picture excellence time and time again. In fact, after 2,000 hours of intense usage, inserting a new bulb produces image quality comparable to a brand-new projector.
Razor-Sharp Clarity with Ultra-Readability
Enabling a 96% fill factor, DLP Technology supplies pixel circuitry behind the pixel, thereby eliminating the thick dark bezels around individual pixels, which diminish color and detail. A higher fill factor and less black border translate to noticeably purer, more intense color and smoother image quality.
Even in lit venues, BenQ DLP Projectors achieve the optimal balance of brightness and color accuracy, with BrilliantColor™ Technology additionally boosting true-to-life colors that captivate. BrilliantColor enables up to six-color processing by incorporating the secondary colors Yellow, Cyan, and Magenta along with primary Red, Blue, and Green. From intense hues to elusive mid-tones like aqua blues and light yellows, your every presentation is rendered in pure, living splendor.
ecoFACTS can tell you how eco-friendly BenQ products are!
Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!
ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.
|Native Resolution||XGA (1024x768)|
|Brightness (ANSI Lumens)||4000 ANSI Lumen|
|Display Color||1.07 Billion Colors|
|Aspect Ratio||Native 4:3 (5 aspect ratio selectable)|
|Image Size (Diagonal)||33" ~ 300"|
|Lamp Mode (Normal/Economic)*||2500/3000/3500 hours|
|Keystone Adjustment||2D, V +/- 30 degree, H +/- 25 degree|
|Projection Offset**||Vertical: 130% ±5%|
|Resolution Support||VGA(640 x 480) to UXGA(1600 x 1200)|
|Vertical Scan Rate||23-120Hz|
|HDTV Compatibility||480i, 480p, 576i, 576p, 720p, 1080i, 1080p|
|Video Compatibility||NTSC, PAL, SECAM|
|Weight (Without Packing / With Packing)||8.6 lbs(3.9 Kg)|
|Dimensions (W x H x D mm)||329x137.2x248.7mm (include feet)
329x127.2x248.7mm (exclude feet)

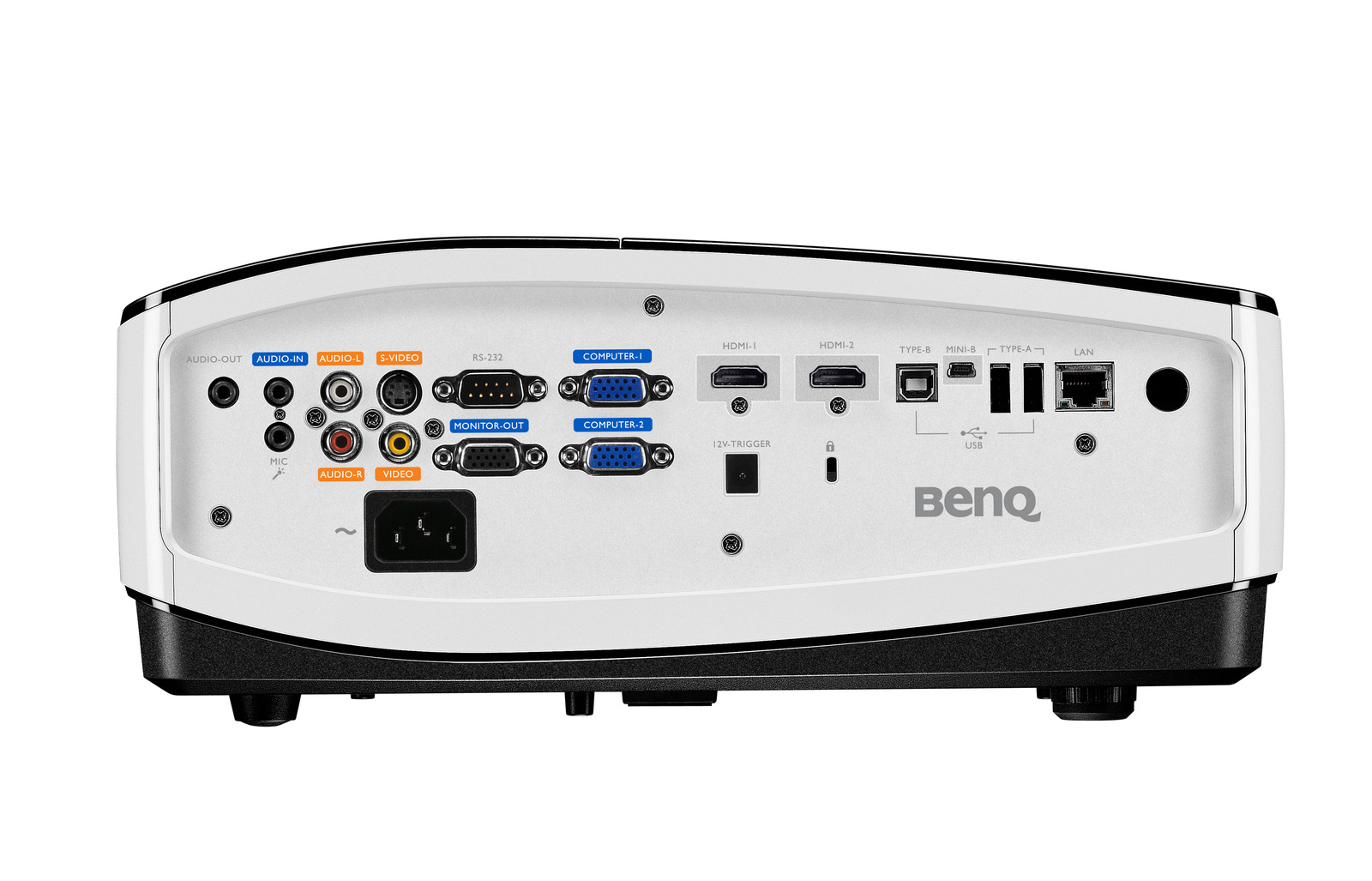

|Interface||Computer in (D-sub 15pin) x 2
HDMI x 2
Monitor out x 1
Composite Video in (RCA) x 1
S-Video in x 1
Audio in (Mini Jack) x 1
Audio in (L/R) x1
Microphone in(Mini jack) x 1
Audio out (Mini Jack) x 1
Speaker 20W x 1
USB (Type A) x 2
USB (Type B) x 1
USB (Type Mini B) x 1
DC 12V Trigger (3.5mm Jack) x 1
RS232 (DB-9pin) x 1
IR Receiver x2 (Front+Rear)
|Power Consumption||400W(Normal), 340W(Eco), Standby<0.5W|
|Audible Noise (Normal/Economic Mode)||36/34 dBA (Normal/Economic mode)|
|Power Supply||AC100 to 240V, 4.2A, 50 to 60 Hz|
|Picture Modes||Dynamic / Presentation / sRGB / Cinema / (3D) / User 1 / User 2|
|Input Terminals||Frame Sequential: Up to 60Hz 720p
Frame Packing: Up to 24 Hz 1080p
Side by Side: Up to 24Hz 1080p
Top Bottom: Up to 60Hz 1080p
|On-Screen Display Languages||Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages)|
|Accessories (Standard)||Carry bag
ower Cord (by region)
Remote Control w Battery
User Manual CD
Warranty Card (by region)
|Accessories (Optional)||Spare Lamp Kit
Ceiling mount kit
|Environmental Notice||Lamp in this product contains mercury.
To dispose of the product or used lamps, consult your local environment authorities for regulations or see www.lamprecycle.org.
|Unit Of Measure||each|
