Pioneering features such as innovative HD Connect connectivity and lens memory augment the already-comprehensive installation advantages as omnidirectional projection dexterity. Similarly, breakthrough high brightness and resolution, a brand-new mechanical shutter, and new cooling / monitoring / maintenance features ensure the highest value and performance for installers, IT managers, and presenters alike in any venue or application.
Optimizing projector performance for all venues and applications, eight types of optical lenses comprising short-throw to long-throw are available. Featuring all-glass construction for ultraclear focus and high apertures for brighter images, these lenses are made in Japan for the highest optical quality control. In addition, an integrated adapter for leading third-party 1-chip DLP lens design means installers can keep the main lens of an existing projector in replacement installation scenarios.
Motorized Zoom, Focus, and Lens Shift
The convenience and wide range of the powered zoom, focus and horizontal / vertical lens shift systems deliver perfectly proportioned images despite installation or placement challenges in any venue. Manual labor to relocate / reconstruct mounting locations is replaced simply by remote-control adjustments that allow omnidirectional adjustments to projection targets.
360° Rotation-Capable Projection
The projector can be tilted vertically at any angle, allowing projection onto ceilings, walls, floors, or angled signage. The possibilities of impactful visuals in shopping centers, galleries, museums, and theaters are endless.
Groundbreaking HDBaseT connectivity combines video, audio, and device control signals from multiple sources including PCs, laptops, document cameras, Blu-ray, DVDs and gaming consoles onto a single CAT5 cable, capable of lossless transmissions up to 100 meters. This incredibly efficient and cost-effective connectivity is also ideal for ceiling-mounted and other permanent installations.
Equipped with ten customizable memory settings for image size, position, and focus, the projector detects and optimizes source material with various aspect ratios onto the projection area. Users can easily recall lens settings without tedious adjustments, such as when maximizing full-screen viewing of different aspect ratios onto a 2.35:1 screen for a cinematic experience.
Precision installation and setup is facilitated by 14 integrated test patterns, which allow easy calibration of linearity, color fidelity, bleed, and distortion.
Even large-scale projection in bright environments remain clear and sharp with BenQ’s high brightness technology powered by BenQ’s unique dual-lamp design. The enhanced luminance boosts vivid color intensity and depth for lights-on presentations allowing audience interaction and note-taking.
Ultra High Resolution up to WUXGA
Far superior to plastic lenses, BenQ High Brightness Projectors feature all-glass lenses for crystal clear focus and bright, vibrant images.
Interchangeable Color Wheel
An additional RGBYCM 6-segment color wheel is included as a standard accessory, which can be used to enhance subtle color details and mid-tones for more lifelike images and video. For operation in very brightly-lit lighting conditions, the built-in RGBYCW 6-segment color wheel ensures vibrant, bright images and presentation clarity.
Employing two lamps for optimal brightness, the Dual-Lamp System also eliminates interruptions during presentations and viewing in case one of the lamps burns out. The system also detects remaining lamp life and balances individual lamp life in single-lamp mode.
Serving as additional protection to the sealed DLP engine, two advanced filters ensure maximum performance even when the projector must be installed during dusty construction periods. The pleated, highly-protective filters can be easily cleaned or replaced from the front or right side of the projector, even if it is ceiling-mounted.
Clear LED Indicators
A set of six LED indicators provide notification for lamp replacement and facilitate other troubleshooting processes.
Multi-Projector Management via LAN (AMX/CRESTRON/PJ-Link )
IT managers can conveniently operate and check the status of multiple remote projectors via LAN to minimize cost and resources. The LAN interface is compatible with PJ-Link, Crestron, and AMX control systems for convenient system integration with various third-party components.
Eco-Conscious Standby Modes
Adhering to strict European regulations, networked standby power consumption is cut down to a miserly 6 watts to reduce environmental impact and total cost of ownership. When in eco mode, power consumption is a miniscule 0.5 watts.
Solid-State Heat-Pipe Cooling System
Utilizing a quiet, simple structure without moving parts or messy liquid chemicals, the copper heat-pipe system provides highly reliable cooling without complicated maintenance or environmental impact.
Intuitive Operation and Total Ease of Use
Quick-access doors for lamp change are located at the rear side of the projector, allowing easy lamp replacement while the projector remains in the mounting bracket or dual stacked. For ceiling mount applications, a safety wire prevents the lamp from falling out. The color wheel is accessible from the top for convenient switching of the RGBYCM/RGBYCW color wheels.
For situations that require total darkness, such as during concerts, the mechanical shutter completely blocks out light to eliminate light leakage. This feature is also ideal for edge blending in multiple projector arrays, allowing color adjustment of the adjacent projector without interference.
Quick-Release Button for Lens Swaps
The hot-swappable lens unlocks instantly with the quick-release button for lens changes.
An integrated capacitor keeps the cooling system operational in case of power outage, preventing heat damage to the lamps. This smart solution helps eliminate unexpected cost and downtime.
Dual Side Handles
Dual side handles located at the bottom side of the projector increase portability and allow two people to carry the projector comfortably.
ecoFACTS can tell you how eco-friendly BenQ products are!
Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!
ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.
|Projection System||DLP |
|Native Resolution||WUXGA (1920 x 1200)
|Brightness (ANSI Lumens)||7000 lmns (Dual lamp, Standard lens)
|Display Color||1.07 Billion Colors
|Lens||Ultra Short Throw (5J.JCY37.001) : F=2.0, f=5.64 mm
Wide Fix(5J.JAM37.011) F=1.85, f=11.6mm
Ultra Wide (5J.JAM37.061) F=1.96~2.3,
Wide Zoom(5J.JAM37.021) F=1.85~2.5, f=18.7~26.5mm
Standard(5J.JAM37.001) F=1.64~1.86, f=26~34mm
Semi Long(5J.JAM37.051) F=1.86~2.48, f=32.9~54.2mm
Long Zoom1(5J.JAM37.031) F=1.86~2.41, f=52.8~79.1mm
Long Zoom2 (5J.JAM37.041) F=1.85~2.48, f=78.5~121.9mm
|Aspect Ratio||Native 16:10 (5 aspect ratio selectable)
|Throw Ratio||Ultra Short Throw (5J.JCY37.001) : 0.377:1
Wide Fix(5J.JAM37.011) 0.76:1(WUXGA)
Ultra Wide (5J.JAM37.061) 0.75~0.93:1(WUXGA)
Wide Zoom(5J.JAM37.021) 1.25~1.79:1(WUXGA)
Semi Long(5J.JAM37.051) 2.22~3.67:1(WUXGA)
Long Zoom1(5J.JAM37.031) 3.58~5.38:1(WUXGA)
Long Zoom2 (5J.JAM37.041) 5.31~8.26:1(WUXGA)
|Image Size (Diagonal)||80"~500"
|Zoom Ratio||Ultra Short Throw (5J.JCY37.001) : Fixed
Wide Fix(5J.JAM37.011) Fixed
Ultra Wide (5J.JAM37.061) 1.25:1
Wide Zoom(5J.JAM37.021) 1.41:1
Semi Long(5J.JAM37.051) 1.65:1
Long Zoom1(5J.JAM37.031) 1.5:1
Long Zoom2 (5J.JAM37.041) 1.55:1
|Lamp Type||350W x 2
|Lamp Mode (Normal/Economic)*||2000/2500 hours
|Lens Shift||Ultra Short Throw (5J.JCY37.001) : -3 ~ 7% Vertical; +-5% Horizontal
Wide Fix(5J.JAM37.011) NA
Ultra Wide (5J.JAM37.061) 0-45% Vertical; +-10% Horizontal
Wide Zoom(5J.JAM37.021) 0-50% Vertical; +-10% Horizontal
Standard(5J.JAM37.001) 0-50% Vertical; +-10% Horizontal
Semi Long(5J.JAM37.051) 0-50% Vertical; +-10% Horizontal
Long Zoom1(5J.JAM37.031) 0-50% Vertical; +-10% Horizontal
Long Zoom2 (5J.JAM37.041) 0-50% Vertical; +-10% Horizontal
|Keystone Adjustment||Vertical ± 30 degrees
|Resolution Support||VGA(640 x 480) to WUXGA(1920 x 1200)
|Vertical Scan Rate||48~120Hz
|HDTV Compatibility||480i, 480p, 576i, 576p, 720p, 1080i, 1080p
|Video Compatibility||NTSC, PAL, SECAM
|Weight (Without Packing / With Packing)||21KG (Without lens)
|Dimensions (W x H x D mm)||510 x 230 x 540 mm

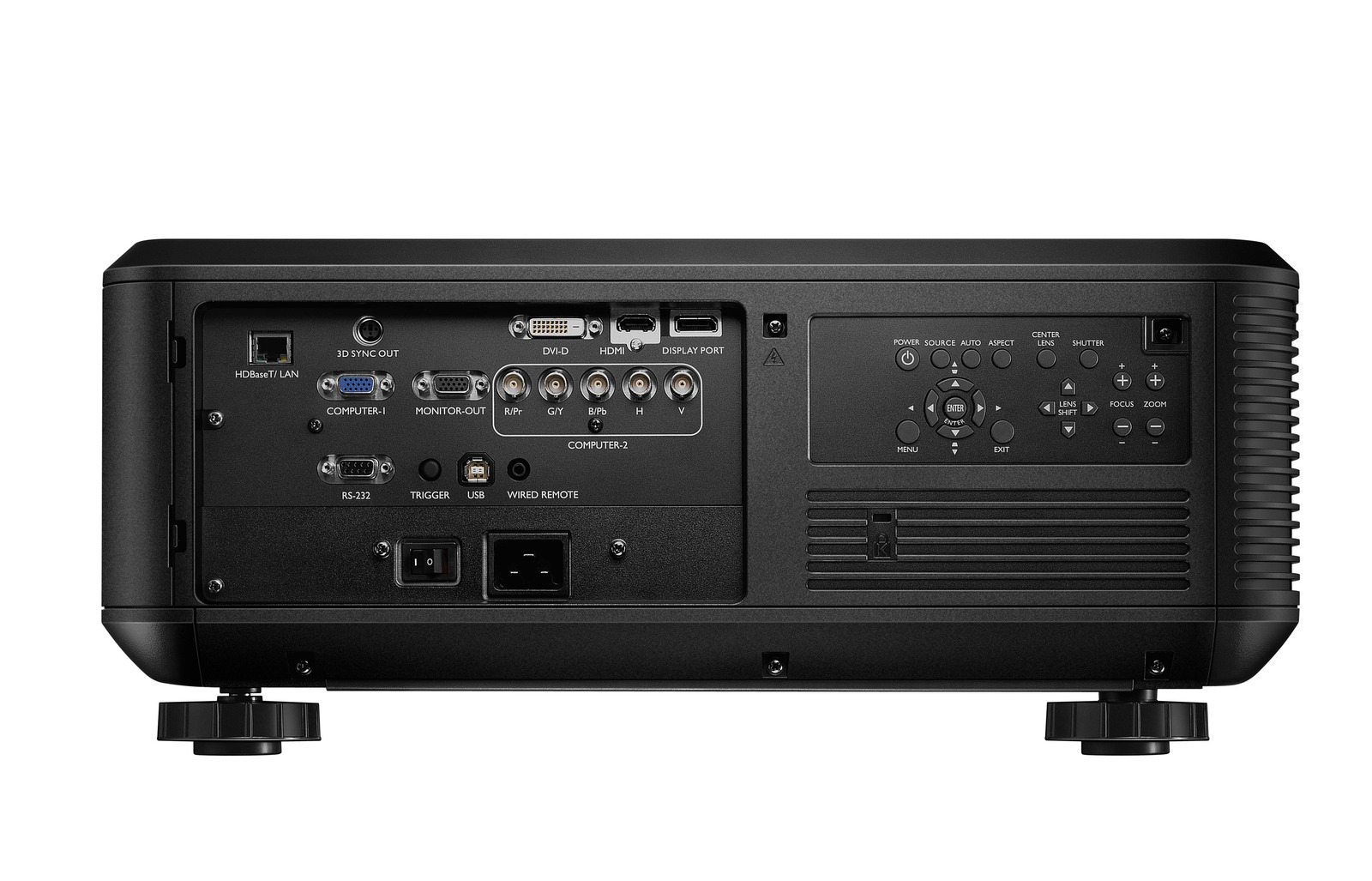

|Interface||Computer 1 in (D-sub 15pin) x 1
Computer 2 in (5BNC, R/G/B/H/V) x 1
Monitor out (D-sub 15pin) x 1
HDMI x 1 (1.4a)
DVI-D in x 1
LAN (RJ45) x 1 (LAN Control)
USB (Type Mini B) x 1 (Download)
HD Connect x 1 (Share with RJ45)
DisplayPort x 1
12V Trigger x 1
RS232 (DB-9pin) x 1
Wired Remote x 1
IR Receiver x 2 (Front+Rear)
|Power Consumption||AC100 V, 710W (Standby Power <0.5W)
AC 220-240 V, 670W (Standby Power <0.5W)
|Audible Noise (Normal/Economic Mode)||41/36/38/35 dB (Dual Lamp Normal/Dual Lamp Eco/Single Lamp Normal/Single Lamp Eco)|
|Power Supply||AC100 V, 7.2A, 50 to 60 Hz
AC 220-240 V, 2.9A, 50 to 60 Hz
|On-Screen Display Languages||ENGLISH/ 繁體中文/ FRANÇAIS/ ESPAÑOL/ DEUTSCH/ ITALIANO/ 简体中文/ 한국어/ 日本語 / РУССКИЙ/Português/ svenska(12 Languages)|
|Accessories (Standard)||Remote Control without Battery
6 Segments Color Wheel
Power Cord (by region)
User Manual CD
Quick Start Guide
Warranty Card (by region)
VGA(D-sub 15pin) Cable
|Accessories (Optional)||Spare Lamp Kit 5J.JC705.001
Ceilling Mount 5J.JCY10.001
Ultra Short Throw (5J.JCY37.001)
Ultra Wide (5J.JAM37.061)
Long Zoom2 (5J.JAM37.041)
Lamp in this product contains mercury.
|Unit Of Measure||each|
