Designed for today’s BYOD classroom, the Epson EB-600 series takes classroom collaboration further. Offering 3x Higher Colour Brightness1 than competitive models, Epson® 3LCD projectors and displays ensure bright, vivid images. It features optional wireless functionality (module sold separately) and advanced connectivity, so teachers can easily share content from multiple student devices, including Chromebooks — up to four at once with Moderator software2. Plus, its lamp lasts up to 10,000 hours in ECO Mode.
3 x Brighter Colours and reliable performance – 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness
Bright Images – 3,500 lumens colour/white brightness
Amazing images – WXGA resolution (1280 x 800) and 16:10 format
Ultra-short throw presentation display – get a 100" image from as little as 28cm away with virtually no shadow interference
Simultaneously display and control multiple device screens – wirelessly share content from up to four devices, including Chromebooks, with Moderator software
Manage your display and send announcements remotely – easy network connectivity; software included
Versatile connectivity – 3x HDMI® supports multiple high-definition A/V devices, with MHL® support
Powerful sound to engage every student – built-in 16 W speaker and microphone input; or, use external speakers, even in Standby Mode
10,000Hr maintenance cycle – the lamp and filter lasts up to 10,000 hours in ECO Mode
All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD's 3-chip architecture dedicates an entire chip to process each primary colour – red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic images and video all delivered with 3LCD’s true-to-life colour.
3x Brighter Colours with Epson*
Up to 3x Brighter with Epson Projectors*
Epson projectors use 3LCD Engines that have no colour wheel with a white segment and therefore don't force a tradeoff between white and colour brightness.
In fact, Epson projectors have up to 3x Brighter Colours than their leading competitive 1-chip DLP projectors*. If you are looking for business and education projectors or 720p home entertainment projectors, know that choosing Epson projectors means up to 3x brighter colours. If you are looking for 1080p home entertainment projectors, you consistently get 2x and up to 3x Brighter Colours than competitor 1-chip DLP projectors*.
All Epson projectors list both White Brightness and Colour Brightness specifications, and all have high Colour Brightness.
* Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.
With brightness up to 3,500 lumens, the screen is easily viewed from anywhere in the classroom, even without dimming the lights.
Readability from Anywhere in the room
Ensure every student in the classroom can easily read and understand the information you're sharing. Offering clear, easy-to-see images up to 100", Epson displays help students learn and retain information, regardless of where they sit.
Wide viewing angle
Clear images can be seen from any angle with no limitations of reflective glare. Projected images also allow you to get closer to the image without straining your eyes.
Featuring native resolution of WXGA (1280 x 800), the Epson EB-600 series delivers high quality images and crisp, sharp text without any distortion.
Finger-touch and Dual Pen
Use your fingers to annotate directly onto the screen. Epson's interactive pens are now even more responsive and easy to use. With the new dual pens, teacher and student or two students can work simultaneously using different attributes.
Make any flat surface interactive
Transform existing whiteboards, plain walls, and tables into interactive workspaces. Make the most of your environment with this flexible solution.
Quick start up
Simply plug in and turn on – the PC-free annotation mode means that teachers don't even need to power up their computers.
Document camera control
Connect the Epson ELPDC21 document camera to an EB-600 Series projector to easily capture and displays books, 3D objects and experiments. You can also add annotations directly to a projected live image without the need of a PC. To simplify the process you can operate the document camera from the toolbar on the projection screen.
Save lesson notes
You can save projected images to USB as jpeg files. Any annotations written over an image using PC Free Annotation can be saved as well.
A timer can be easily accessed from the toolbar and displayed on the screen. Whether it's answering problems or holding a group discussion, you can easily manage the time with the whole class.
Interactive multi projection
Install two EB-600 series projectors side by side and enjoy the benefits of a huge wall-size area to use as an extended whiteboard. Or, use the included Easy Interactive Tools (EIT) software to achieve a giant display on which you can create or annotate content.
Epson iProjection™ via optional wireless dongle
Epson iProjection is the wireless display solution for today's BYOD classrooms. With true multi-platform support, students can wirelessly display content from Chromebooks, PCs and Mac® computers, as well as iOS and Android devices.
When used in conjunction with Epson Multi-PC projection plus Moderator device management software4, up to 50 users can connect to the projector simultaneously, displaying content from as many as four at a time. It's the perfect tool for displaying a variety of content — or for comparing students' work side by side.
Networking features that take teaching to the next level
Manage up to 1,024 Epson networked displays using the included EasyMP® Monitor software or Crestron RoomView® — saves time and money
Update display firmware in-house via the network, a USB cable, or a USB flash drive — eliminates the need for external service centre repairs; saves time and money
Send updates or announcements remotely to up to 1,024 Epson networked displays using the Message Broadcasting plug-in for EasyMP Monitor
Connect your display to an access point to share it with the entire class, without running more cables
|PRODUCT NAME||Epson EB-695Wi|
|Projection Technology||Epson 3LCD, 3-chip technology|
|Projection System||RGB liquid crystal shutter projection system|
|LCD Panel||0.59-inch with (D9, C2 Fine)|
|Zoom Ratio||1.0 - 1.35 (Digital Zoom)|
|Screen Size (Projection Distance)||60" to 100" [35.4 to 60.1cm]
74.3" screen 44.3cm
|Throw Ratio||0.28 (Zoom:Wide)
|Projection Lens Type||No Optical Zoom / Focus (Manual)|
|Projection Lens F Number||1.6|
|Projection Lens Focal Length||3.7 mm|
|Focus Method||Manual Focus|
|White Light Output||3,500 lumens|
|Colour Light Output||3,500 lumens|
|Native Aspect Ratio||16:10|
|Keystone Correction||Vertical: -3 to +3 degrees
Horizontal: -3 to +3 degrees
|Colour Reproduction||Up to 1.07 billion colours|
|Colour Processing||10 bit|

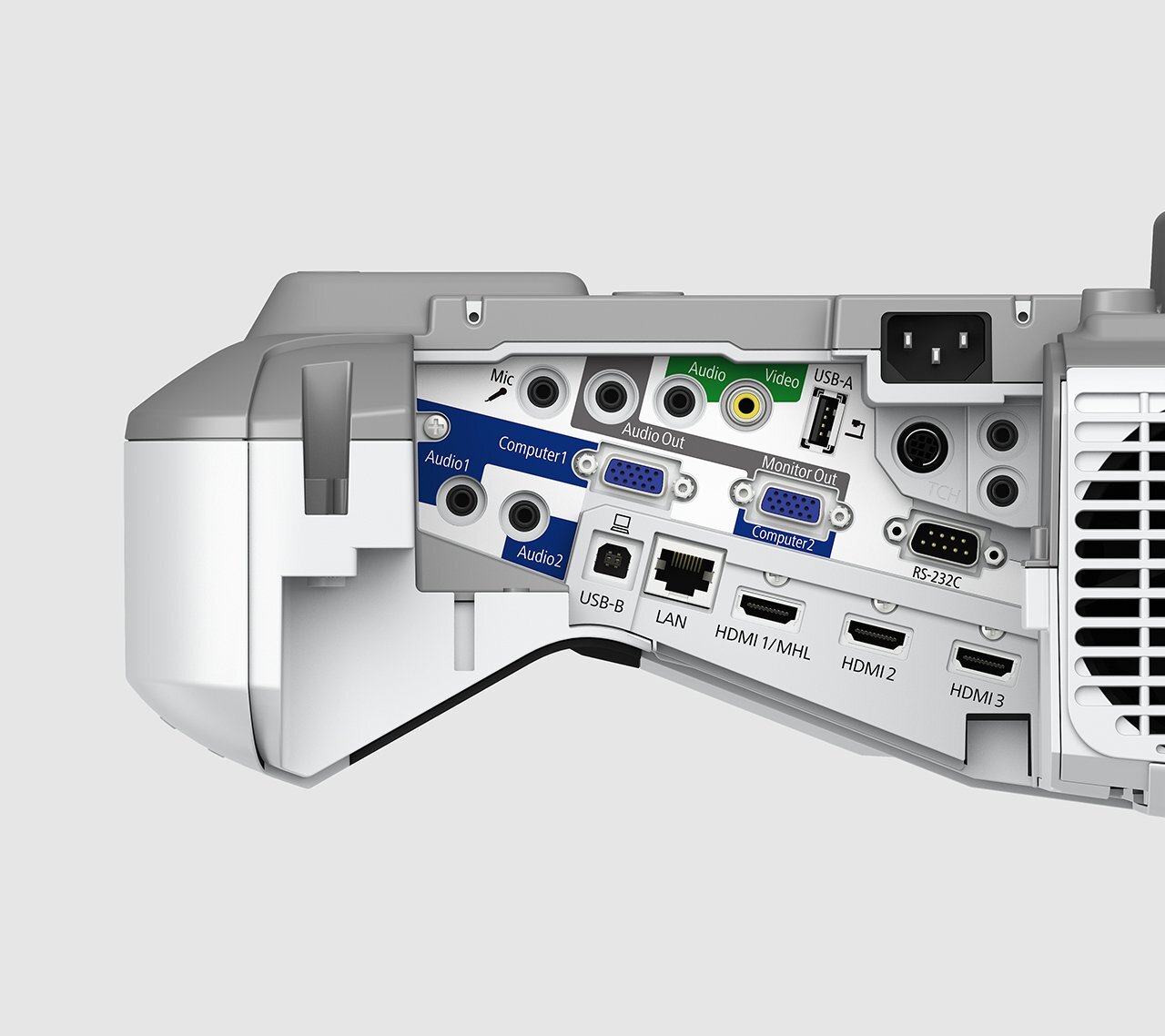

|Video I/O - Input||2x RGB D-sub 15pin
*Computer 2 in common with Monitor Out
1x RCA Composite
|Video I/O - Output||1x RGB D-sub 15pin
*Computer 2 in common with Monitor Out (Output signal : Computer 1 only)
|Digital Input||3x HDMI (1 supports MHL)|
|Audio I/O - Input||3x Stereo mini|
|Audio I/O - Output||1x Stereo mini|
|Mic I/O - Input||1x Stereo mini|
|Control I/O||1x RS-232C D-sub 9pin
Interactive sync stereo mini - 1x In, 1x out
Touch Unit control - 1x Min DIN 8pin
|USB I/O||1x USB Type A (for USB Memory, USB Document Camera, Firmware update, Copy OSD settings)
1x USB Type B (for USB display, mouse, K/B, Control, Firmware update, Copy OSD settings)
|Network I/O:||1x RJ45 (100Mbps) Wired LAN
1x USB Type A (for Optional ELPAP10 LAN unit)
|Wireless Connectivity||Optional ELPAP10 Wireless LAN unit|
|Speaker Output||Monaural: 16 W x 1|
|EasyMP Network Projector control and projector management via network||Yes|
|AMX Device Discovery||Yes|
|Crestron Integrated Partner||Yes|
|Extron IP Link||Yes|
|EasyMP Network Multi PC Projection||Yes|
|Easy Interactive Function||Supported screen size - 60"-100"
Supports multiple screens
Technology - Infrared
Digital Pen (Easy Interactive Pen 1,2), Finger (1-6 fingers)
Pen: Auto / Manual (25points), Finger: Manual (16 points)
|Finger Interactive Unit||Dimension: 210x95x51mm
Technology: Infrared laser (class 1)
Adjustment: Yes (manual)
Control I/O: 1x Min DIN 8pin
Security: Kensington® - lock provision
|PC Interactive Tool||Multiple pen/finger support: Yes (with Easy Interactive Tools Ver.4.20)
Easy Interactive Pen: Up to 2.
Finger: Up to 6
|PC Free Annotation Tool||Multi-pen support: Yes
Easy Interactive Pen: Up to 2.
Finger: Up to 2
|Firmware update||Network via LAN cable, USB A via USB thumb drive, USB B via USB cable|
|Copy OSD settings||Network via LAN cable, USB A via USB thumb drive, USB B via USB cable|
|Quick Wireless Connection||Yes|
|Wireless LAN Security||WPA/WPA2-Personal (with optional Wireless LAN Unit)|
|Direct Power On||Yes|
|Auto Power On||Yes (Computer1,USB-B)|
|Security||* Kensington® - lock provision
* Padlock & Security cable hole
* Wireless LAN unit lock
* Password protect function (Power On, Network, Protection of User logo)
|Colour Modes||Dynamic, Presentation, Cinema, sRGB, BlackBoard|
|Integrated Mount||Optional (ELPMB46)|
|Dimensions (excl feet) WxDxH||367 x 400 x 149mm|
|Lamp Warranty||1 Year (or 750 hours)*|
|Projector Warranty||3 Years|
|Lamp Hours||5,000 hours (Normal)
10,000 hours (ECO)
|Lamp Type||250W UHE|
|Power Consumption: Lamp On||354W (Normal)
|Power Consumption: Networked Standby||2.3W|
|Power Consumption: Energy Saving||0.37W|
|Air Filter maintenance cycle||up to 10,000 hours|
|Fan Noise Level||35dB (Normal)
|* Whichever comes first. For more information visit Epson Projector Warranty|
|WHAT'S IN THE BOX|
|Main Unit||EB-695Wi Projector|
|Power Cable||Yes 5M|
|USB Cable||Yes 5M|
|Battery for Remote Control||AA x 2|
|Easy Interactive Pen||2 Pens|
|Battery for Easy Interactive Pen||AA x 2|
|Pen tip (Soft)||x4|
|Pen tip (Hard)||x2|
|Pen tip Holder||Yes|
|Light Curtain Finger Touch Unit||Yes|
|Feet for main unit||No|
|Password Protect sticker||Yes|
