BenQ MW826STH High Brightness Contrast Sharp Text Projector
Advanced Interactive Instruction for Leading Schools
Uncompromised High Brightness
MW826STH produces 3,500 high ANSI lumen brightness and resolution for perfect projection performance with crisp images and sharp text even in bright lecture room. High brightness provides clear content under high ambient lighting, allowing lights to be kept on during classes for note taking and interactive collaboration.
Crisp Readability via High Contrast Ratio
Ideal for text, numbers, and tables widely used in instruction, BenQ education projectors leverage the native DLP advantage of digitally controlled micromirrors on the DMD chip. By completely toggling off reflective micromirrors to generate deep true blacks, BenQ education projectors create high native contrast ratio for sharp readability and crisp resolution at every single sub-pixel.
Enduring Picture Perfection from DLP Technology
With sealed design that protects the DLP chip from dust-induced image degradation and the industrial-grade durability of DLP projection technology, BenQ education projectors are capable of maintaining long-lasting picture quality by eliminating color decay. Unlike non-DLP projectors, BenQ education projectors deliver premium picture quality equivalent to the result from brand new projectors after lamp replacement.
High DLP Pixel Fill Factor for Superb Viewing Experience
BenQ DLP projectors feature class-leading high fill factor, minimizing black borders around each pixel to eliminate the dreaded “screen door effect” commonly observed in non-DLP projectors. BenQ education projectors produce superior definition and clarity in small-size text and fine details for beautifully rendered images instead of pixelated graphics.
BenQ education projectors offer a range of resolutions and projected image sizes to meet diverse classroom needs. Featuring crisp image quality up to 120 inches, our ultra-short throw education projectors deliver increased classroom versatility at reduced costs.
Enabling Interactive Learning
Interaction on Any Surface
PointWrite™ technology transforms BenQ education projectors into collaborative platforms that turn any surface into an interactive whiteboard. Seamless integration of PointWrite™ kit and QWrite software with BenQ projectors encourages a truly collaborative learning environment where students and teachers work together using intuitive templates along with annotation tools.
Multi-Touch & Multi- Screen Drawing
With enhanced multi-touch capability for pens or fingers, two PointWrite™ projectors can be used in conjunction to double the interactive projection surface, creating vast new opportunities for interactive learning in modern digital classrooms. In QWrite Whiteboard Mode, teachers can also run different applications or display, view, and annotate across two surfaces.
Reliably accurate in any ambient lighting, PointWrite™ auto calibrates and saves its settings immediately when plugged into a computer’s USB port, remaining ready with no manual configuration or complicated training for teachers.
Windows Gesture Support
PointWrite™ projectors support intuitive Windows gestures such as zooming in and out or scrolling while browsing webpages, pictures or Google Maps. All multi-touch commands and gestures are supported for Windows 8 or above and future applications.
Unobstructed Instruction Without Space Constraints
Offering a big screen in short distance with a 0.49 short-throw ratio, MW826STH eliminates distracting shadows and glare for students and teachers to engage and collaborate freely in front of the board.
Anti-Dust Accumulation SensorResists Dust Buildup
Incorporating color wheel sensors with an ingenious anti-dust accumulation feature, MW826STH prolongs optimal performance by rejecting dust which can accumulate on traditional sensors to block the IR signal and cause flickering, abnormal colors, or even shutdown.
Display Brightness (ANSI lumens) 3500
Native Resolution WXGA (1280x800)
Native Aspect Ratio 16:10
Contrast Ratio (FOFO) 20,000:1
Display Color: 30-bit (1.07 billion colors)
Light Source Lamp
Light Source Life: a. Normal 6000 hrs ,b. ECO 10000 hrs ,c. SmartEco 10000 hrs ,d. LampSave 15000 hrs
Throw Ratio: 0.49
Zoom Ratio: Fixed
Lens: F/# = 2.6,f = 6.9 mm
Projection Offset (Full-Height): 105%
Keystone Adjustment: 1D, Vertical ± 30 degrees
Picture Modes: 3D ,Bright ,Cinema ,Presentation ,sRGB ,User 1 ,User 2
Input Lag: 34 ms (1080p@60Hz)
Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
Horizontal Frequency: 15K~102KHz
Vertical Scan Rate: 23~120KHz

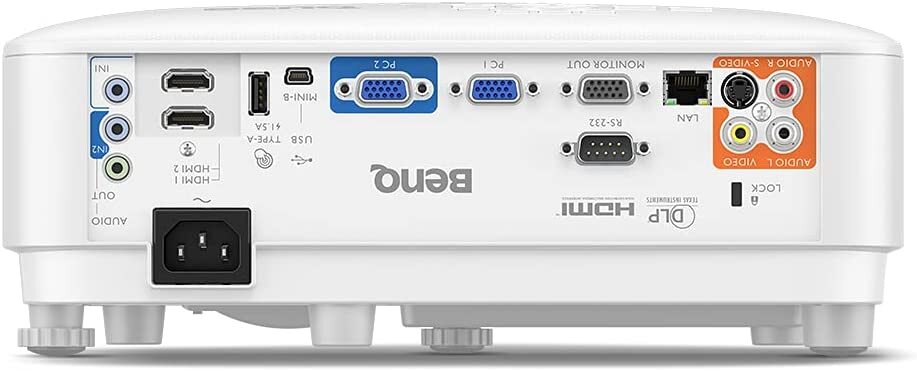

PC in (D-sub 15pin)
Monitor out (D-sub 15pin)
Composite Video in (RCA)
S-Video in (Mini DIN 4pin)
(x2) ,HDMI-1 (1.4a/HDCP1.4) ,HDMI-2 (1.4a/HDCP1.4/MHL)
USB Type A
(x1) ,USB Type A-1 (2.0/Power Supply1.5A)
USB Type Mini B
(x1) ,USB Type Mini B-1(service/Page up&down)
RS232 in (DB-9pin)
Speaker: (x1) ,10W
(3.5mm Mini Jack)
Audio out (3.5mm Mini Jack)
Operating Temperature: 0~40℃
Power Supply: AC 100 to 240 V, 50/60 Hz
Acoustic Noise (Typ./Eco.)(dB): 33/29
Remote Control w/ Battery
Power Cord (by region)
VGA(D-sub 15pin) Cable
Quick Start Guide
Warranty Card (by region)
(Optional) ,All SKU
Dimension & Weight
Dimensions (WxHxD) (mm): 296 x120 x239
Net Weight (kg): 2.6
Projection System: DLP
