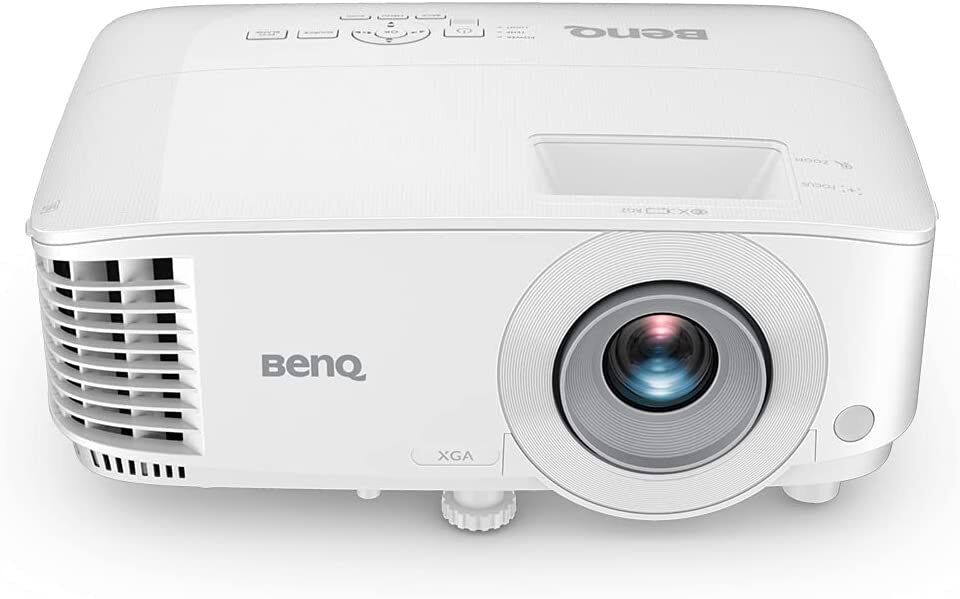

BenQ MX560 High Brightness High Contrast Projector

All-in-One Solution that Solves It All
No more fuzzy texts and figures
Perfect Combination of Stunning Clarity and Crafted Colors
Finest Precision Glass Lenses for Crystal-Sharp Clarity
BenQ only uses high-quality glass lenses to minimize chromatic aberration, ensuring long-term image quality in brilliant clarity.

HDMI for Fast Transmission
HDMI connectivity provides faster data transmission to digital devices

Entering the Era of Digital Transformation
Dual Connectivity,
Dual Convenience

Dual HDMI offers more flexible connectivity between devices

Time-Saving Convenience
Automatically turns on the projector once the HDMI input signal is detected

High brightness & contrast images even in well-lit meeting rooms
4000 Lumens,
20000: 1 Contrast

Crystal-Clear Images
All glass lenses for image quality in brilliant clarity

Clear Data Review
Data Review Mode makes every letter and digit leap to the eye with clarity

Detailed Infographics
Exclusive Infographic Mode showcases the text and graphics in detail

Clear User Interface
Intuitive windows design to display the contents clearly

Auto Vertical Keystone for Perfect Alignment
Project the image from any angle and get the perfect squared image with Auto Vertical Keystone. It’s to quick to eliminate the blurry images and get to the point in the meeting

Lamp Life up to 15,000 hrs
SmartEco Mode saves lamp power up to 70%

Power-Saving, Energy-Saving
Auto Power Off shuts itself off for power savings after the projector detects no input signal for 20 minutes. (This can be also operated via the OSD)

Easy Setup
Ergonomic retractable foot for easy setup

Get Instant ON
Turn on the projector again within 90 secs after power off and you can start it up in no time

Enhanced Security
Kensington Lock for physical security to discourage theft

(PA-BENQMX560)

All Specifications

Projection System

Projection System DLP

DMD size 0.55"

Marketing

Product Features 1.1X, TR 1.96-2.15, HDMIx2

Display

Native Resolution XGA (1024x768)

Native Aspect Ratio 4:3

Brightness (ANSI lumens) 4000

Contrast Ratio (FOFO) 20000:1

Selectable Aspect Ratio 16:10,16:9,4:3,Auto,Real

Display Color 30 Bits (1,07 billion colors)

Light Source Lamp

Light Source Wattage 203W

Light Source Life a. Normal 6000 hrs,b. ECO 10000 hrs,c. SmartEco 10000 hrs,d. LampSave 15000 hrs

Projection System DLP Single 0.55" XGA

Resolution 1024 x 768 pixels

Brightness (ANSI lumens) 4000 ANSI Lumens

Contrast Ratio (FOFO) 20000:1

Display Color 30 Bits (1,07 billion colors)

Native Aspect Ratio Native 4:3

(5 aspect ratio selectable)

Light Source Lamp

Light Source life* Normal 6000 hr

Economic 10000 hr

SmartEco 10000 hr

LampSave 15000hr

Resolution Support VGA(640 x 480) to WUXGA_RB(1920 x 1200)

Optical

Throw Ratio 1.96~2.15

Zoom Ratio 1.1x

Lens F/# = 2.56 ~ 2.68, f = 22 ~ 24.1 mm

Projection Offset (Full-Height) 110%

Keystone Adjustment 1D, (Auto) Vertical ± 40 degrees

ANSI Uniformity (Min.) -45%

Clear Image Size 60"~180"

Image Size 30"~300"

Throw Ratio 1.96~2.15

Zoom Ratio 1.1X

Lens shift NA

Projection Offset** 110%

Projection Size 60"~150"

Keystone Correction Auto ID, Vertical +/- 40 degrees

Horizontal Frequency 15K~102KHz


Picture Modes 3D,Bright,Infographic,Presentation,Spreadsheet,sRGB,User 1,User 2

Color Wheel Segment (Lamp) 6 segment (RGBYCW)

Color Wheel Speed 2X (60Hz),3X (50Hz)

Compatibility

Input Lag 1 frame (16.67ms) 60Hz

Resolution Support VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking

HDTV Compatibility 1080i,1080p,480i,480p,576i,576p,720p

Video Compatibility NTSC,PAL,SECAM

3D Compatibility Frame Packing,Frame Sequential,Side by Side,Top Bottom

Resolution Support VGA(640 x 480) to WUXGA_RB(1920 x 1200)

Horizontal Frequency 15K~102KHz

Vertical Scan Rate 23 ~ 120 Hz

HDTV Compatibility 480i, 480p, 576i, 567p, 720p, 1080i, 1080p

Video Compatibility NTSC, PAL, SECAM, SDTV (480i/576i), EDTV (480p/576p), HDTV (720p, 1080i/p 60Hz)

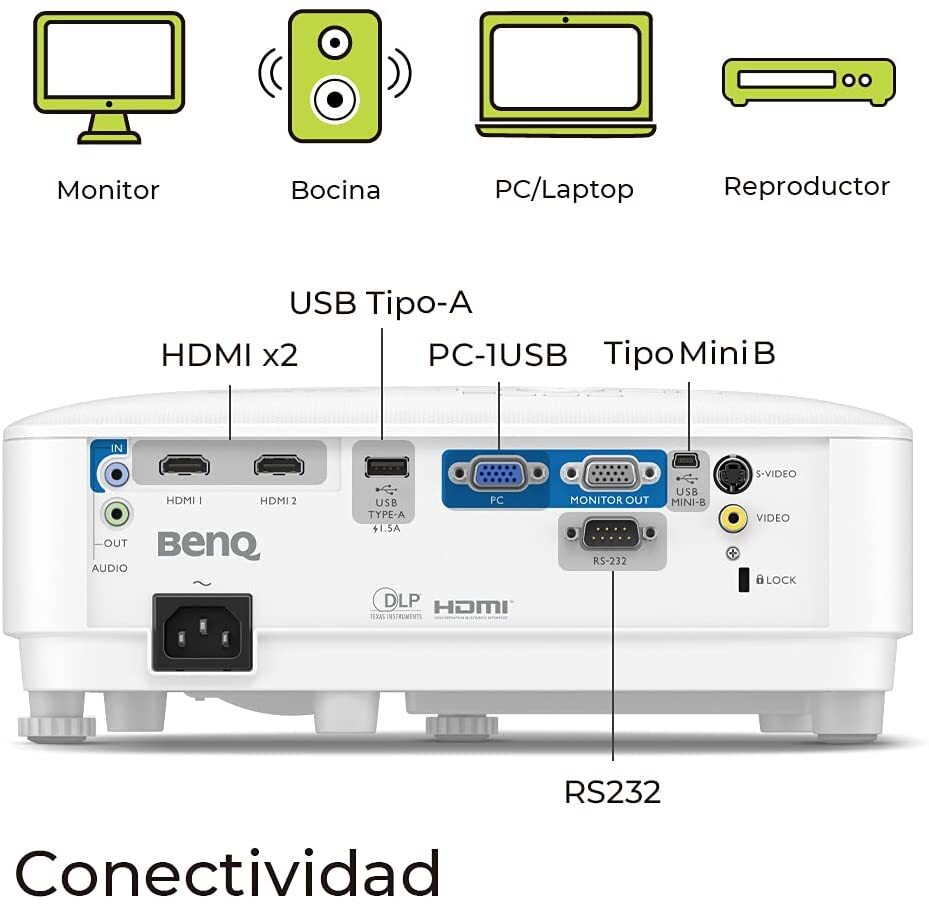

I/O Interface

PC in (D-sub 15pin) (x1)

Monitor out (D-sub 15pi) (x1)

Composite Video in (RCA) (x1)

S-Video in (Mini DIN 4pin) (x1)

HDMI in (x2),HDMI-1 (1.4a/HDCP1.4),HDMI-2 (1.4a/HDCP1.4)

USB Type A (x1)

USB Type Mini B (x1)

RS232 in (DB-9pin) (x1)

Audio

Speaker (x1),10W

Audio out (3.5mm Mini Jack) 1

Audio in (3.5mm Mini Jack) 1

Speaker 10W x 1

Environment

Power Supply

AC 100 to 240 V, 50/60 Hz

Typical Power Consumption (110V)

260W/110V

Acoustic Noise (Typ./Eco.)(dB)

34/29

Operating Temperature

0~40℃

Accessories

Carry Bag

Yes,5J.J3T09.001 (optiol)

Remote Control w/ Battery

RCX016

Power Cord (by region)

x1 (1.8M)

VGA(D-sub 15pin) Cable

(Standard),1 (1.5m)

3D Glasses

(Optional),DGD5

Quick Start Guide

1 (21L)

Warranty Card (by region)

Yes

Universal Ceiling Mount

(Optional),Yes, CMG3

OSD

OSD Language

30L

OSD Language

Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese/ Farsi / Vietnamese/ (30 Languages)

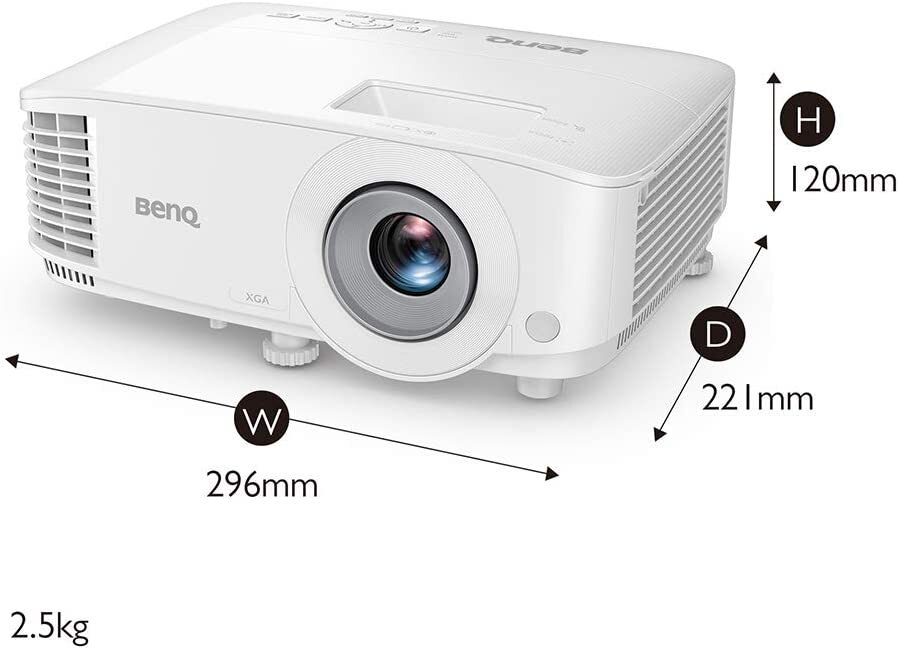

Dimension & Weight

Dimensions (WxHxD) (mm)

296 x120 x221

Net Weight (kg)

2.3

Special Feature

Security

Security Bar, Kensington lock

Feature

1D Auto Keystone, High Brightness, Spreadsheet mode, Bright Mode, Presentation Mode, Infographic Mode, Video Mode, Srgb Mode

Interface

Composite Video in (RCA)

Connectivity

HDMI

HDMI-1 x1
HDMI-2 X1

PC (D-sub 15pin)

Monitor out (D-sub 15pin,Female)

Audio in (mini jack)

Audio out (mini jack)

RS232 In (D-sub 9pin, male)

USB TypeA-1

x1(1.5A power)

USB Type mini B

IR Receiver (Front+Top)

S-Video

Composite Video (RCA)

Power

Power Comsumption(Max/Normal/Eco)

Max 280W, Normal 260W, Eco 215W

Standby Power Comsumption

Normal < 0.5Watts.

Power Supply

100 ~ 240V AC

Dimension and Weight

Net Weight (Kg/ lbs )

2.3kg +/- 200g

Dimensions (W x H x D)(mm)

296 x 120 x 221 mm

Operation Condition

Noise Level(Normal/Eco)

34 /29 dBA

Operating Temperature

0~40℃

Accessories (Standard)

Remote Control w/ Battery

x 1 (5J.JND06.001)

Power Cord

x 1 (1.8m)

Quick Start Guide

x 1 (4J.JND01.001)

Warranty Card (by region)

x 1

VGA Cable

x 1 (1.5m)

AAA Battery

x 2

Accessories (Optional)

Spare Lamp Kit

x 1 (5J.JND05.001)

Universal Ceiling Mount

x 1

3D Glasses

x 1 (5J.J9H25.002)

QCast Mirror dongle

x 1 (5A.JH328.10X)

SKU	PA-BENQMX560
Barcode #	4718755084195
Brand	BenQ
Shipping Weight	3.0000kg
Shipping Width	0.300m
Shipping Height	0.200m
Shipping Length	0.400m
Shipping Cubic	0.024000000m3
