The New XJ-UT311WNBKT is ideal for medium to large classrooms. Casio’s lamp and mercury-free Ultra Short Throw projector can be mounted close to the wall and create large, powerful presentations even in smaller rooms. The main benefit of Ultra Short Throw projection is that it virtually eliminates shadowing on the screen allowing for more creative and engaging presentations. The XJ-UT311WN offers a brightness of 3,100 ANSI lumens – more than enough for even a large, bright classroom or meeting room and features WXGA resolution. This model also comes with a free bracket.

Creative & Engaging

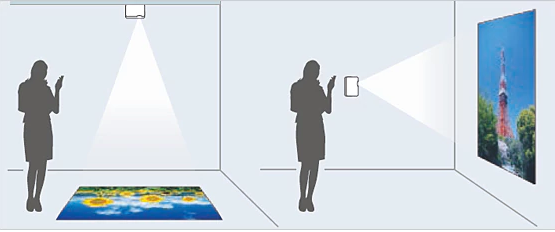

Large-screen projection from wall mount to screen.
This short-throw projector's short-focus lens is capable of projecting a 60-inch screen image from a distance of just 13 cm.
Its brightness of 3100 lumens enables it to project clear images in fully lighted rooms.
The short projection distance eliminates the possibility of either shadows or dazzlingly bright images.

No Lamp Replacement

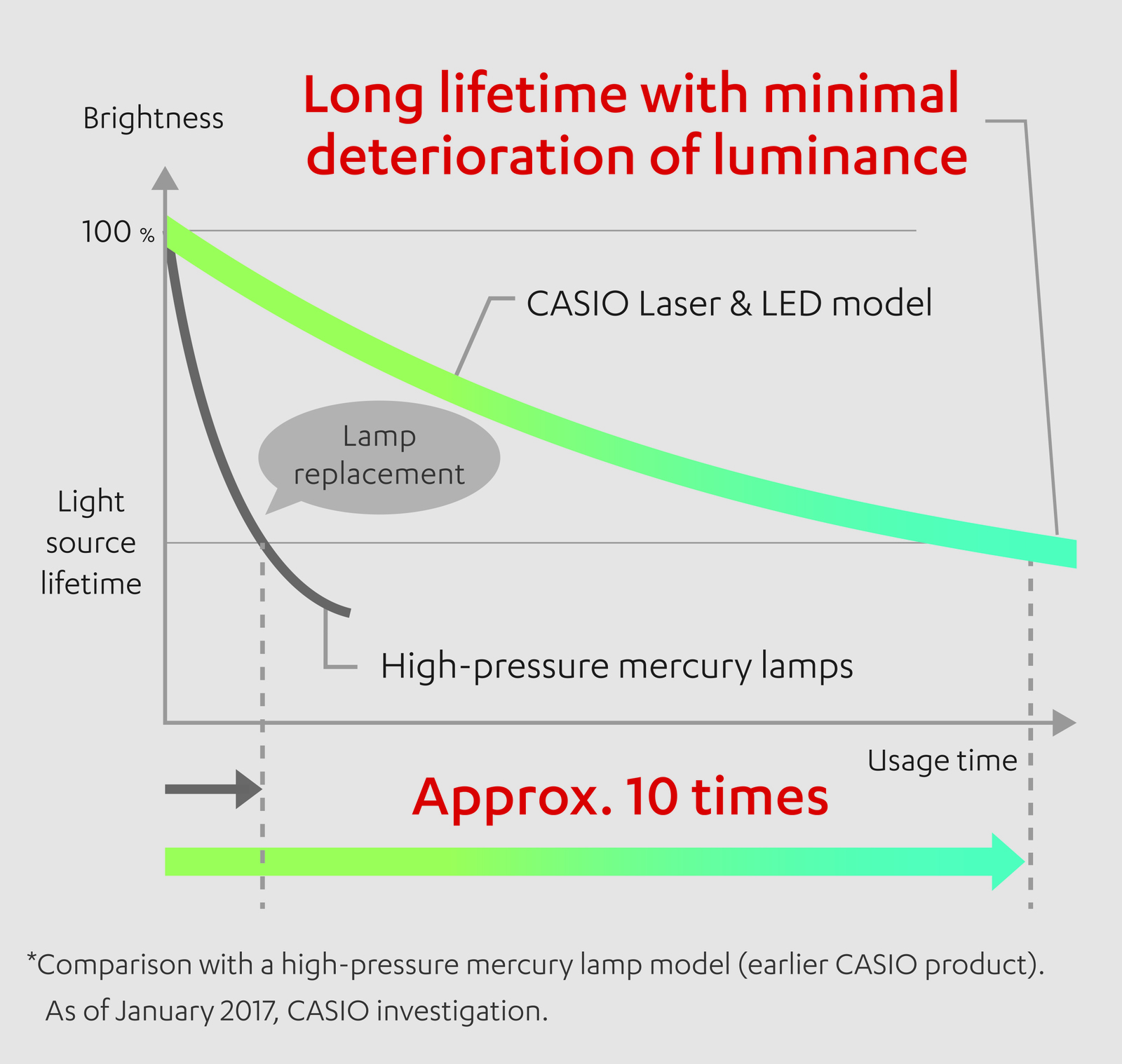

The Long-Life light source provides approximately 20,000 hours of illumination

No Filter Replacement
The dustproof design reduces degradation luminance associated with accumulated dust

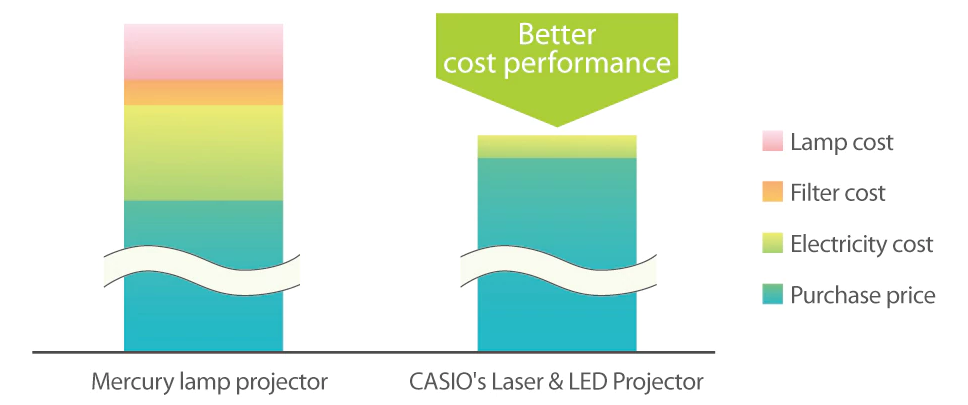

Reduced Energy Requirement
Adoption of the Laser & LED light source has decreased power consumption dramatically compared to high-pressure


Key Features
  • 3100 Lumens
  • Lamp-Free
  • Projects 60-inch from just 13cm away
  • Expanded input/output connectivity
  • High Contrast Ratio of 20,000:1
  • DLP® Technology

LampFree Features
  • Laser & LED Hybrid Light Source
  • Long Life, 20,000 hour estimated operating life
  • No Lamp replacement required
  • No Filters • Less Down Time
  • Low Power Consumption
  • Mercury Free
  • Quick On – (5 seconds to full brightness) • Instant Off – no cool down required


Fan Noise
  37dB (normal)
  WXGA 0.65" DLP Chip
Light Source
  Laser - LED Hybrid
Type Laser & LED Hybrid technology
Life Expectancy
  20,000 Hours
Brightness (ANSI Lumens)
Intelligent Brightness Control
  Available (Auto / Manual)
Contrast Ratio
  20,000 : 1
Native Resolution
  WXGA (1280x800 pixels)
Max Signal Resolution
  1920 x 1200 resizing
Standard Zoom Fixed
Focus Manual
Offset 70%
Projection Ratio 0.28:1
Min. distance 0.06m
Type Fixed Zoom/Manual Focus
Keystone Correction (Vertical)
  Maunual +/- 5º
Screen Size (Diagonally)
  50 - 100 inch
Throwing Distance
60” Screen 0.13m
100” Screen 0.4m
Throw Ratio
  0.28 : 1

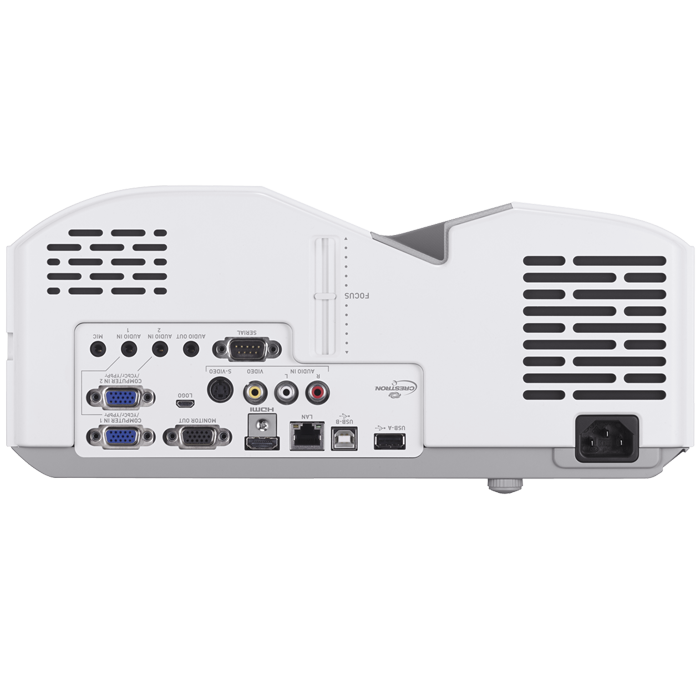

Input 2 x 15-pin RGB mini D-sub
Output 1 x 15-pin RGB mini D-sub
Digital Input
  1 x HDMI type A
  1 x RCA (composite)
Component Video
  YCbCr/YPbPr (Shared with RGB input)
Input 2 x 3.5 mm stereo mini jack
Output 1 x 3.5 mm stereo mini jack
Operating Noise 33 dB (default mode) /28 dB (safe mode)
RS-232C serial
WLAN IEEE 802.11 b/g/n (2.4GHz)
LAN Terminal 1 x RJ45
USB 1 x USB type A
Interactive Pointing No
  16W Monaural
Instant Off
Time To Full Brightness
Max 5 secs
Power Consumption
Eco Off 170W
Eco On Level 1 160W
Standby 0.12W
Dimensions (wxhxd) mm
  338 x 333 x 153
Box Content
  Wireless Remote Control (YT-131), Test Batteries (AAA-SIZE x 2), Power Cable, RGB Cable, Warranty Card, Safety Precautions
Brand Casio
Shipping Weight 6.0000kg
Shipping Width 0.340m
Shipping Height 0.200m
Shipping Length 0.340m
Shipping Cubic 0.023120000m3
