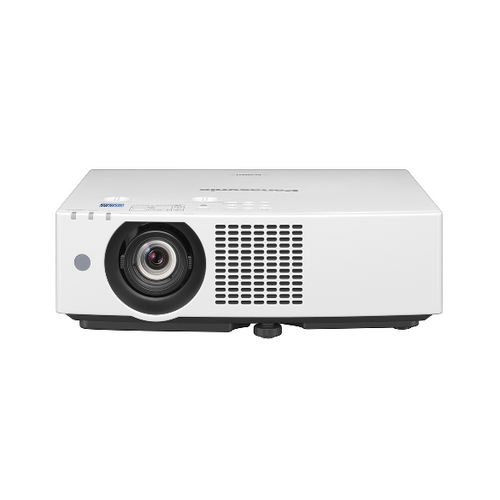

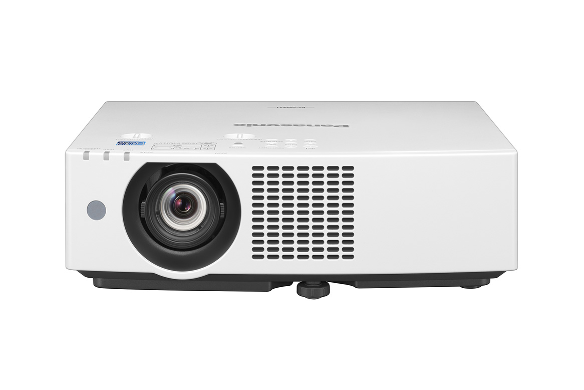

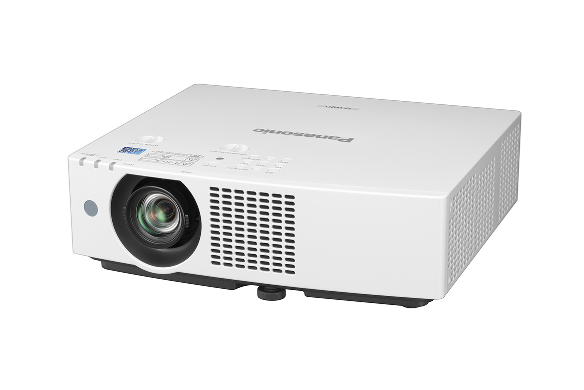

Introducing the PT-VMZ61 WUXGA 3LCD Portable Laser Projector, a breakthrough in projection technology and the smallest, lightest LCD laser projector in its class. Designed for versatility and performance, this projector is the ideal choice for dynamic presentations in classrooms, meeting spaces, and open environments where quality and clarity cannot be compromised.

Key Features:

  1. Compact and Lightweight: Revolutionize your presentation experience with the PT-VMZ61, the epitome of portability and convenience in laser projection.
  2. Clear Images in Bright Rooms: With a high brightness level of 7,000 lumens and a striking contrast ratio of 3,000,000:1, this projector delivers vivid, sharp images that remain clear and distinct even in well-lit spaces.
  3. Installation Flexibility: Adaptable to any space, the projector boasts a 1.6x manual zoom, manual focus lens, and both vertical and horizontal lens shift, offering unparalleled installation versatility.
  4. Smooth Collaboration: Enhance your meetings with smooth and effortless collaboration, thanks to the projector's advanced connectivity and easy setup.

Product Specifications:

  • Type: LCD Projectors
  • Panel Size: 16.3 mm (0.64 in) diagonal, 16:10 aspect ratio
  • Resolution: WUXGA (1920 x 1200 pixels)
  • Light Source: Laser diode
  • Light Output: 6,200 lm
  • Contrast Ratio: 3,000,000:1 (Dynamic Mode)
  • Screen Size: 0.76–7.62 m (30–300 in), 16:10 aspect ratio
  • Lens: 1.6x manual zoom, F 1.60–2.12, f 15.30–24.64 mm
  • Lens Shift: Vertical +44%, Horizontal ±20% (manual)
  • Keystone Correction: Vertical: ±25°, Horizontal: ±35°
  • Connectivity: HDMI, LAN, Digital Link, USB, Audio In/Out, Serial In
  • Built-in Speaker: 10 W monaural
  • Noise Level: 36 dB (Normal/Eco), 26 dB (Quiet)
  • Dimensions: 399 x 115 x 348 mm (15 23/32˝ x 4 17/32˝ x 13 11/16˝)
  • Weight: Approx. 6.9 kg (15.21 lbs)

Innovative Technology:
The PT-VMZ61 integrates cutting-edge laser technology, offering consistent brightness and a long-lasting light source for uninterrupted presentations. The high resolution ensures crisp and clear visuals, while the extensive connectivity options make it easy to collaborate and share content.

Ideal for educational institutions and businesses, this projector transforms any space into an interactive and engaging environment. Its eco-friendly design and quiet operation make it a conscientious choice for any setting.

Experience the future of projection with the PT-VMZ61 WUXGA 3LCD Portable Laser Projector, where clarity meets convenience and technology meets innovation.


Projector type LCD projectors
LCD panel | Panel size 16.3 mm (0.64 in) diagonal (16:10 aspect ratio)
LCD panel | Pixels 2,304,000 (1920 x 1200) pixels
Light source Laser diode
Light Output*1 *2 6,200 lm
Time until light output declines to 50 %*3 20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)
Resolution WUXGA (1920 x 1200 pixels)
Contrast Ratio*1 3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)
Screen Size (Diagonal) 0.76–7.62 m (30–300 in), 16:10 aspect ratio
Center-to-corner zone ratio*1 85 %
LENS 1.6x manual zoom (throw ratio: 1.09–1.77:1), manual focus lens, F 1.60–2.12, f 15.30–24.64 mm
Lens shift | Vertical (from center of screen) +44 %, 0 % (manual)
Lens shift | Horizontal (from center of screen) +20 %, -20 % (manual)
Keystone correction range Vertical: ±25 °, Horizontal: ±35 °

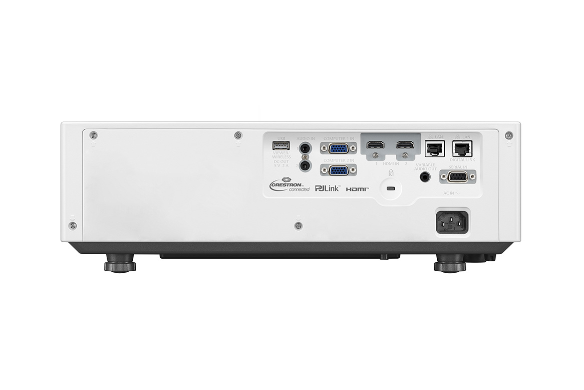

Terminals | COMPUTER 1 IN D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
Terminals | Computer 2 In D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
Terminals | AUDIO 1/2 IN M3 stereo mini-jack x 2
Terminals | VARIABLE AUDIO OUT M3 stereo mini-jack x 1
Terminals | SERIAL IN D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)
Terminals | DIGITAL LINK/LAN RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], HDCP, Deep Color, 4K/30p*6 signal input)
Terminals | LAN RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink™ [Class 2]
Terminals | USB(VIEWER/WIRELESS/DC OUT) USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A*7 )
Power supply AC 100 V–240 V, 50/60 Hz
Built in speaker 10 W monaural
Cabinet materials Molded plastic
Operation noise*1 36 dB (NORMAL/ECO), 26 dB (QUIET)
Dimensions (W x H x D) 399 mm x 115 mm x 348 mm (15 23/32˝ x 4 17/32˝ x 13 11/16˝ ) (not including protruding parts) 399 mm x 133 mm x 348 mm (15 23/32˝ x 5 1/4˝ x 13 11/16˝ ) (with feet at shortest position)
Operating environment Operating temperature: 0–45 °C (32–113 °F)*11,*12 , Operating humidity: 20–80 % (no condensation)
Applicable software Multi Monitoring & Control Software, Logo Transfer Software, Presenter Light Software for Windows®*13, Wireless Projector App for iOS/Android™*14
Note Note: Availability varies by country or region. *1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped. *2 When [PICTURE MODE] is set to [DYNAMIC], [LIGHT POWER] is set to [NORMAL], [DAYLIGHT VIEW] is set to [OFF], and [AUTO POWER SAVE] is set to [OFF]. *3 Around this time, light output will have decreased to approximately 50 % of its original level ([PICTURE MODE]: [DYNAMIC], [DYNAMIC CONTRAST] set to [2], temperature 30 °C (86 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of particulate matter). Estimated time until light output declines to 50 % varies depending on environment. *4 Resolution decreases when using this function. 6-Point Screen Correction, V/H Keystone Correction, and curved-screen correction are not available when using this function, and range of corner adjustment is limited. *5 When Digital Zoom Extender is set to 80%. *6 4K signals are converted to the projector's resolution upon projection. *7 On standby, power supply is available with Quick Startup set to ON or Power Management set to Ready. *8 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. On-mode power consumption measured at 25 °C (77 °F) operating temperature at an altitude of 700 m (2,297 ft). *9 Filter cleaning cycle varies depending on environment. Filter can be washed and reused up to two times. Filter cleaning cycle: 20,000 hours (under dust conditions of 0.08 mg/m3 ), 10,000 hours (under dust conditions of 0.15 mg/m3 ). *10 Average value. May differ depending on the actual unit. *11 Light output is limited at operating temperatures higher than 30 °C (86 °F), and projectors cannot be operated at altitudes higher than 2,700 m (8,858 ft) above sea level. *12 When optional AJ-WM50 Series wireless module is attached, operating temperature range becomes 0–40 °C (32–104 °F). *13 When using Presenter Light Software, images are projected with 1280 x 800 dots or 1024 x 768 dots onto the screen. Also, your PC display resolution may be forcibly changed, and audio playback disrupted or become noisy, while images and sound are being transmitted. *14 When using the Wireless Projector app, display resolution differs depending on your iOS/Android™ device and the display device. The maximum supported display resolution is WXGA (1280 x 800)
Digital Zoom Extender *4 Throw ratio 1.09–2.21:15
(Corresponding value. When used together with optical zoom.)
Terminals | HDMI 1/2 IN HDMI 19-pin x 2 (Compatible with HDCP, Deep Color, 4K/30p6
signal input), CEC supported
Power consumption*8 | Maximum power consumption 370 W (3.9–1.7 A) (395 VA) (Power consumption is 360 W at 200–240 V)
Power consumption*8 | On-mode power consumption (Light Power)[Normal] 335 W (100–120 V), 320 W (200–240 V)
Power consumption*8 | On-mode power consumption (Light Power)[Eco] 240 W (100–120 V), 230 W (200–240 V)
Power consumption*8 | On-mode power consumption (Light Power)[Quiet] 235 W (100–120 V), 225 W (200–240 V)
Filter*9 Included (Estimated maintenance time: approx. 20,000 hours)
Weight with supplied lens*10 Approx. 6.9 kg (15.21 lbs)
Barcode # 5025232923304
Brand Panasonic
Shipping Weight 8.0000kg
Shipping Width 0.300m
Shipping Height 0.500m
Shipping Length 0.400m
Shipping Cubic 0.060000000m3
